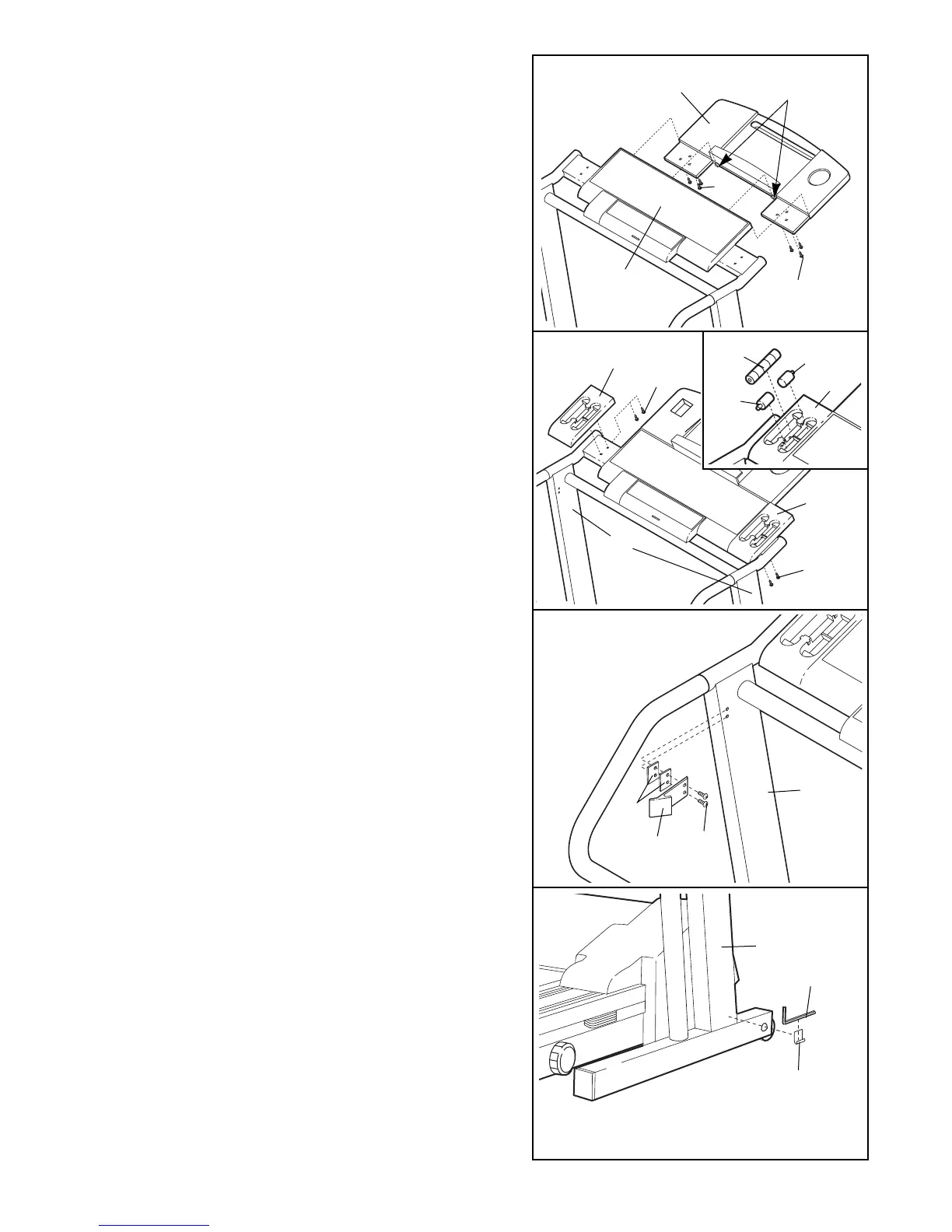

5. Attach a Weight Rack (112) to each Upright (70) with two
Screws (43) as shown.
Refer to the inset drawing. Insert a 2-lb. Handle (115) and
two 1-lb. Weights (114) into each Weight Rack (112).
7. Remove the backing from the Wrench Clip (88). Press the
Wrench Clip onto the Upright (70) in the indicated location.
Press the Allen Wrench (87) into the Wrench Clip
8. Make sure that all parts of the treadmill are properly
tightened. Place a mat beneath the treadmill to
protect the floor or carpet.
70
5
93
7
12
Tabs
43
43
78
4
6. Remove the two indicated Screws (43) from the left Upright
(70).
Attach the Storage Latch (5) and the two Latch Spacers
(93) to the left Upright (70) with the two Screws (43). Be
careful not to overtighten the Screws.
Note: If it is difficult to fold or lower the treadmill,
remove one or both of the Latch Spacers (93).
70
112
112
6
5
4. Locate the two tabs on the Reading Rack (12). Slide the
tabs up into the two slots in the front of the Console (78).
Attach the Reading Rack to the Console with the six
Screws (43).
7
43
43
43
88
70
87
115
114
114
112
