NordicTrack A.C.T. NTCW90907.1 User Manual

9

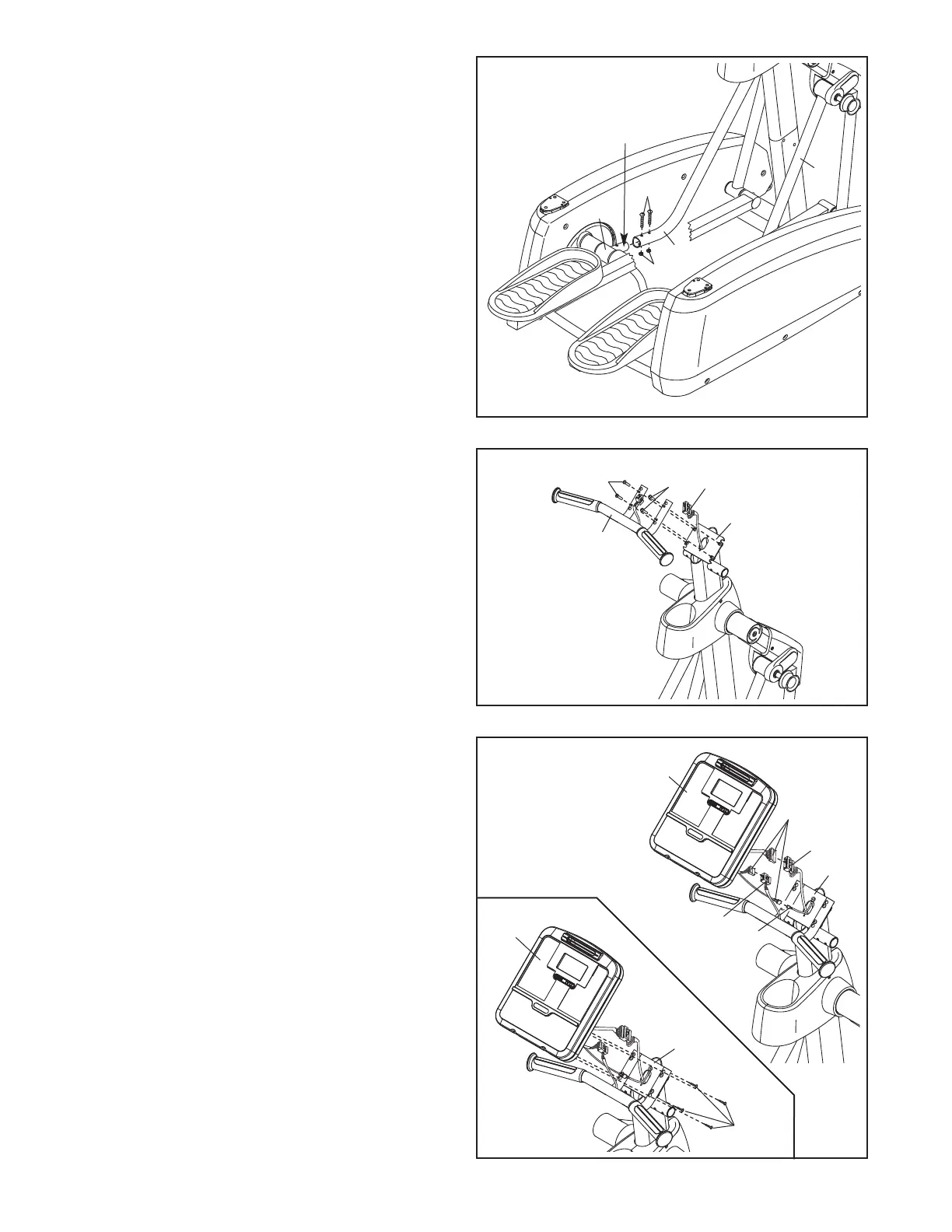

7. Apply a small amount of grease to the axle of
the left Pedal Arm Bracket (43). Attach the left
Pedal Leg (8) to the left Pedal Arm Bracket with
t
wo M8 x 45mm Button Bolts (70) and two M8
Nylon Locknuts (63).
Attach the right Pedal Leg (8) in the same
way.
7
43
8
7
0
63
Grease
8
8. Tip: Avoid pinching the Upper Wire Harness
(81) during this step. Attach the Handlebar
(90) to the Upright (2) with four M6 x 32mm
Patch Screws (96).
8
2
81
90
96
96
9. While a second person holds the Console (3)
near the Upright (2), connect the three wires on
the console to the Upper Wire Harness (81), to
the Pulse Wire (92), and to the Ground Wire
(97). Insert the excess wire into the Upright.
Tip: Avoid pinching the wires during this
step. See the inset drawing. Attach the
Console (3) to the Upright (2) with four M4 x
16mm Round Head Screws (95).
9
3
3
2
Avoid pinching
the wires during
this step
2
97
81
Wires
92
95
