11
93
85
8

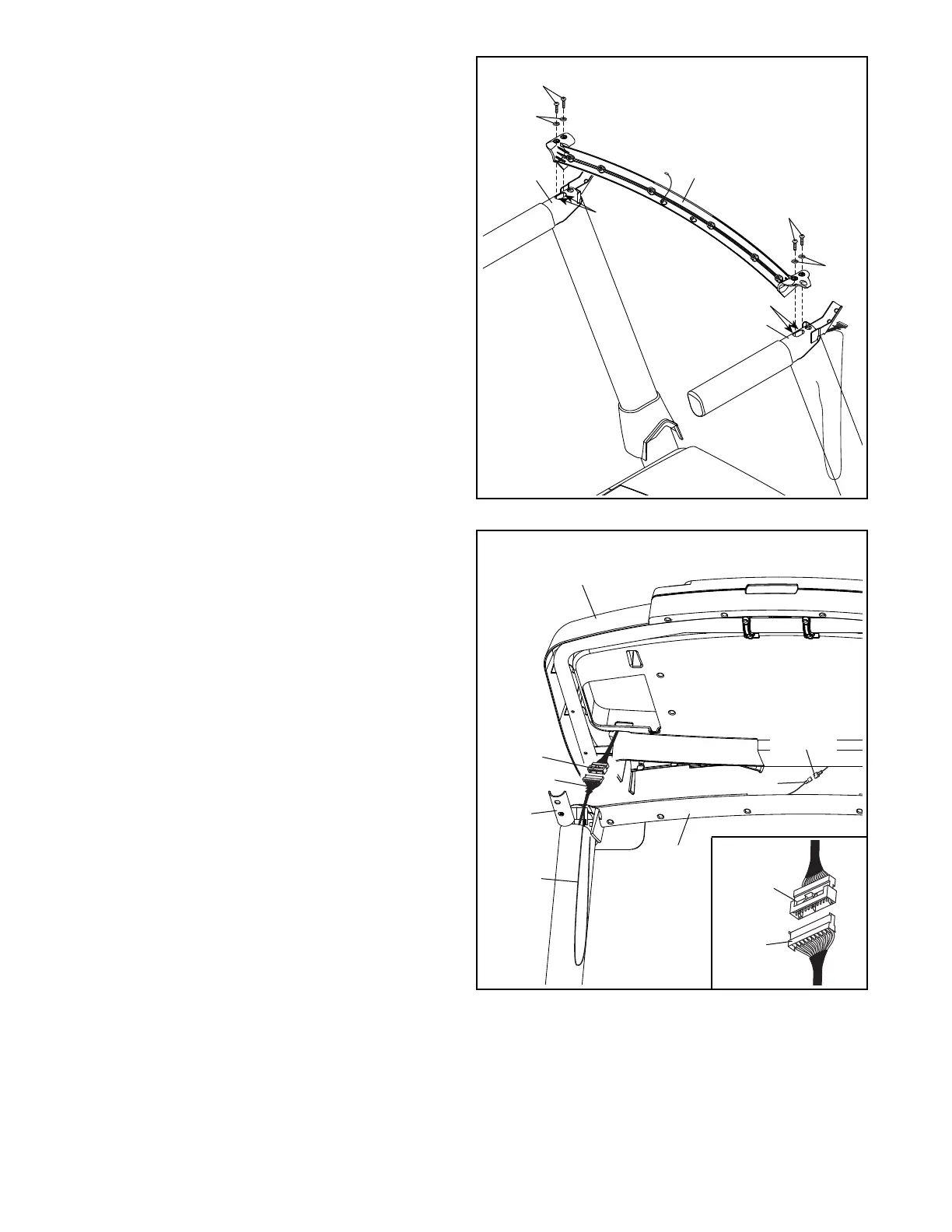

8. If there are four screws (C) preattached inside
the Handrails (84, 85), remove and discard the
screws.
IMPORTANT: To avoid damaging the Pulse
Crossbar (93), do not use power tools and do
not overtighten the #10 x 1 1/4" Screws (9).
Orient the Pulse Crossbar (93) as shown.
Attach the Pulse Crossbar to the Right and Left
Handrails (84, 85) with four #10 x 1 1/4" Screws
(9) and four #10 Star Washers (5); start all four
Screws, and then tighten them.
9. With the help of a second person, hold the con-
sole assembly near the Right Handrail (84) and
the Left Handrail (not shown).
Connect the ground wire from the console
assembly to the Console Ground Wire (58) on
the Pulse Crossbar (93).
See the inset drawing. Connect the Upright
Wire (81) to the console wire. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
9
Console
Assembly
81
58
Wire
Tie
Console
Wire
Console
Wire
81
84
Ground
Wire
93
9
9
5
5
84
C
C
To Next Page
