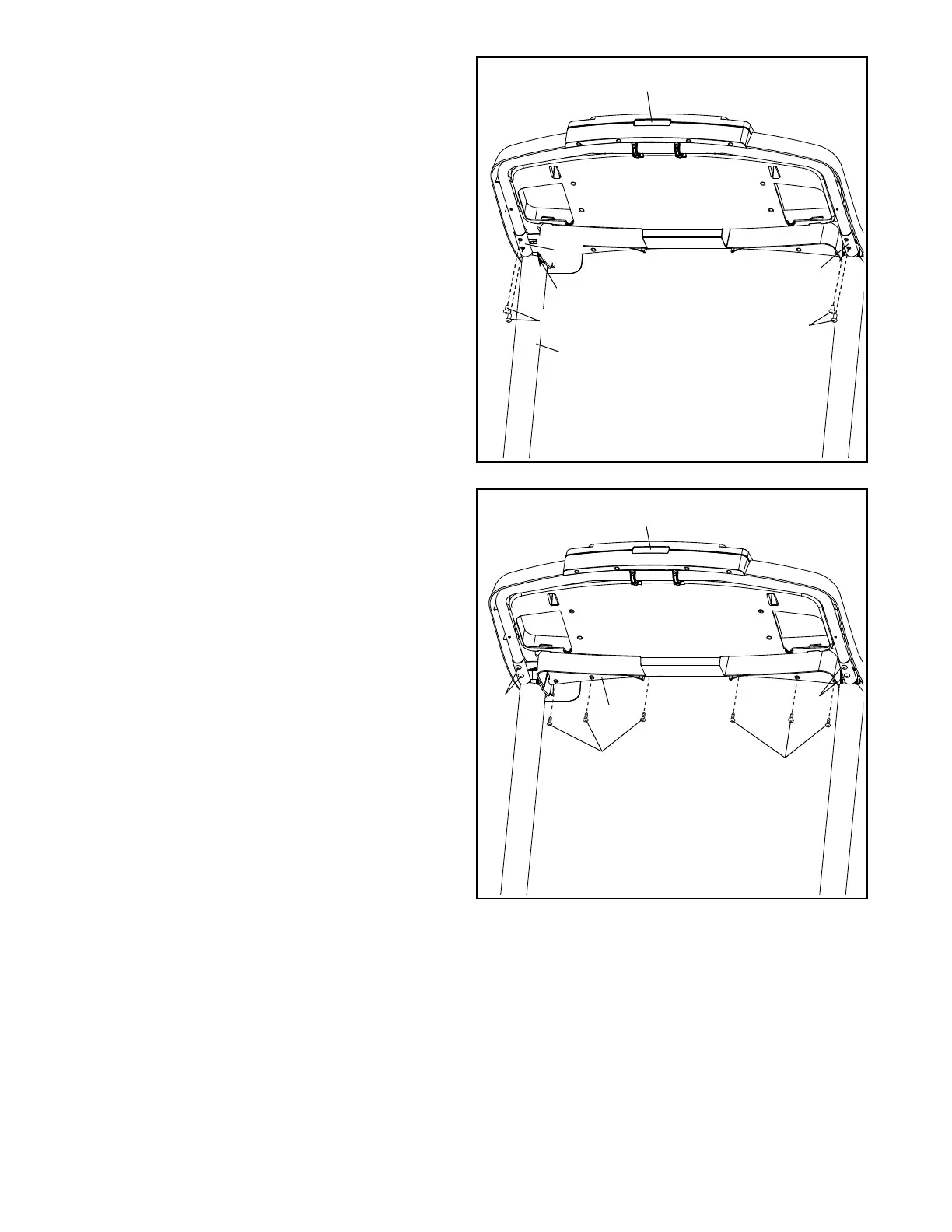

10. Set the console assembly on the Right and Left
Handrails (84, 85). Make sure that no wires
are pinched. Insert the excess Upright Wire (81)
into the Right Upright (90).
Attach the console assembly to the brackets
on the Handrails (84, 85) with four 1/4" x 1/2"
Screws (4); do not tighten the Screws yet.
11. Attach the Pulse Crossbar (93) to the console
assembly with six #8 x 1/2" Screws (1); start all
six Screws, and then tighten them.
Firmly tighten the four 1/4" x 1/2" Screws (4).
10
11
90
Console Assembly
Console Assembly
4
4
4
4
81
85
93
1
1
84
To Next Page
