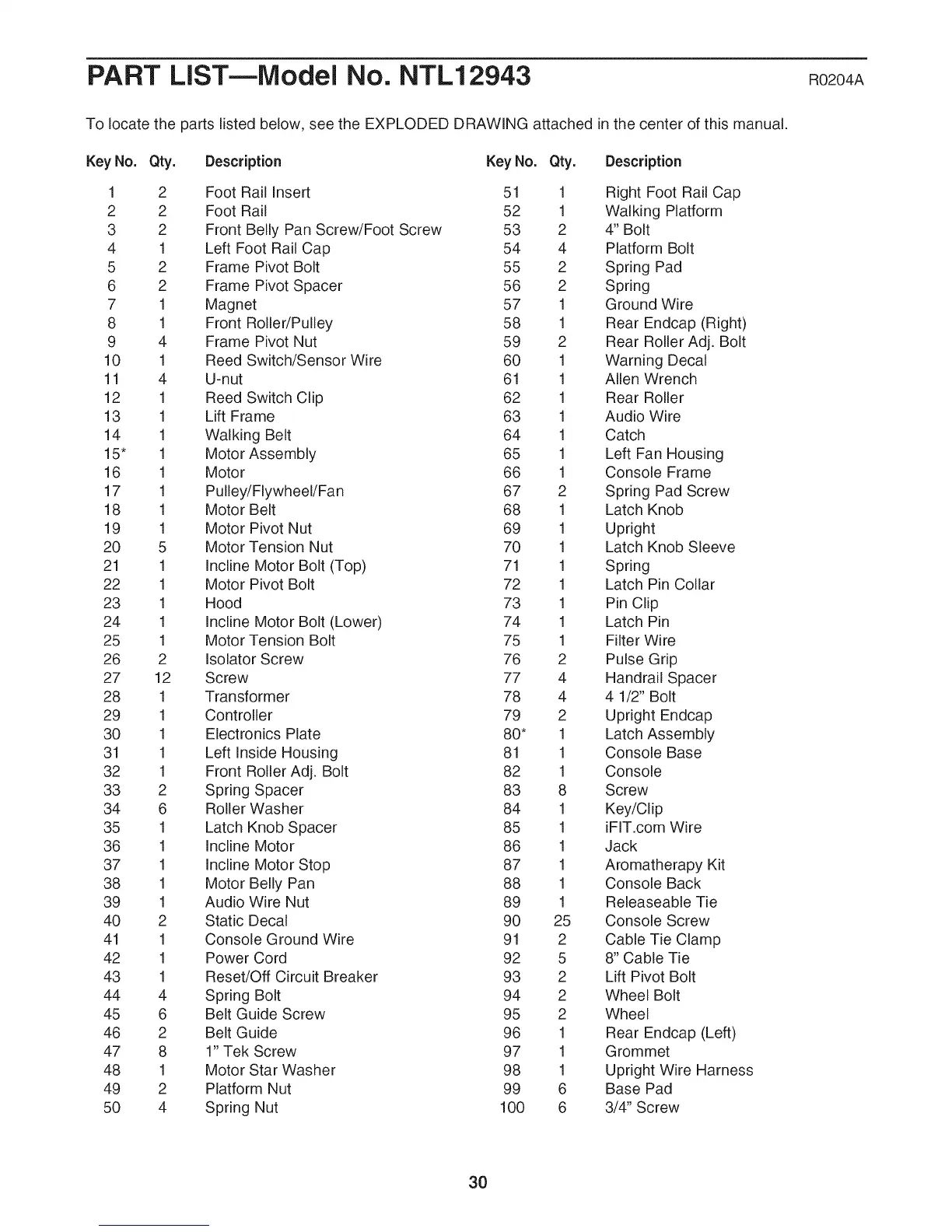

PART LiST--Model No. NTL12943 R0204A
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
Key No. Qty. Description Key No. Qty. Description
1 2 Foot Rail Insert 51 1 Right Foot Rail Cap
2 2 Foot Rail 52 1 Walking Platform
3 2 Front Belly Pan Screw/Foot Screw 53 2 4" Bolt
4 1 Left Foot Rail Cap 54 4 Platform Bolt
5 2 Frame Pivot Bolt 55 2 Spring Pad
6 2 Frame Pivot Spacer 56 2 Spring
7 1 Magnet 57 1 Ground Wire
8 1 Front Roller/Pulley 58 1 Rear Endcap (Right)
9 4 Frame Pivot Nut 59 2 Rear Roller Adj. Bolt
10 1 Reed Switch/Sensor Wire 60 1 Warning Decal
11 4 U-nut 61 1 Allen Wrench
12 1 Reed Switch Clip 62 1 Rear Roller
13 1 Lift Frame 63 1 Audio Wire
14 1 Walking Belt 64 1 Catch
15" 1 Motor Assembly 65 1 Left Fan Housing
16 1 Motor 66 1 Console Frame
17 1 Pulley/Flywheel/Fan 67 2 Spring Pad Screw
18 1 Motor Belt 68 1 Latch Knob
19 1 Motor Pivot Nut 69 1 Upright
20 5 Motor Tension Nut 70 1 Latch Knob Sleeve
21 1 Incline Motor Bolt (Top) 71 1 Spring
22 1 Motor Pivot Bolt 72 1 Latch Pin Collar
23 1 Hood 73 1 Pin Clip
24 1 Incline Motor Bolt (Lower) 74 1 Latch Pin
25 1 Motor Tension Bolt 75 1 Filter Wire
26 2 Isolator Screw 76 2 Pulse Grip
27 12 Screw 77 4 Handrail Spacer
28 1 Transformer 78 4 4 1/2" Bolt
29 1 Controller 79 2 Upright Endcap
30 1 Electronics Plate 80* 1 Latch Assembly
31 1 Left Inside Housing 81 1 Console Base
32 1 Front Roller Adj. Bolt 82 1 Console
33 2 Spring Spacer 83 8 Screw
34 6 Roller Washer 84 1 Key/Clip
35 1 Latch Knob Spacer 85 1 iFIT.com Wire
36 1 Incline Motor 86 1 Jack
37 1 Incline Motor Stop 87 1 Aromatherapy Kit
38 1 Motor Belly Pan 88 1 Console Back
39 1 Audio Wire Nut 89 1 Releaseable Tie
40 2 Static Decal 90 25 Console Screw
41 1 Console Ground Wire 91 2 Cable Tie Clamp
42 1 Power Cord 92 5 8" Cable Tie
43 1 Reset/Off Circuit Breaker 93 2 Lift Pivot Bolt
44 4 Spring Bolt 94 2 Wheel Bolt
45 6 Belt Guide Screw 95 2 Wheel
46 2 Belt Guide 96 1 Rear Endcap (Left)
47 8 1" Tek Screw 97 1 Grommet
48 1 Motor Star Washer 98 1 Upright Wire Harness
49 2 Platform Nut 99 6 Base Pad
50 4 Spring Nut 100 6 3/4" Screw
3O
