14

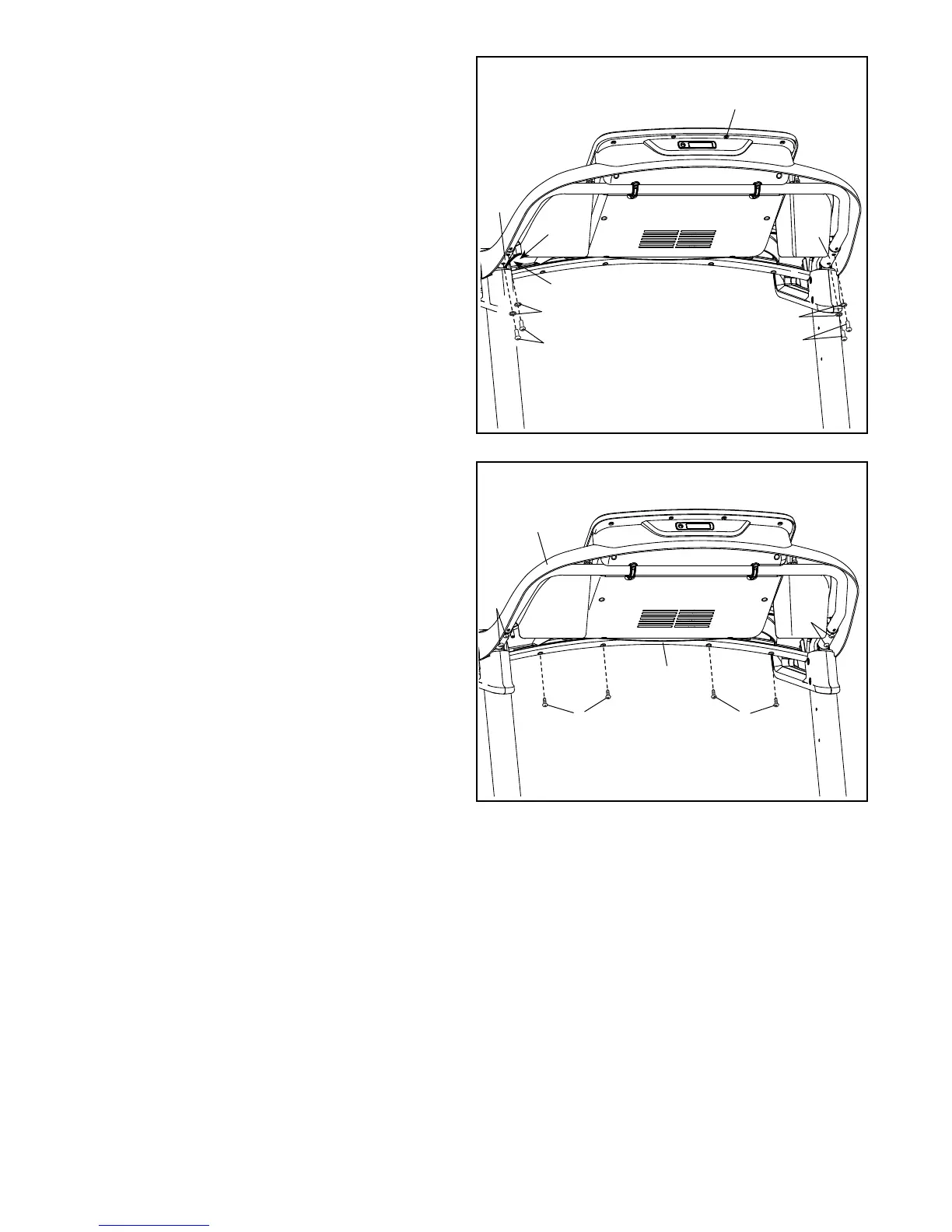

14. Set the console assembly on the brackets on
the Handrails (86). Make sure not to pinch any
wires.
Attach the console assembly to the brackets
on the Handrails (86) with the four 5/16" x 3/4"
Screws (4) that you removed in step 10 and four
5/16" Star Washers (11); do not fully tighten
the Screws yet.
Insert the excess Upright Wire (81) into the
console assembly. Then, pull the two ties tight
against the Upright Wire, and cut off the ends of
the ties.
14
86
Console
Assembly
4
4
81
Ties
86
11
11
15. Attach the Pulse Crossbar (93) to the console
assembly with four #8 x 1/2" Screws (1); start all
four Screws, and then tighten them.
Then, firmly tighten the four 5/16" x 3/4"
Screws (4).
15
93
Console
Assembly
4
4
1 1
To Next Page
