Avoid pinching
the wires
7

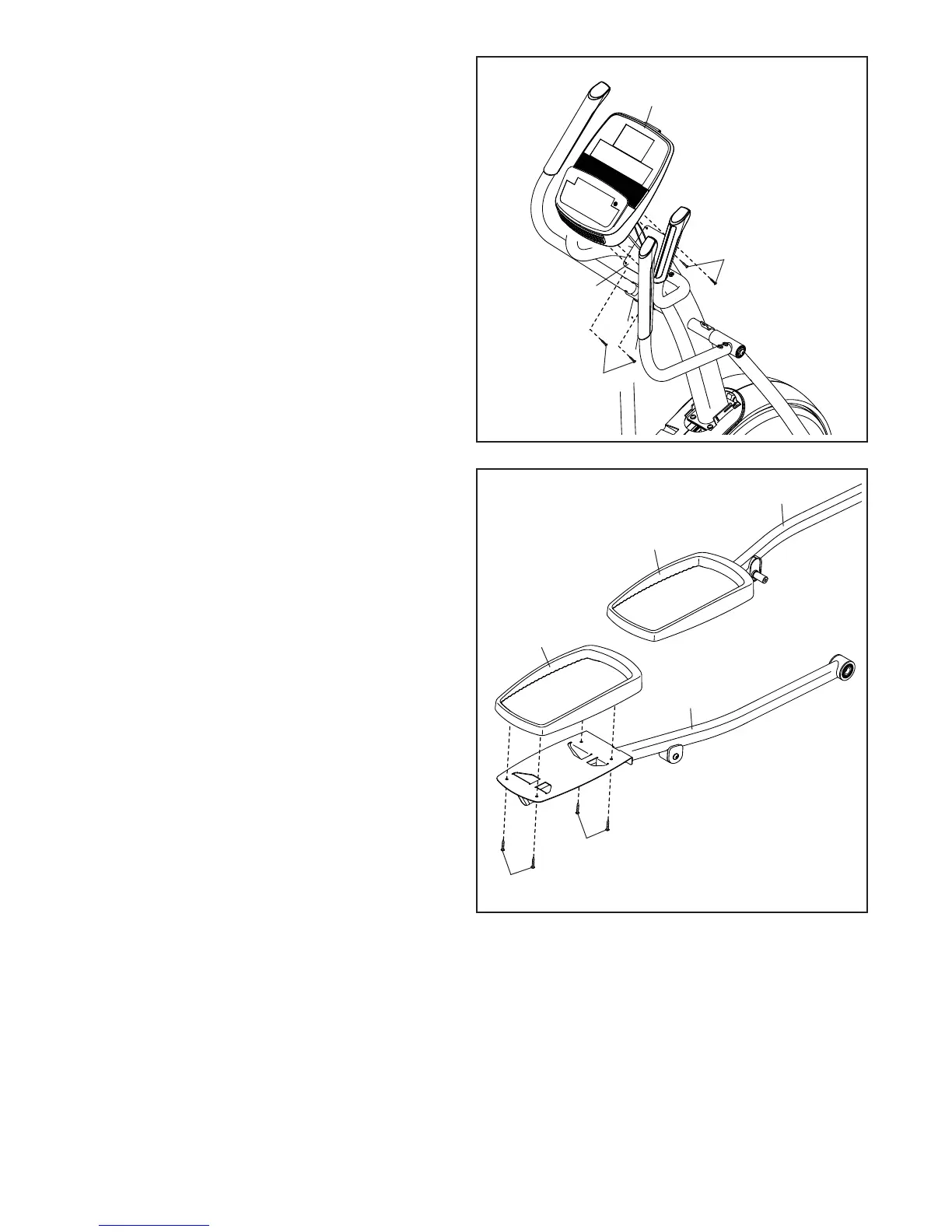

10. Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four M4 x
16mm Screws (101).
101
49
44
49
58
103
103
101
4
11. Identify the Right Pedal Arm (58) and orient it as
shown.
Attach a Pedal (49) to the Right Pedal Arm (58)
with four M6 x 12mm Screws (103).
Repeat this step for the Left Pedal Arm (44)
and the other Pedal (49).
