14. Note: If you purchase the optional chest
heart rate monitor (see page 25), see
step 21 on page 16 to install the receiver
included with the heart rate monitor.

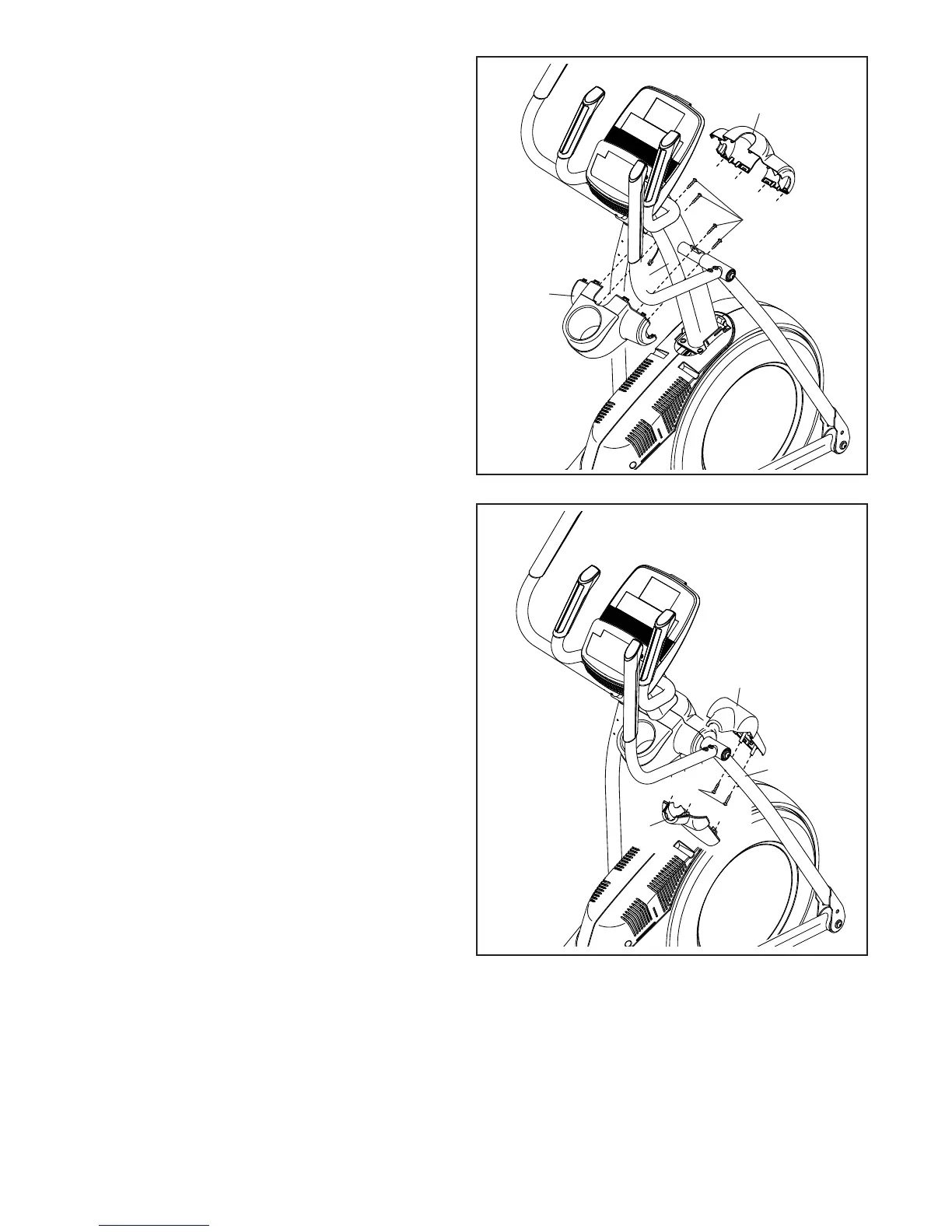

Orient the Rear Upright Cover (81) as shown.
Attach the Rear Upright Cover (81) to the Upright
(4) with four M4 x 16mm Screws (101).
Orient the Front Upright Cover (117) as shown.
Attach the Front Upright Cover (117) around
the Upright (4) by pressing the hooks on the
Rear Upright Cover (81) onto the tabs on the
Front Upright Cover.
15. Identify the Right Upper Body Arm Front Cover
(65) and orient it as shown.
Attach the Right Upper Body Arm Front Cover
(65) to the Right Upper Body Leg (60) with two
M4 x 16mm Screws (101).
Identify the Right Upper Body Arm Rear Cover
(66) and orient it as shown.
Attach the Right Upper Body Arm Rear Cover
(66) around the Right Upper Body Leg (60) by
pressing the hooks on the Right Upper Body Arm
Rear Cover onto the tabs on the Right Upper
Body Arm Front Cover (65).
Repeat this step on the other side of the
elliptical.
101
81
65
60
101
117
66
4
