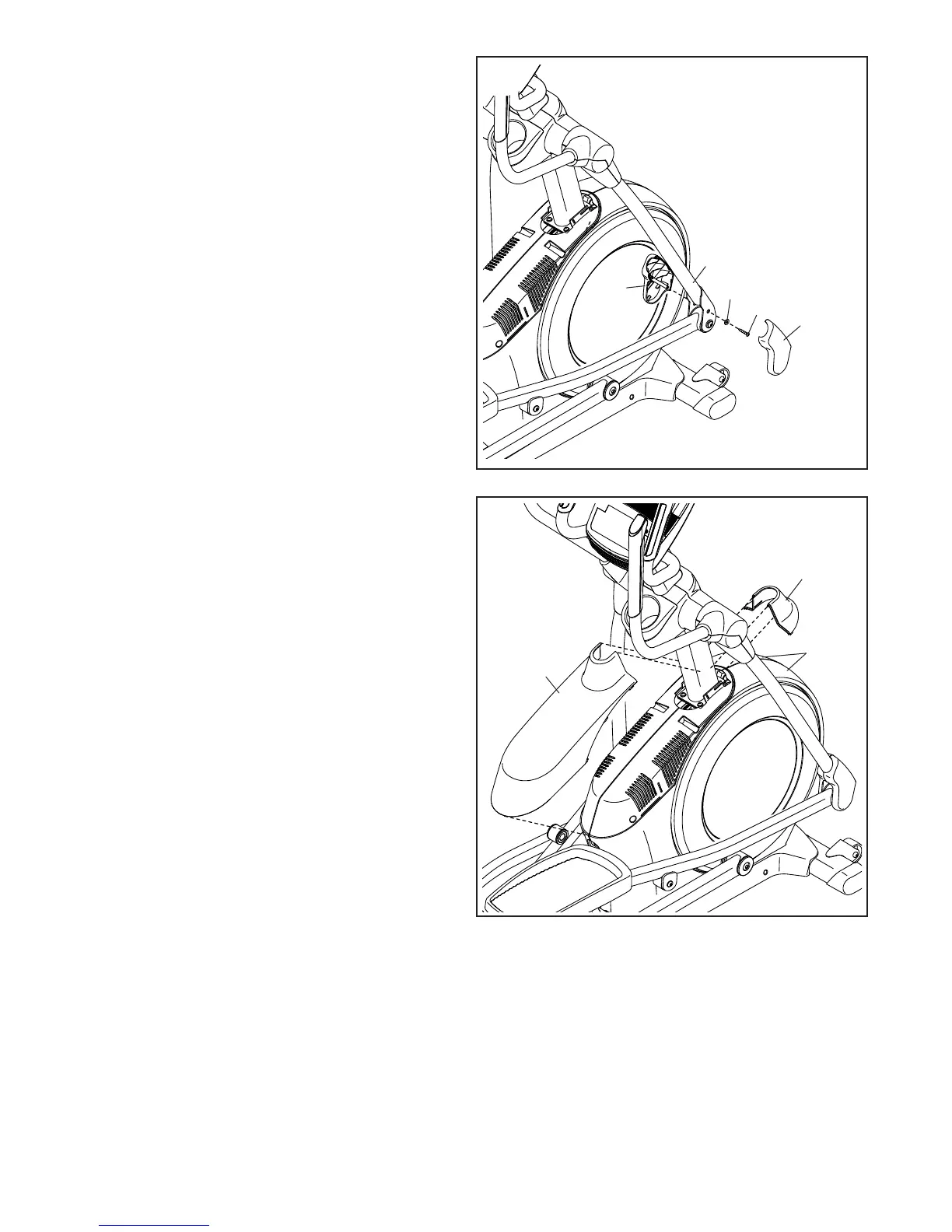

16. Identify the Right Upper Body Leg Inner Cover
(83) and orient it as shown.
Attach the Right Upper Body Leg Inner
Cover (83) to the Right Upper Body Leg (60)
with an M4 x 16mm Screw (101) and an M5
Washer (32).
Identify the Right Upper Leg Outer Cover (69)
and orient it as shown.
Attach the Right Upper Leg Outer Cover (69)
around the Right Upper Body Leg (60) by press-
ing the hooks on the Right Upper Body Leg Inner
Cover (83) onto the tabs on the Right Upper Leg
Outer Cover.
Repeat this step on the other side of the
elliptical.
60
83
75
118
73, 74
32
101
69
16
17. Orient the Shield Cover Cap (118) and the Shield
Cover (75) as shown.
First, press the tabs on the Shield Cover Cap
(118) into the Left and Right Shields (73, 74).
Then, press the tabs on the Shield Cover (75)
into the Left and Right Shields (73, 74).
