NordicTrack E 7.2 Elliptical User Manual

9
7
6

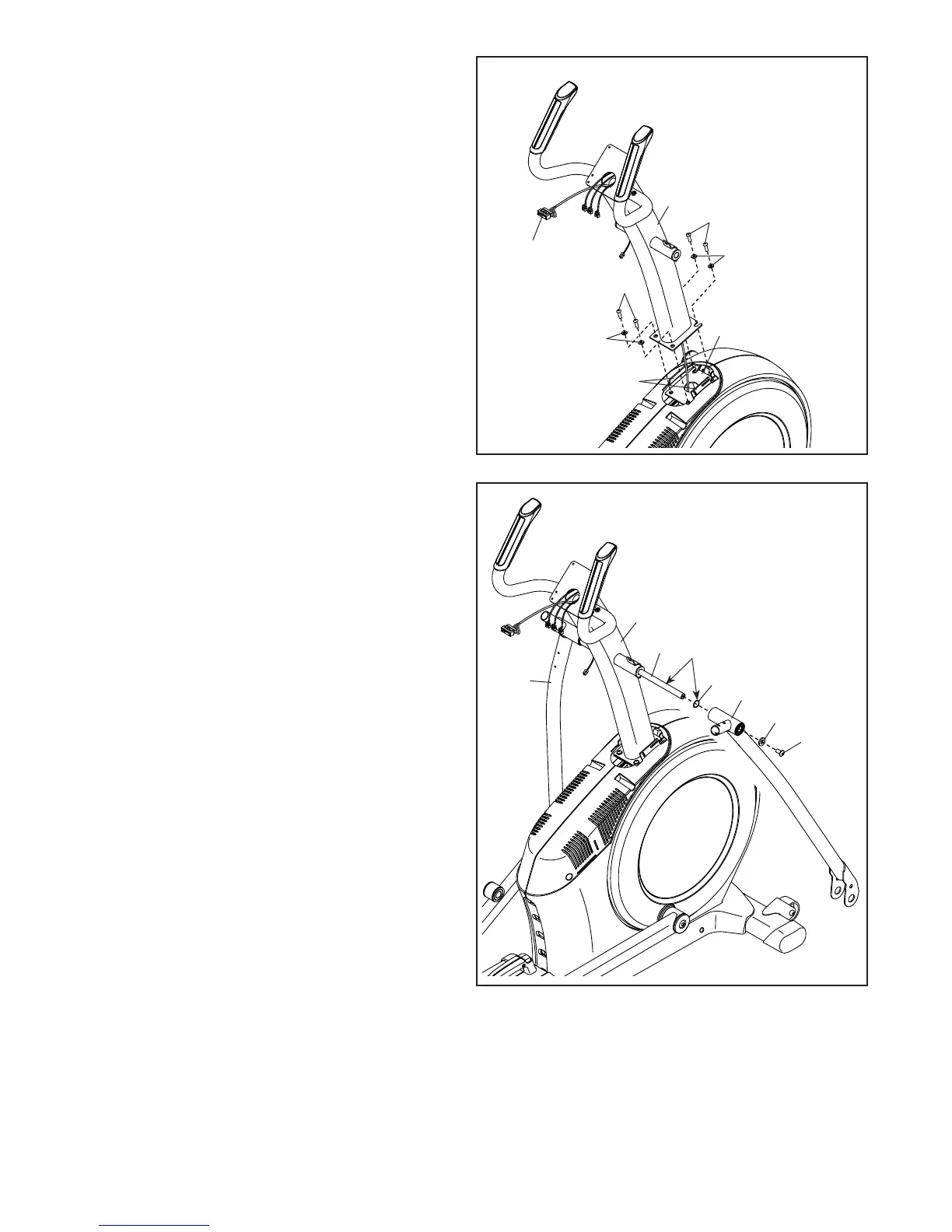

6. Tip: Avoid pinching the Upper Wire (110).
Avoid damaging the indicated plastic tabs.
Set the Upright (4) on the Frame (1).
Attach the Upright (4) with four M10 x 25mm
Screws (92) and four M10 Split Washers (105).
Avoid pinching the Upper
Wire (110) and avoid
damaging the tabs
Tabs
4
1
105
105
92
92
110
7. Using a plastic bag to keep your fingers clean,
apply some of the included grease to the Pivot
Axle (35) and to two 16mm Wave Washers (54).
Insert the Pivot Axle (35) through the Upright (4)
and center it. Tip: It may be helpful to use a
rubber mallet.
Identify the Right Upper Body Leg (60) and ori-
ent it as shown.
Slide a 16mm Wave Washer (54) and the Right
Upper Body Leg (60) onto the right side of the
Pivot Axle (35).
Repeat these actions for the Left Upper Body
Leg (46).
Tighten an M8 x 13mm Screw (82) and an M8
Washer (97) into each end of the Pivot Axle (35)
at the same time.
60
54
46
82
97
35
4
Grease
