10

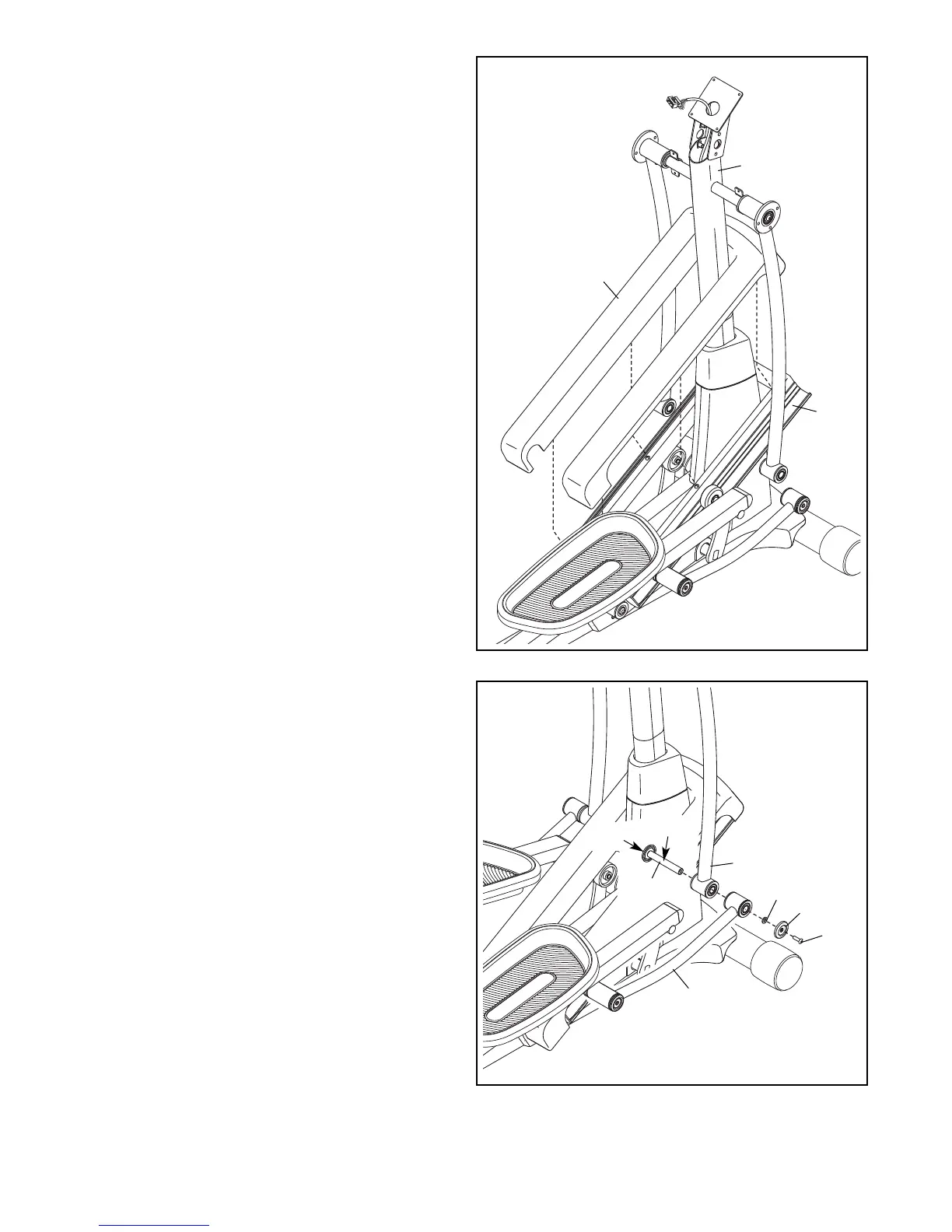

10. Apply grease to a Link Arm Axle (114).
Insert the Link Arm Axle (114) into the Right
Upper Body Leg (6) and the Right Link Arm (43)
from the side shown.
Insert a hex key into the M8 x 35mm Patch
Screw (149) in the Link Arm Axle (114).
Using a second hex key, tighten another M8 x
35mm Patch Screw (149), a Small Axle Cover
(56), and an M8 Washer (95) into the other end
of the Link Arm Axle (114). Tip: Avoid damag-
ing the Small Axle Cover when tightening
the Patch Screw.
Repeat this step on the other side of the
elliptical.
10
9. Orient the Ramp Cover (131) around the
Upright (5) as shown.
P
ress the tabs on the Ramp Cover (131) into
the Ramp (130).
9
131
130
5
95
43
56
6
114
149
149
Grease
To Next Page
