Page #11 background imageLoading...
Page #11 background image
11
12
11
9
7
6
8
102
102
103
1

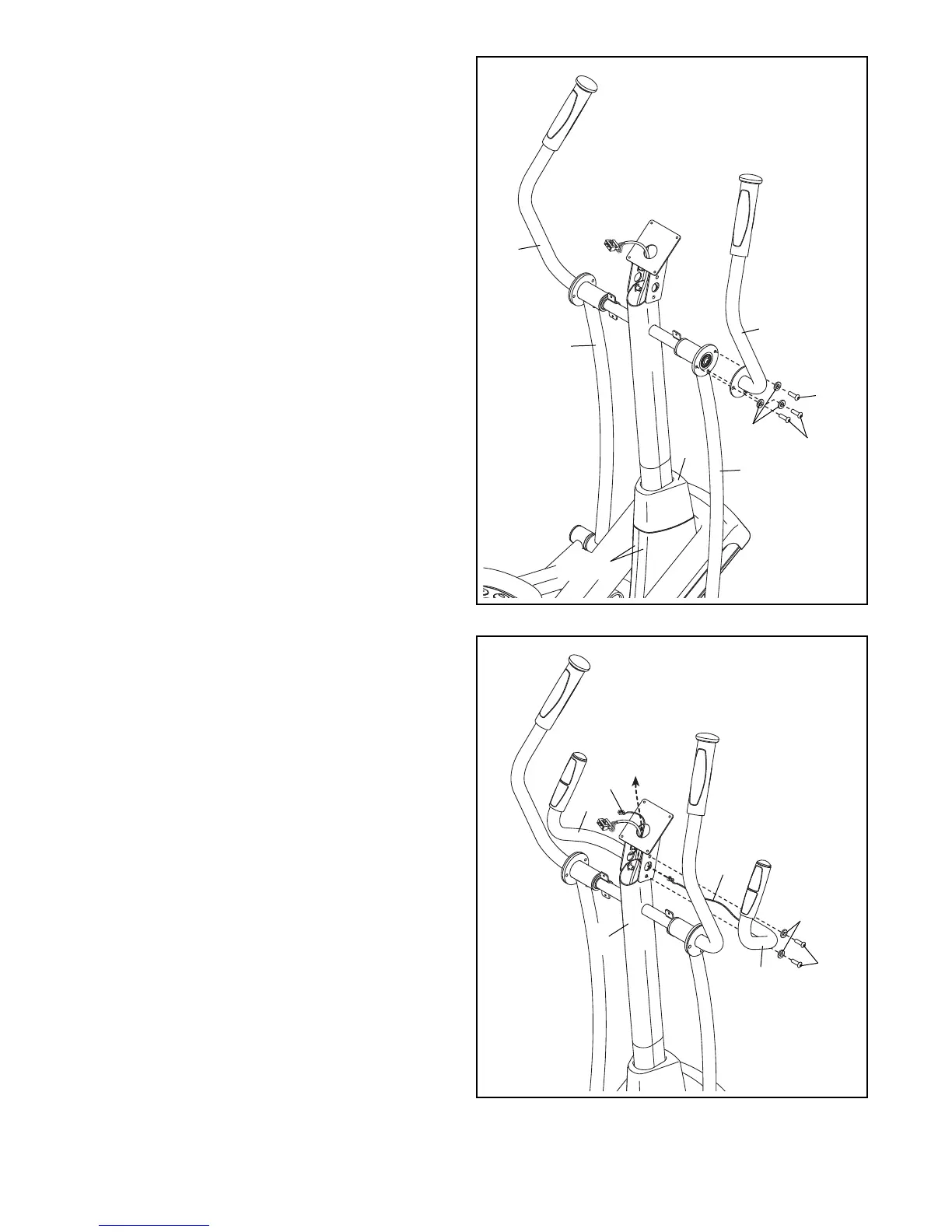

1. Identify the Right Upper Body Arm (8), which is
marked with a “Right” sticker, and orient it as
s
hown.
Have a second person hold the Right Upper
Body Arm (8) near the Right Upper Body Leg
(
6).
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x
16mm Patch Screws (102) and three M8 Split
Washers (103).
Attach the Left Upper Body Arm (9) to the
Left Upper Body Leg (7) in the same way.
See step 4 on page 7. Tighten the M8 x 16mm
Patch Screws (102).
Slide the Top Cover (27) downward and press it
into the Right and Left Frame Covers (21, 22).
12. Identify the Right Handlebar (10), which is
marked with a “Right” sticker, and orient it as
shown.
Have a second person hold the Right Handlebar
(10) near the right side of the Upright (5).
Insert the Pulse Wire (105) from the Right
Handlebar (10) into the right side of the Upright
(5) and pull it upward out of the top of the
Upright.
Tip: Avoid pinching the Pulse Wire (105).
Attach the Right Handlebar (10) to the Upright
(5) with two M8 x 16mm Patch Screws (102)
and two M8 Split Washers (103).
Attach the Left Handlebar (11) in the same
way.
102
103
105
105
10
11
5
Avoid pinching the
Pulse Wires (105)
27
21, 22
