12
13
14

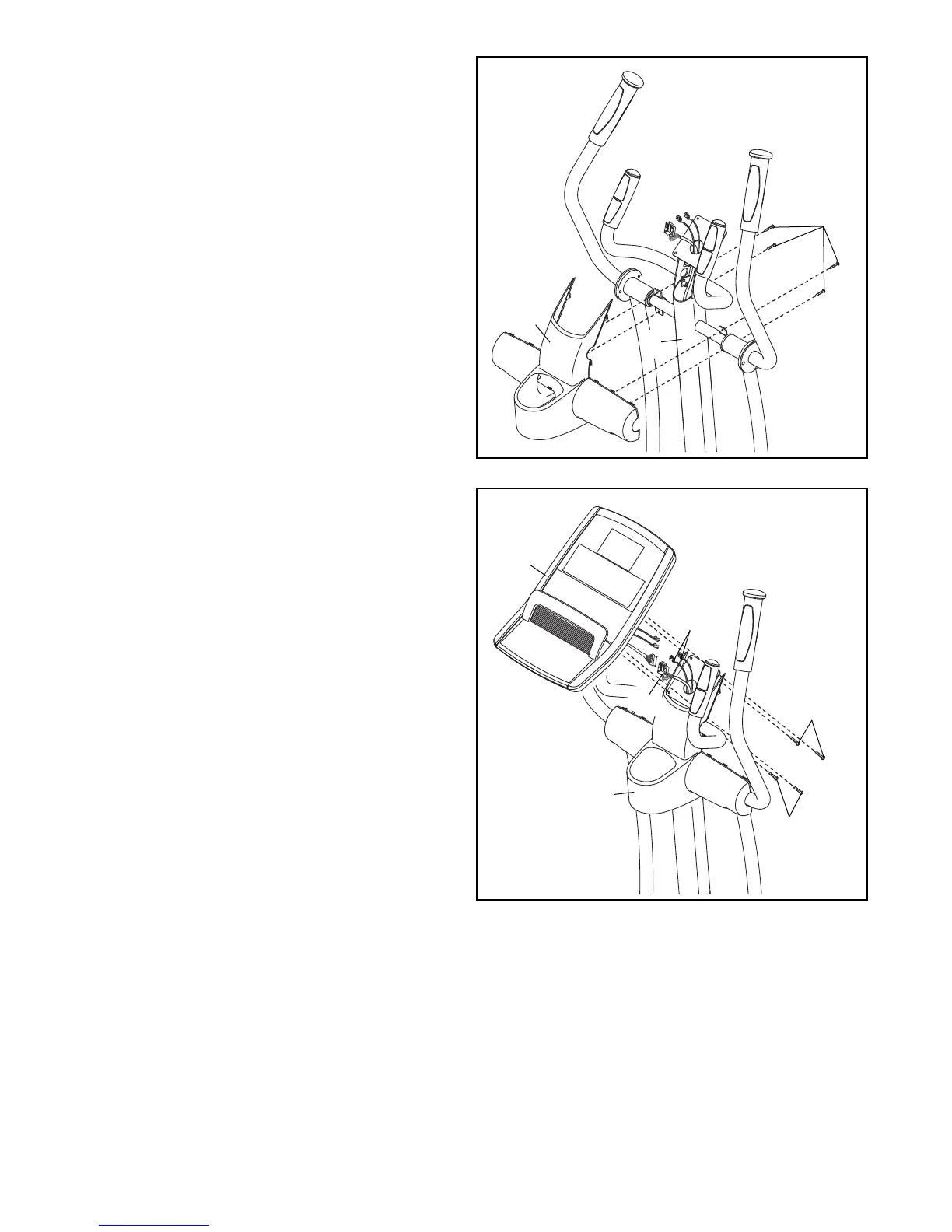

14. Untie and discard the wire tie attached to the
Main Wire (60).
While a second person holds the Console (33)
near the Upright (5), connect the wires on the
Console to the Main Wire (60) and to the Pulse
Wires (105).
Insert the excess wire downward into the
Upright (5) or upward into the Console (33).
Tip: Avoid pinching the wires. Attach the
Console (33) to the Upright (5) with four M4 x
19mm Screws (156).
33
105
5
60
25
156
5
13. Orient the Rear Upright Cover (25) as shown.
Attach the Rear Upright Cover (25) to the
U
pright (5) with four M4 x 19mm Screws (156).
Avoid pinching
the wires
156
156
To Next Page
