7
2
23
1
74

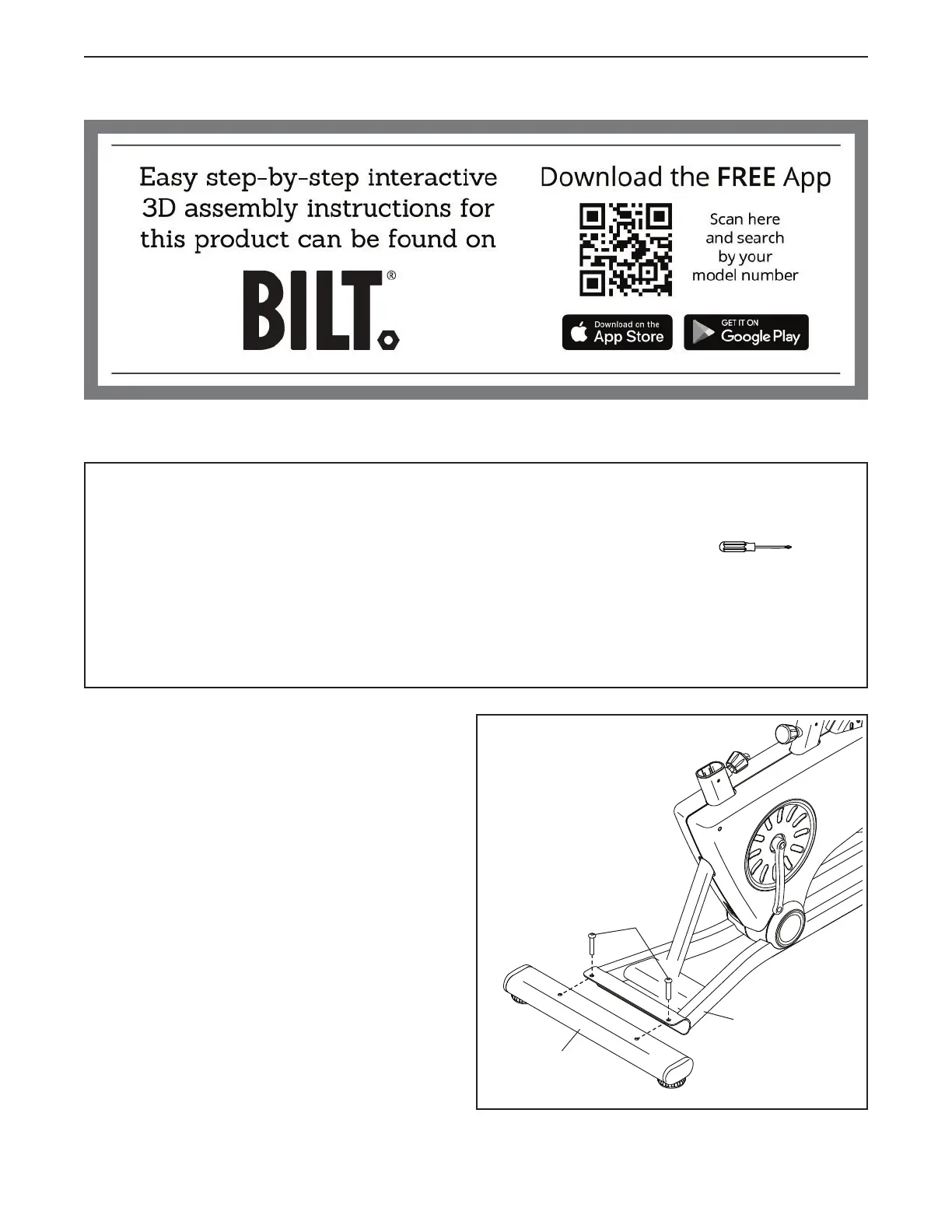

2. If there is a shipping support attached to the rear
of the Frame (1), remove the screws from the
shipping support, and discard the screws and
the shipping support.
Attach the Rear Stabilizer (23) to the Frame (1)
with two M10 x 58mm Screws (74).
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you fi nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
1. To use the assembly steps in this manual, first see the helpful tips below.
