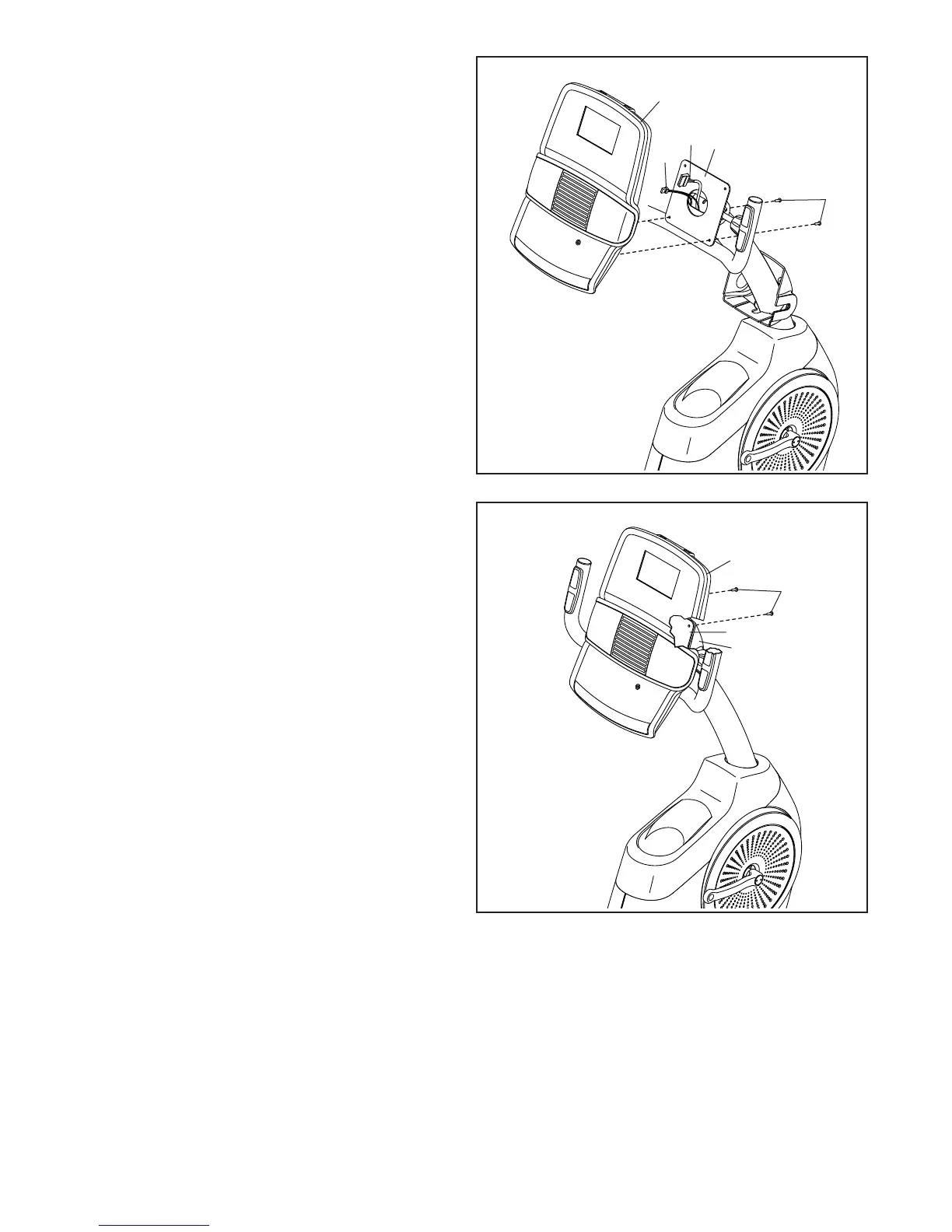

12. While a second person holds the Console (15)
near the Handlebar (14), connect the wires on
the Console to the Main Wire (77) and the Pulse
Wire (84).
Insert the excess wire into the Handlebar (14).
Tip: Avoid pinching the wires. Attach the
Console (15) to the Handlebar (14) with two
M4 x 16mm Screws (49) in the location shown.
Avoid pinching
the wires
13
13. Slide the Console Cover (16) upward against
the Handlebar (14). Attach the Console Cover
and the Console (15) to the Handlebar with two
M4 x 16mm Screws (49).
16
49
14
15
