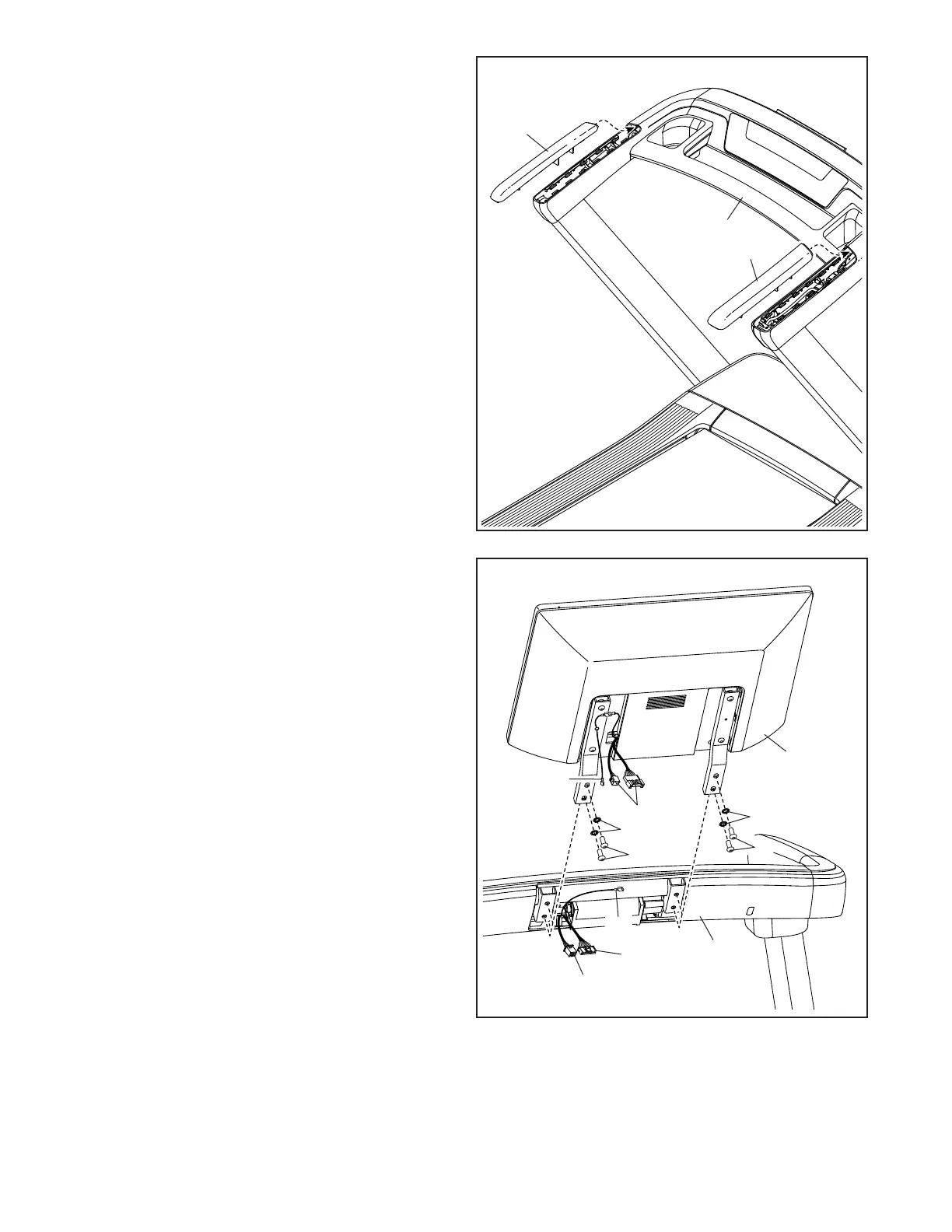

6. Identify the Left Handrail Cover (74). Insert the
front edge of the Left Handrail Cover into the top
of the handrail assembly (D) on the left side of
the treadmill as shown. Then, press down on the
top of the Left Handrail Cover until it snaps into
place.
Attach the Right Handrail Cover (75) to the
right side of the handrail assembly (D) in the
same way.
D
74
75
7
7. Do not pinch the wires (F, G, H, 83, 98) dur-
ing this step. Attach the console assembly (E)
to the handrail assembly (D) with four 1/4" x 1"
Screws (4) and four 1/4" Star Washers (5); start
all four Screws, and then tighten them.
Next, connect the Handrail Wire (83) and the
primary console wire (F) to the matching console
wires (G). IMPORTANT: The wire connectors
should slide together easily and snap into
place with an audible click. If they do not,
turn one connector and try again.
Then, connect the two Ground Wires (98, H).
83
4
5
5
F
H
D
E
G
98
4
