5. Identify the Left and Right Base Covers (82, 83).
Slide the Left and Right Base Covers onto the
Left and Right Uprights (89, 90) as shown. Do
not press the Left and Right Base Covers into
place yet.
83
90
82
89
5

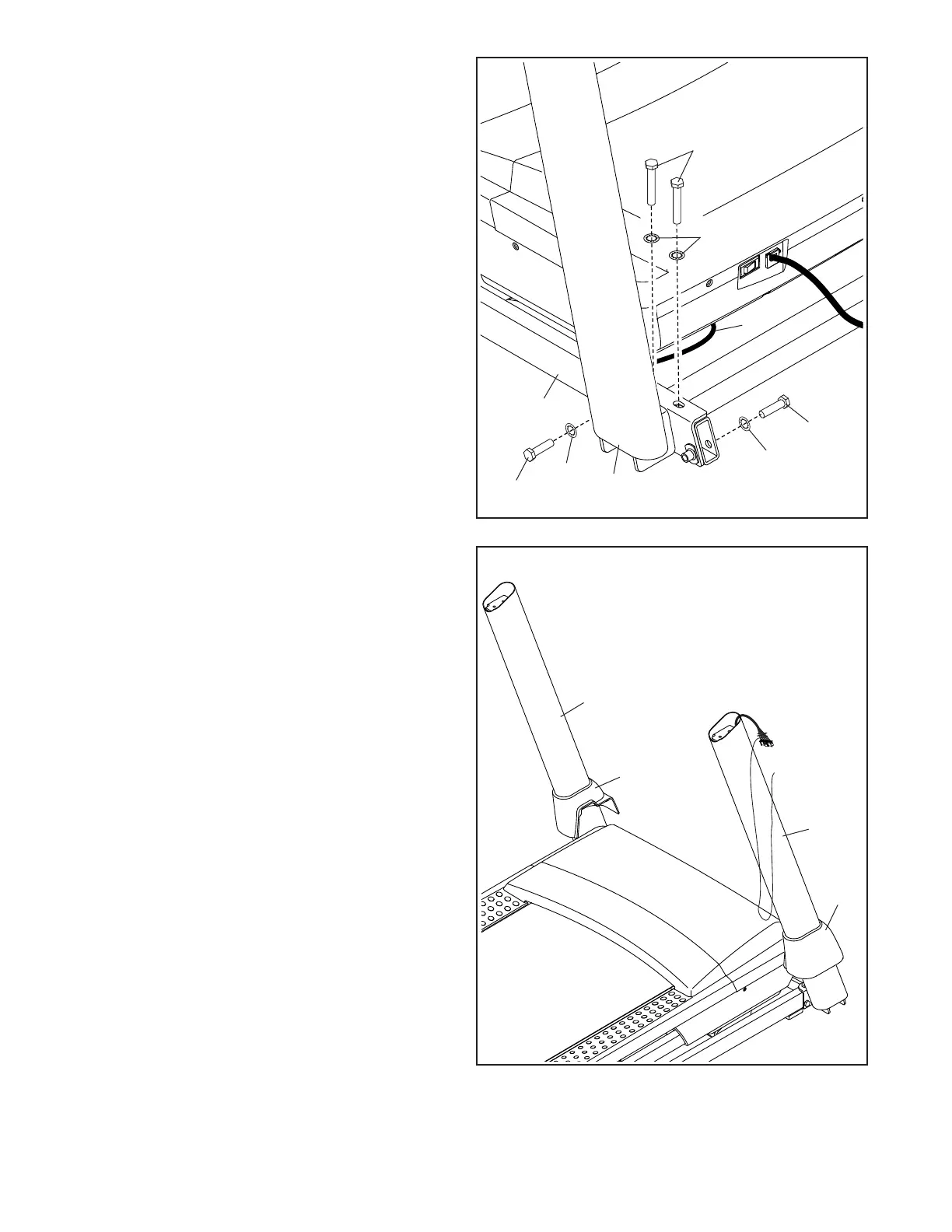

4. Hold the Right Upright (90) against the Base (6).
Make sure not to pinch the Upright Wire (81).
Attach the Right Upright (90) with two 3/8" x
2 3/8" Screws (7), a 3/8" x 1 1/4" Screw (63),
a 3/8" x 1 3/4" Screw (62), and four 3/8" Star
Washers (13) as shown; do not fully tighten
the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
4
63
62
6
13
13
90
7
13
81
