11

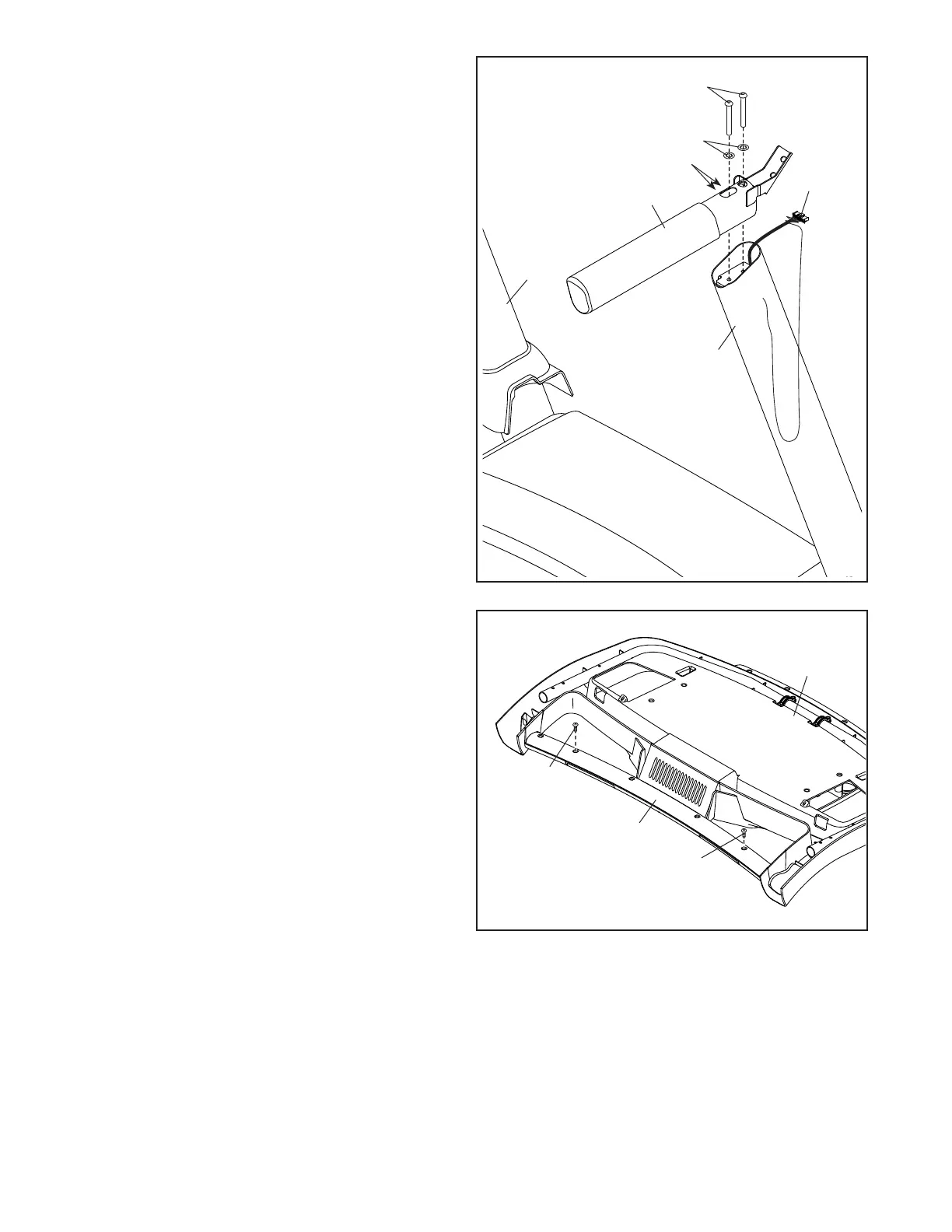

6. If there are four screws (E) preattached inside
the Right and Left Handrails (84, 85), remove
and discard the screws (only one side is shown).
Identify the Right Handrail (84).
Attach the Right Handrail (84) to the Right
Upright (90) with two 5/16" x 3" Screws (28) and
two 5/16" Star Washers (11); start both Screws,
and then tighten them. Make sure not to
pinch the Upright Wire (81).
Attach the Left Handrail (not shown) to the
Left Upright (89) in the same way. Note: There
are no wires on the left side.
11
81
84
28
6
90
89
64
23
F
F
7
7. Set the Console Base (64) face down on a soft
surface to avoid scratching the Console Base.
Remove and discard the two indicated screws
(F). Then, remove the Pulse Crossbar (23).
E
To Next Page
