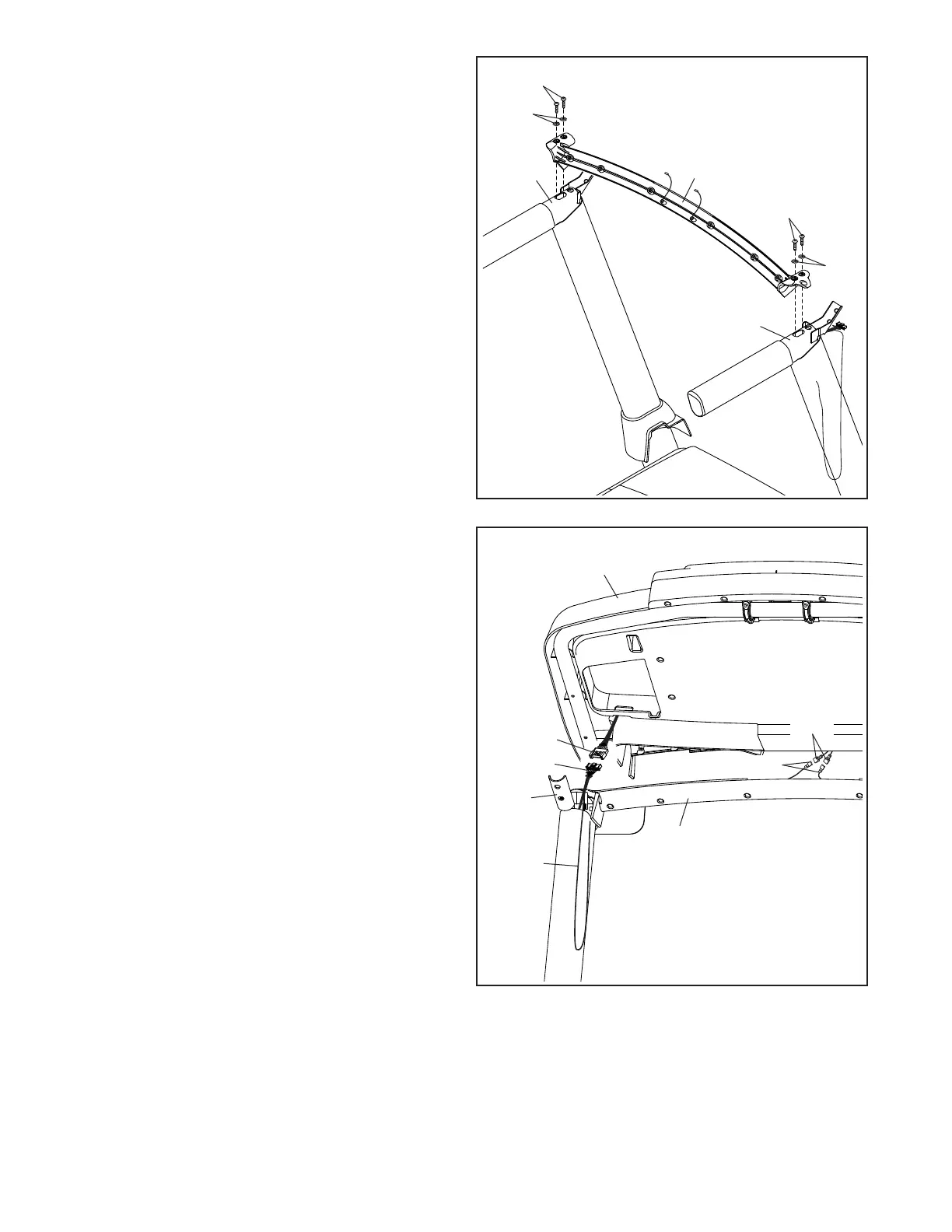

8. IMPORTANT: To avoid damaging the Pulse
Crossbar (23), do not use power tools and do
not overtighten the #10 x 1 1/4" Screws (9).
Orient the Pulse Crossbar (23) as shown. Attach
the Pulse Crossbar to the Handrails (84, 85) with
four #10 x 1 1/4" Screws (9) and four #10 Star
Washers (5); start all four Screws, and then
tighten them.
9. With the help of a second person, hold the con-
sole assembly (G) near the Right Handrail (84)
and the Left Handrail (not shown).
Connect the ground wires (H) from the console
assembly (G) to the Console Ground Wires (58)
on the Pulse Crossbar (23).
Connect the Upright Wire (81) to the console
wire (I). The connectors should slide together
easily and snap into place. If they do not, turn
one connector and try again. Then, remove the
wire tie (A) from the Upright Wire.
9
G
A
I
81
84
H
23
9
9
5
5
84
58
