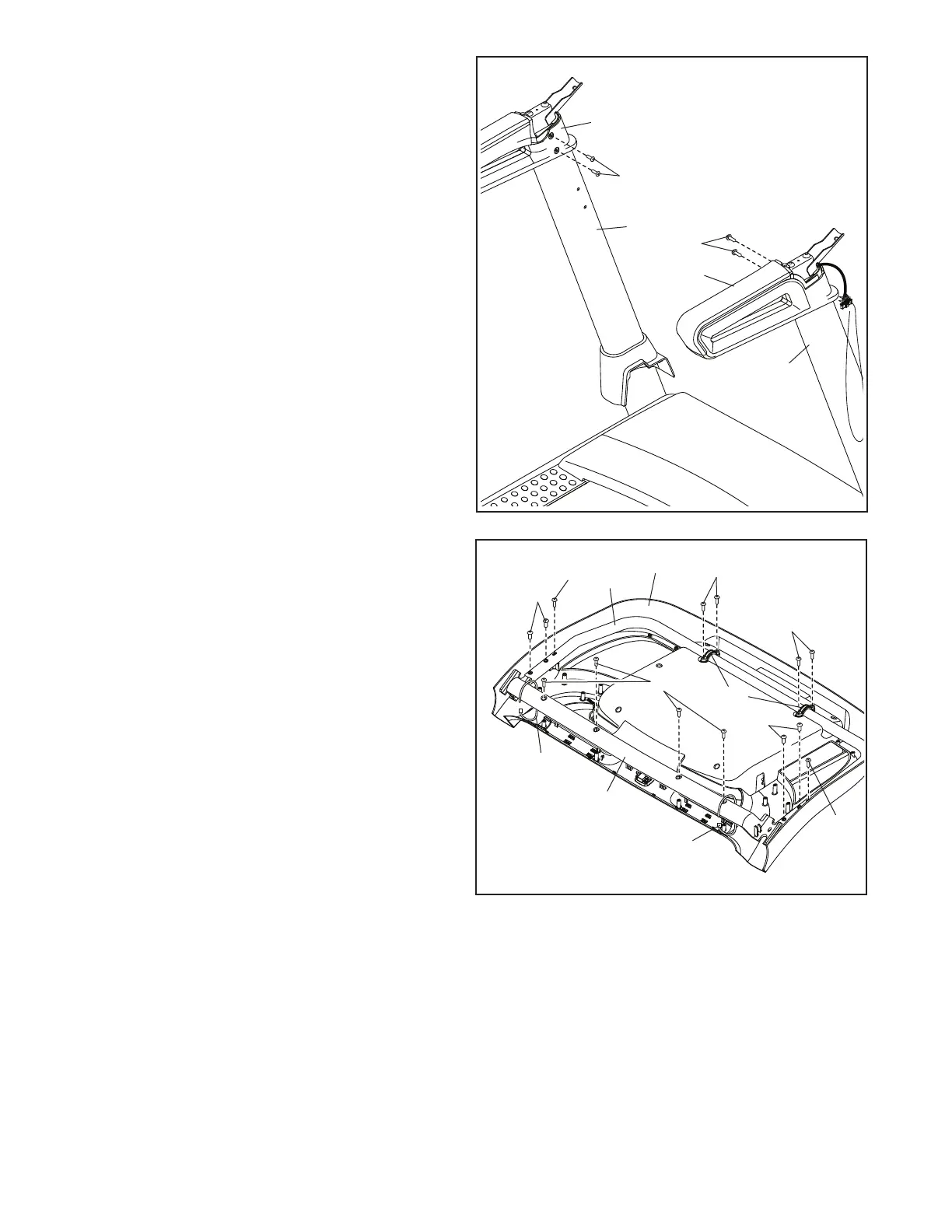

8. Tighten four #8 x 3/4" Screws (2) into the left and
right handrail assemblies (E, G) and into the Left
and Right Uprights (89, 90).
8
G
E
89
90
2
2
64
18
92
93
I
9
9. Set the Console Base (64) face down on a soft
surface to avoid scratching the Console Base. If
there are ties (H) securing the Crossbar (93) to
the Console Base, remove the ties.
Remove and discard the four indicated screws
(I). Then, remove the Crossbar (93).
Next, remove and save the four 5/16" x 3/4"
Screws (4) and the six #8 x 3/4" Screws (2).
Then, lift out the two Console Clamps (92) and
the Console Frame (18).
4
4
2
2
2
2
H
H
