13
64
27
36
1
1
1
10

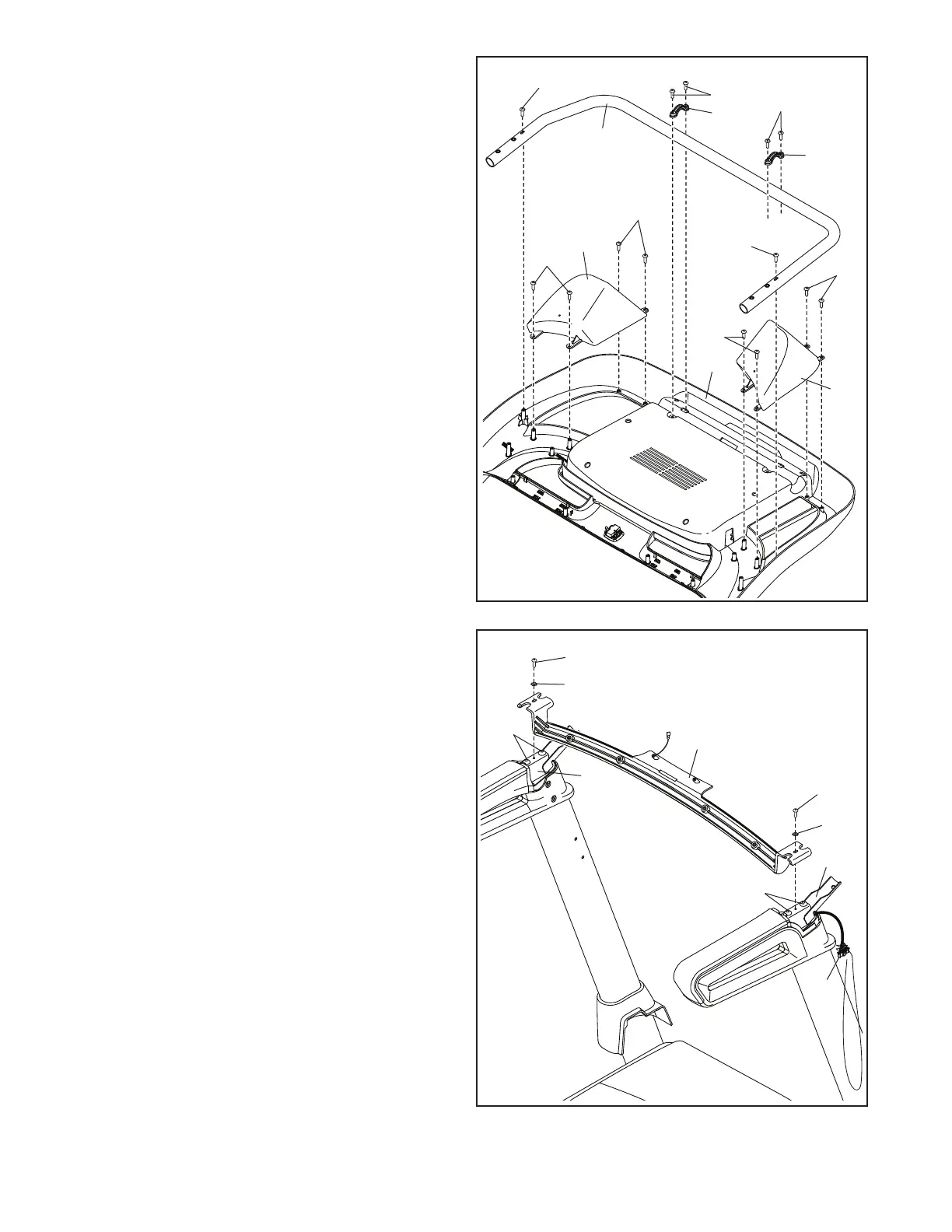

10. Identify the Right and Left Trays (27, 36).
Attach the Trays (27, 36) to the Console Base
(64) with eight #8 x 1/2" Screws (1); do not
overtighten the Screws.
Then, reattach the Console Frame (18) with the
six #8 x 3/4" Screws (2) and the two Console
Clamps (92) that you removed in step 9; do not
overtighten the Screws.
1
18
92
92
2
2
2
2
11. IMPORTANT: To avoid damaging the
Crossbar (93), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Orient the Crossbar (93) as shown. Attach the
Crossbar to the Handrails (86) with two #10 x
3/4" Screws (9) and two #10 Star Washers (5);
start both Screws, and then tighten them.
Make sure not to pinch the Upright Wire
(81). Firmly tighten the four 5/16" x 2 1/2"
Screws (28).
11
9
9
5
5
28
28
86
93
86
81
To Next Page
