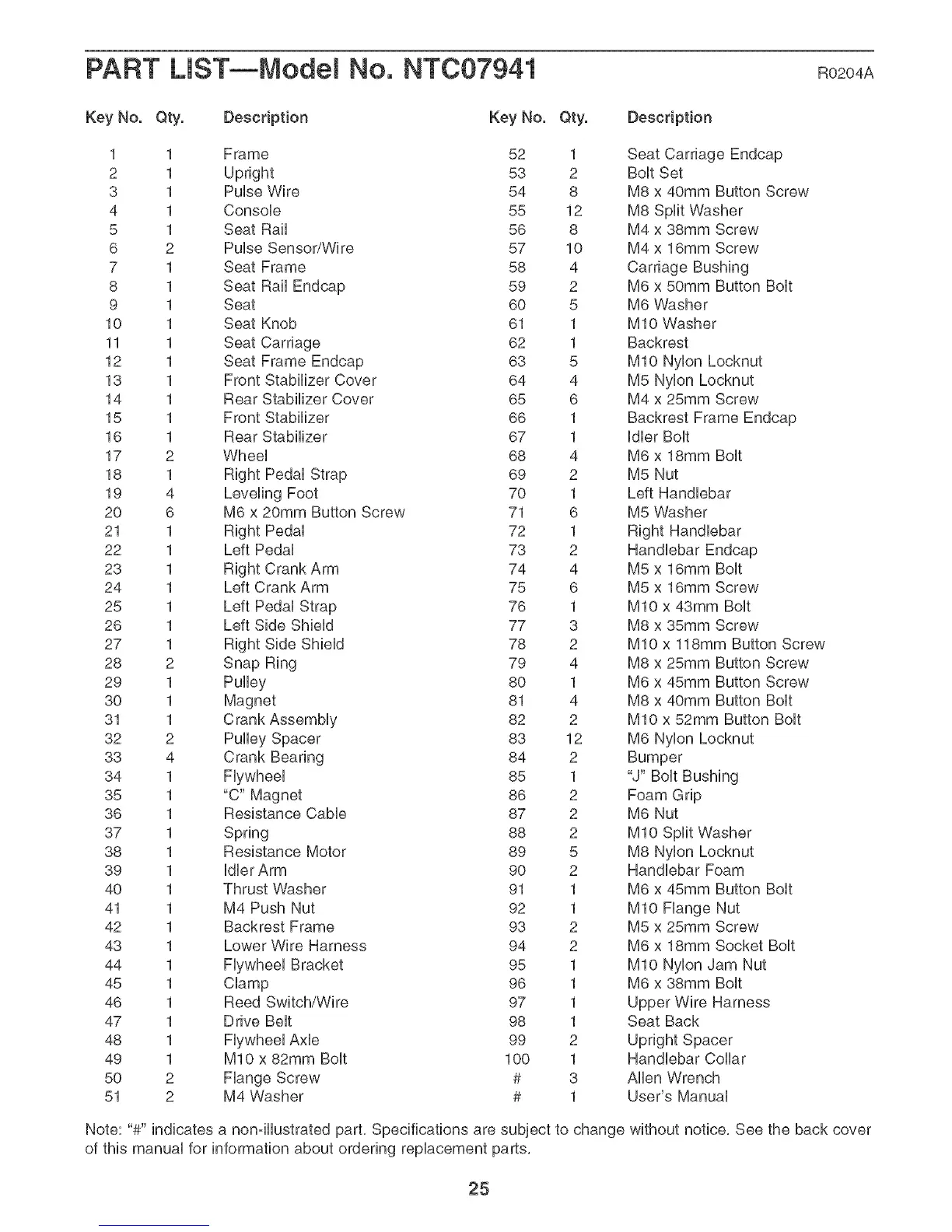

PART LiST--Model No. NT007941 Ro2o4A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 52 1 Seat Carriage Endcap
2 1 Upright 53 2 BoUtSet
3 1 PuUseWire 54 8 M8 x 40ram Button Screw
4 1 ConsoUe 55 12 M8 Split Washer
5 1 Seat Rail 56 8 M4 x 38ram Screw
6 2 PuUseSensor/Wire 57 10 M4 x 16ram Screw
7 1 Seat Frame 58 4 Carriage Bushing
8 1 Seat Rail Endcap 59 2 M6 x 50ram Button BoUt
9 1 Seat 60 5 M6 Washer
10 1 Seat Knob 61 1 MIO Washer
11 1 Seat Carriage 62 1 Backrest
12 1 Seat Frame Endcap 63 5 MIO NyUonLocknut
13 1 Front Stabilizer Cover 64 4 M5 NyUon Locknut
14 1 Rear Stabilizer Cover 65 6 M4 x 25ram Screw
15 1 Front Stabilizer 66 1 Backrest Frame Endcap
16 1 Rear Stabilizer 67 1 UdUerBoUt
17 2 WheeU 68 4 M6 x 18ram BoUt
18 1 Right PedaUStrap 69 2 M5 Nut
19 4 Leveling Foot 70 1 Left HandUebar
20 6 M6 x 20ram Button Screw 71 6 M5 Washer
21 1 Right PedaU 72 1 Right HandUebar
22 1 Left PedaU 73 2 HandUebar Endcap
23 1 Right Crank Arm 74 4 M5 x 16ram BoUt
24 1 Left Crank Arm 75 6 M5 x 16ram Screw
25 1 Left Pedal Strap 76 1 MIO x 43mm Bolt
26 1 Left Side Shield 77 3 M8 x 35mm Screw
27 1 78 2 MIO x 118mm Button Screw
28 2 Snap Ring 79 4 M8 x 25mm Button Screw
29 1 Pulley 80 1 M6 x 45mm Button Screw
30 1 Magnet 81 4 M8 x 40mm Button Bolt
31 1 Crank Assembly 82 2 MIO x 52mm Button Bolt
32 2 Pulley Spacer 83 12 M6 Nylon Locknut
33 4 Crank Bearing 84 2 Bumper
34 1 Flywheel 85 1 "J" Bolt Bushing
35 1 "C" Magnet 86 2 Foam Grip
36 1 Resistance Cable 87 2 M6 Nut
37 1 Spring 88 2 MIO Split Washer
38 1 Resistance Motor 89 5 M8 Nylon Locknut
39 1 Idler Arm 90 2 Handlebar Foam
40 1 Thrust Vv'asher 91 1 M6 x 45mm Button Bolt
41 1 M4 Push Nut 92 1 MIO Flange Nut
42 1 Backrest Frame 93 2 M5 x 25mm Screw
43 1 Lower Wire Harness 94 2 M6 x 18mm Socket Bolt
44 1 Flywheel Bracket 95 1 MIO Nylon Jam Nut
45 1 Clamp 96 1 M6 x 38mm Bolt
46 1 Reed Switch/Wire 97 1 Upper Wire Harness
47 1 Drive Belt 98 1 Seat Back
48 1 Flywheel Axle 99 2 Upright Spacer
49 1 MIO x 82mm Bolt 100 1 Handlebar Collar
50 2 Flange Screw # 3 Allen Wrench
51 2 M4 Washer # 1 User's Manual
Note: "#" indicates a non-illustrated part, Specifications are subject to change without notice, See the back cover
of this manual for information about ordering replacement parts,
