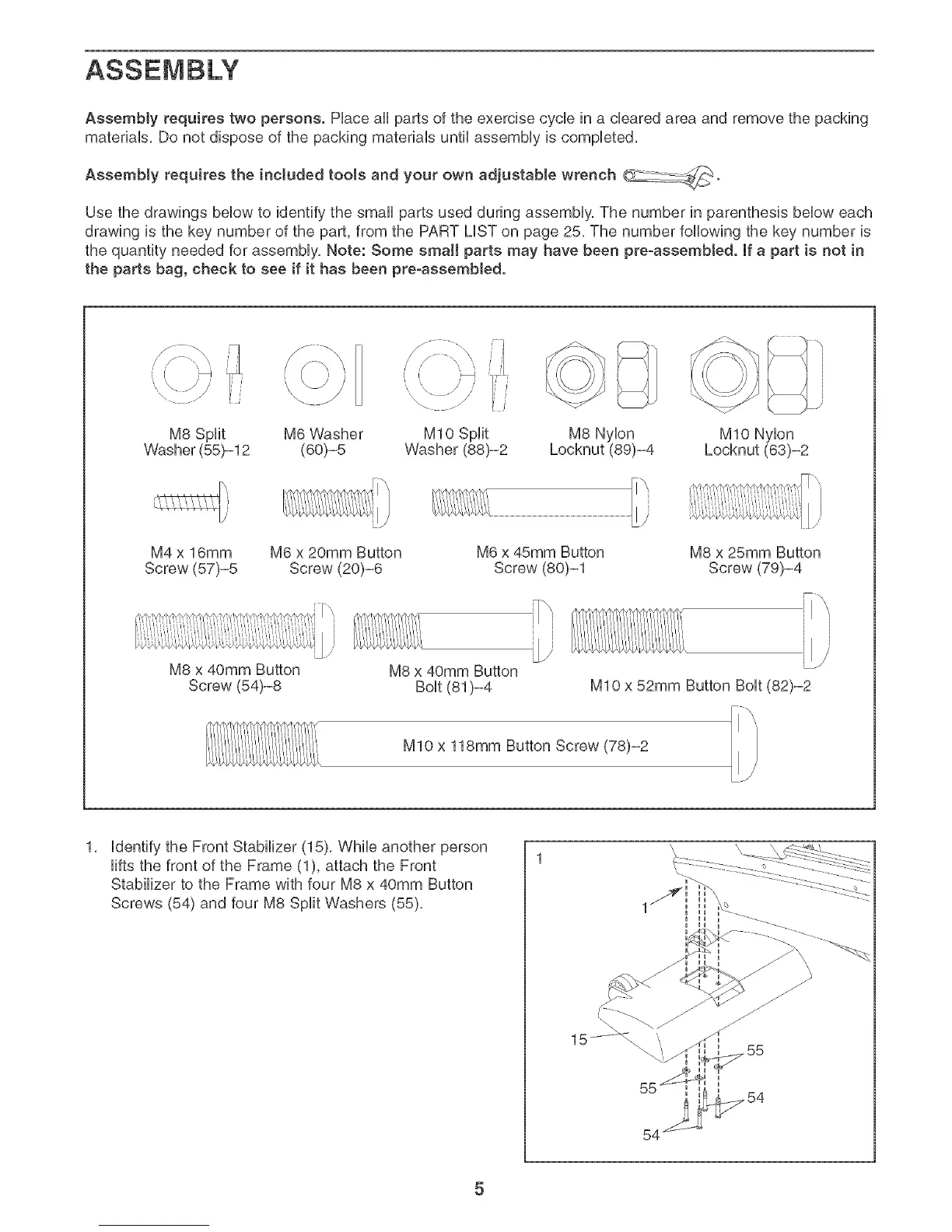

ASSEMBLY
Assembly requires two persons. Hace all parts of the exercise cycle in a cbared area and remove the packing
materiab, Do not dispose of the packing materiab until assembly is compbted,
Assembly requires the included tools and your own adjustable wrench ©___./_.
Use the drawings below to identify the small parts used during assembly, The number in parenthesis below each
drawing is the key number of the part, from the PART LiST on page 25, The number following the key number is
the quantity needed for assembly, Note: Some small parts may have been pre-assembJed. [fa part is not in
the parts bag, check to see if it has been pre-assembled.
i' I¸¸ _i
M8 Split M6 Washer M8 Nylon MIO Nylon
Washer (55)-12 (60)-5 Locknut (89)-4
M10 Split
Washer (88)-2
M4 x 16mm
Screw (57)-5
M6 x 20mm Button
Screw (20)-6
M8 x 40mm Button
Screw (54)-8
M6 x 45mm Button
Screw (80)-1
_"\]
ili
M8 x 40mm Button
Bolt (81)-4
M8 x 25mm Button
Screw (79)-4
M10 x 52mm Button Bolt (82)-2
M10 x 118mm Button Screw (78)-2
1,
identify the Front Stabilizer (15), While another person
lifts the front of the Frame (1), attach the Front
Stabilizer to the Frame with four M8 x 40mm Button
Screws (54) and four M8 Split Washers (55),
5
To Next Page
