11

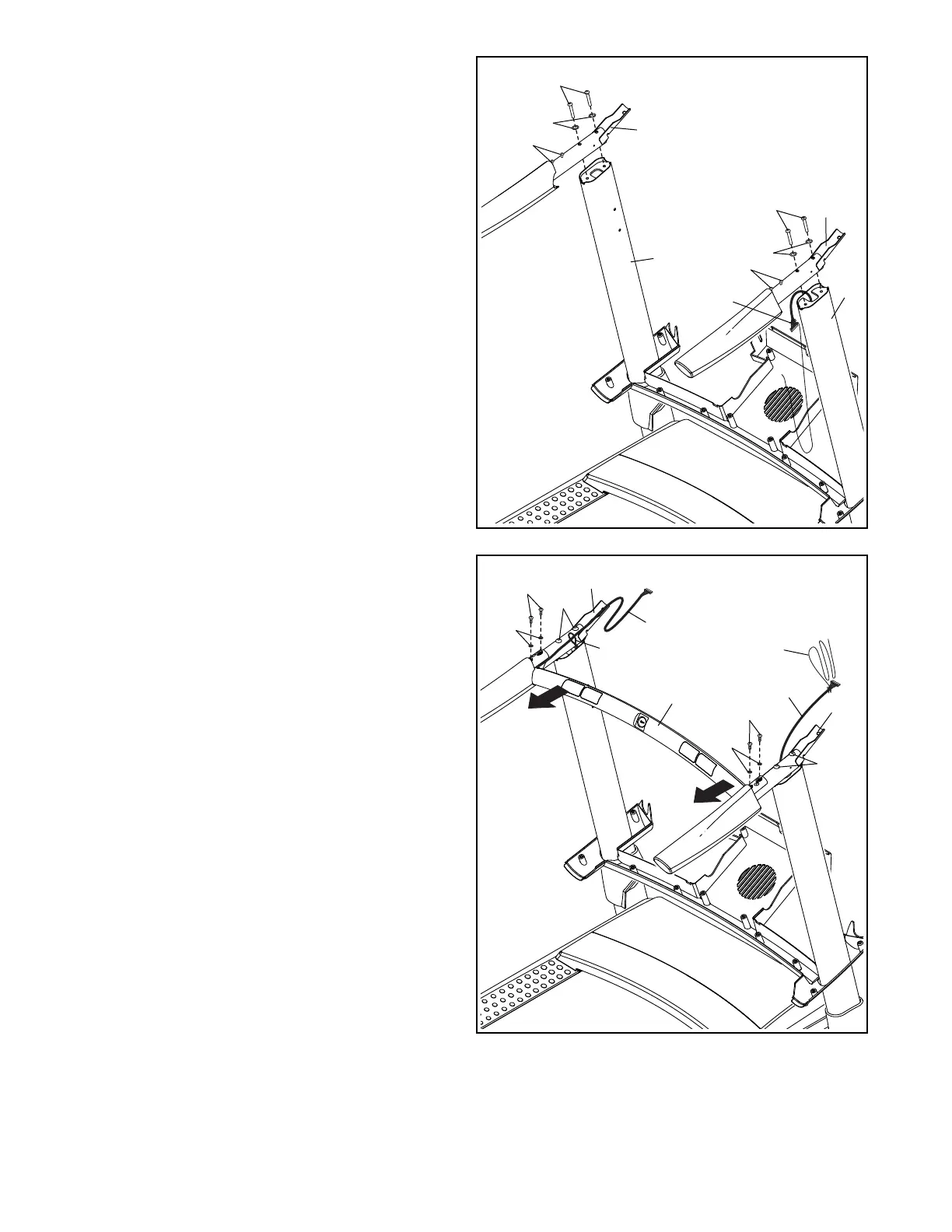

8. Attach a Handrail (86) to the Right Upright
(90) with two 5/16" x 2 1/2" Screws (28) and
two 5/16" Star Washers (11). Be careful not
to pinch the Upright Wire (81). Do not fully
tighten the Screws yet.
Attach the other Handrail (86) to the Left
Upright (89) in the same way. Note: There are
no wires on the left side.
Remove and discard the four indicated
screws (C).
8
89
86
28
28
11
86
C
C
81
9. Position the Pulse Crossbar (93) with the pulse
wire (D) on the left side as shown. Start four #10
x 3/4" Screws (9) with four #10 Star Washers (5)
into the Pulse Crossbar and the Handrails (86).
Next, insert the pulse wire (D) through the
looped Cable Tie (99) on the left Handrail (86).
Next, slide the Pulse Crossbar (93) as far as
possible in the direction shown, and tighten the
#10 x 3/4" Screws (9). Do not overtighten the
Screws.
Then, remove the wire tie from the Upright
Wire (81).
Tighten the four 5/16" x 2 1/2" Screws (28).
9
5
Wire
Tie
5
9
9
93
81
11
90
28
28
86
86
D
99
To Next Page
