2. Make sure that the power cord is unplugged.
Press the two Base Caps (74) into the Base (94)
if they are not already in the Base.
Remove the tie securing the Upright Wire (81) to
the front of the Base (94).
Identify the Right Upright (90). Remove and
discard the indicated screw (A). Have a second
person hold the Right Upright near the Base
(94).

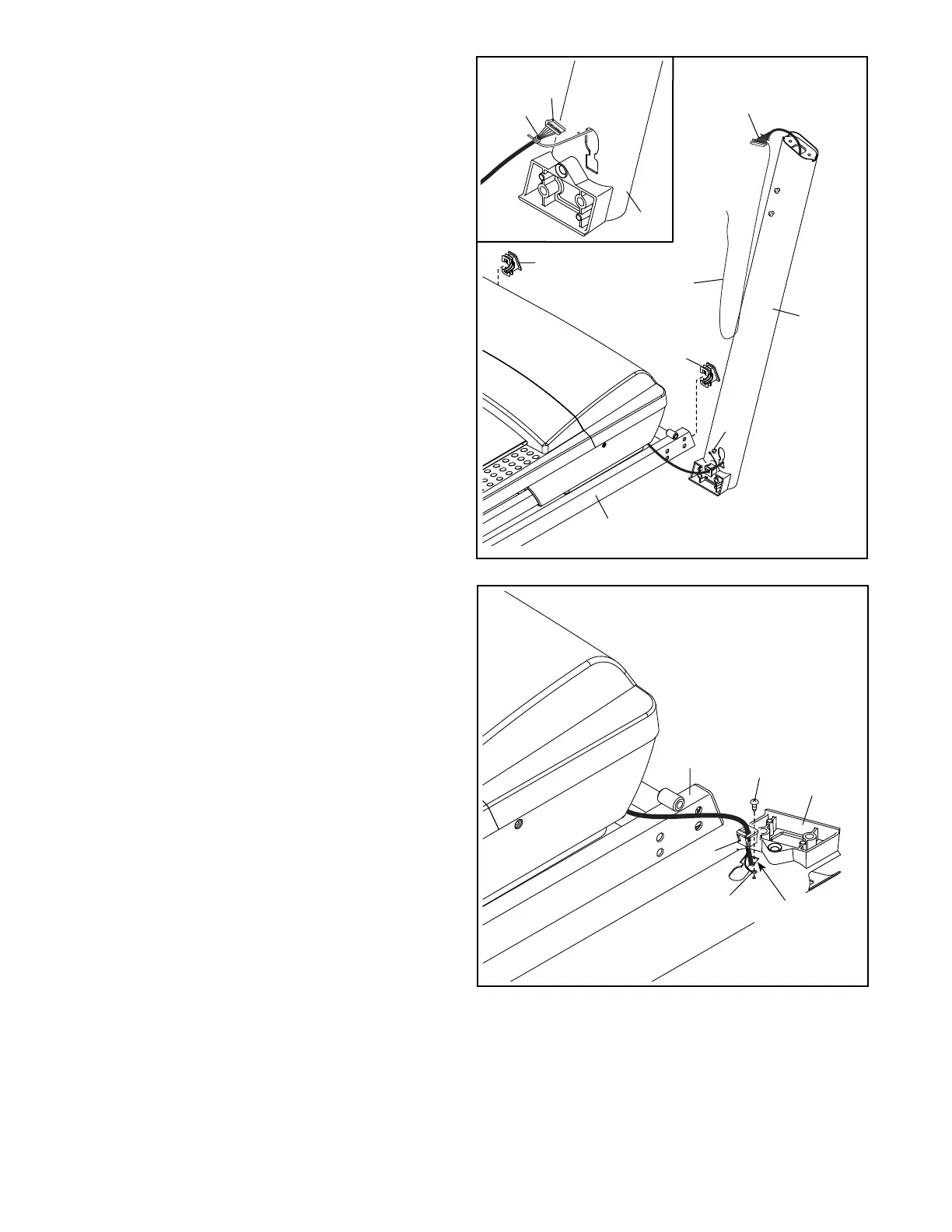

See the inset drawing. Tie the wire tie in the
Right Upright (90) securely around the end of the
Upright Wire (81). Then, insert the Upright Wire
into the lower end of the Right Upright as you
pull the other end of the wire tie out of the Right
Upright.
3. Lay the Right Upright (90) near the Base (94).
Press the Grommet (77) into the square hole in
the Right Upright. Make sure not to pinch the
ground wire.
Then, attach the ground wire to the Right Upright
(90) with a #8 x 1/2" Silver Screw (10) as shown.
94
94
90
90
81
10
90
Wire
Tie
Wire
Tie
2
3
81
Ground
Wire
Square
Hole
74
74
A
77
