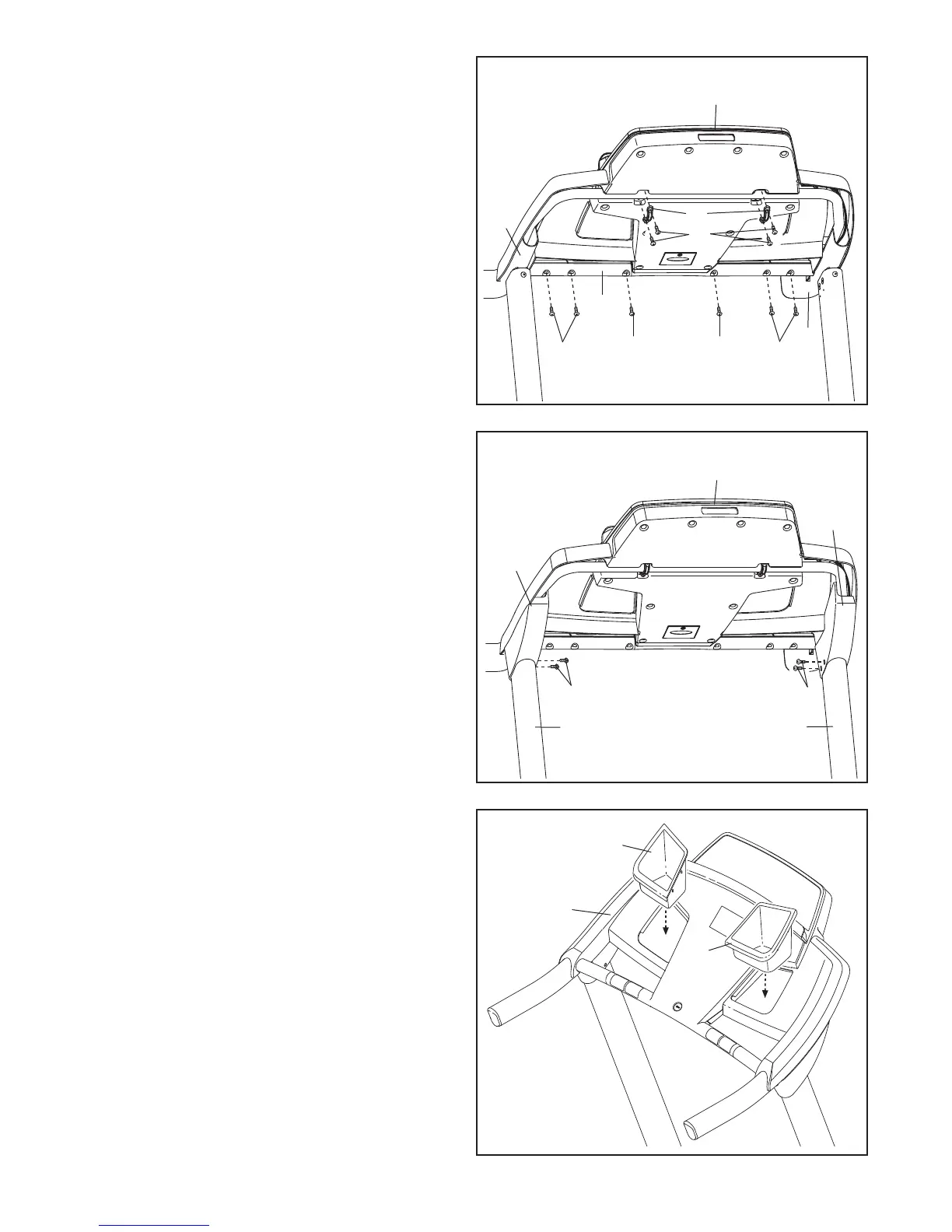

10. Set the console assembly on the Left and Right
Handrails (71, 72). Make sure that no wires
are pinched. Insert the excess Upright Wire (not
shown) into the Left Handrail and the ground
wires (not shown) into the console
assembly.
Attach the console assembly to the Pulse
Crossbar (31) with six #8 x 3/4" Screws (6).
Start all six Screws, and then tighten them.
Attach the two Console Clamps (85) to the con-
sole assembly with four #8 x 1" Screws (35).
10
31
85
Console
Assembly
71
6
6
35
6
6
72
76
75
93
Console
Assembly
44
Console
Assembly
92
45
6
6
11
12
11. Hold the Right Upright Cover (93) against the
console assembly. Align the holes in the Right
Upright Cover with the holes in the Right Upright
(76). Attach the Right Upright Cover with two #8
x 3/4" Screws (6).
Attach the Left Upright Cover (92) to the Left
Upright (75) in the same way.
See step 3. Firmly tighten all six 3/8" x 4"
Screws (4).
12. If necessary, press the Left Tray (44) and the
Right Tray (45) into the console assembly.
To Next Page
