13

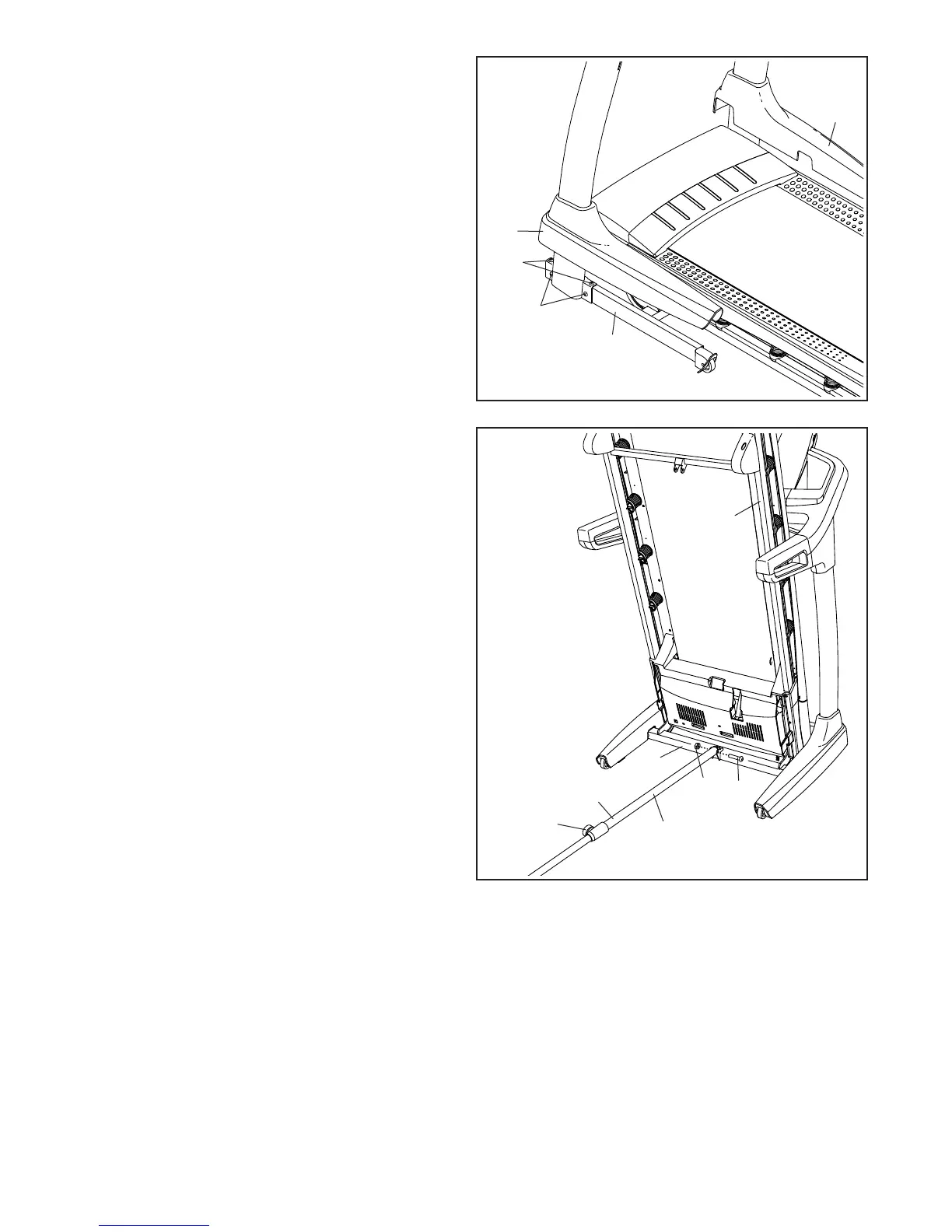

14. Raise the Frame (56) to the position shown.
Have a second person hold the Frame until
step 15 is completed.
Orient the Storage Latch (53) so that the large
barrel and the latch knob are in the positions
shown.
Attach the lower end of the Storage Latch (53) to
the Base (94) with a 3/8" x 2" Bolt (3) and a 3/8"
Nut (12).
14
53
Large
Barrel
Latch
Knob
12
3
94
13. Firmly tighten the four 3/8" x 2 3/4" Screws (7),
and then tighten the four 3/8" x 1 1/4" Screws (8)
(only one side is shown).
Press the Left and Right Base Covers (82, 83)
onto the Base (94) until they snap into place.
13
83
8
82
94
7
56
To Next Page
