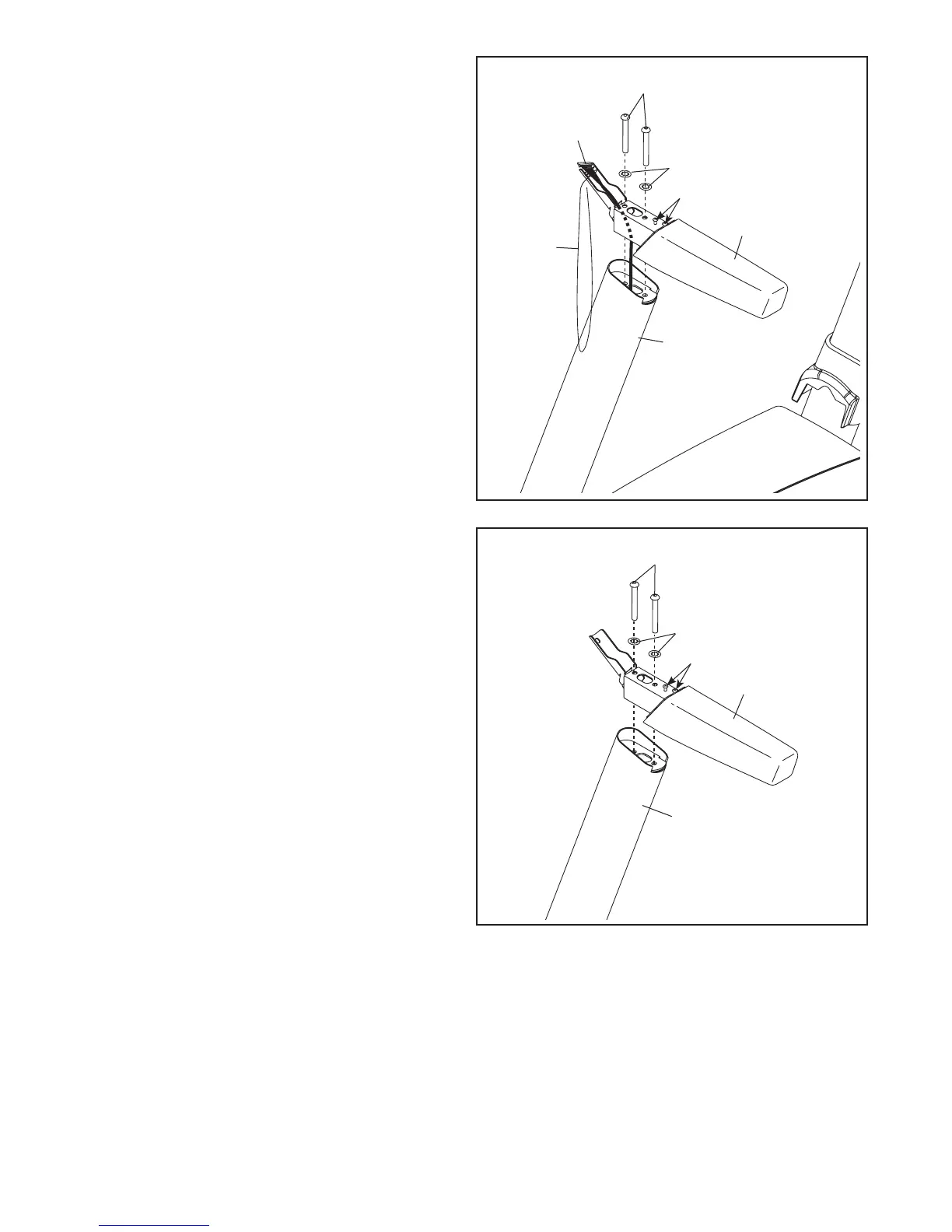

7. Identify the left handrail assembly (C), which is
marked “Left.” If there is a wire in the handrail
assembly, remove and discard it.
Hold the left handrail assembly (C) near the Left
Upright (84). Insert the wire tie on the Upright
Wire (91) into the bottom and out of the end of
the handrail assembly as shown. Then, pull the
Upright Wire through the handrail.
Attach the left handrail assembly (C) to the Left
Upright (84) with two 5/16" x 2 3/4" Screws (12)
and two 5/16" Star Washers (8). Make sure
not to pinch the Upright Wire (91). Start both
Screws, but do not tighten them yet.
Remove and discard the two indicated screws
(D) from the handrail assembly (C).
12
8
C
84
Wire
Tie
91
7
D
8. Attach the right handrail assembly (E) to the
Right Upright (85) with two 5/16" x 2 3/4"
Screws (12) and two 5/16" Star Washers (8).
Start both Screws, but do not tighten them
yet.
Remove and discard the two indicated screws
(D) from the handrail assembly (E).
8
85
E
D
12
8
To Next Page
