8
2. Note: For clarity some parts are not shown.
Tip: Be careful not to pinch the wires during
t
his step.
W

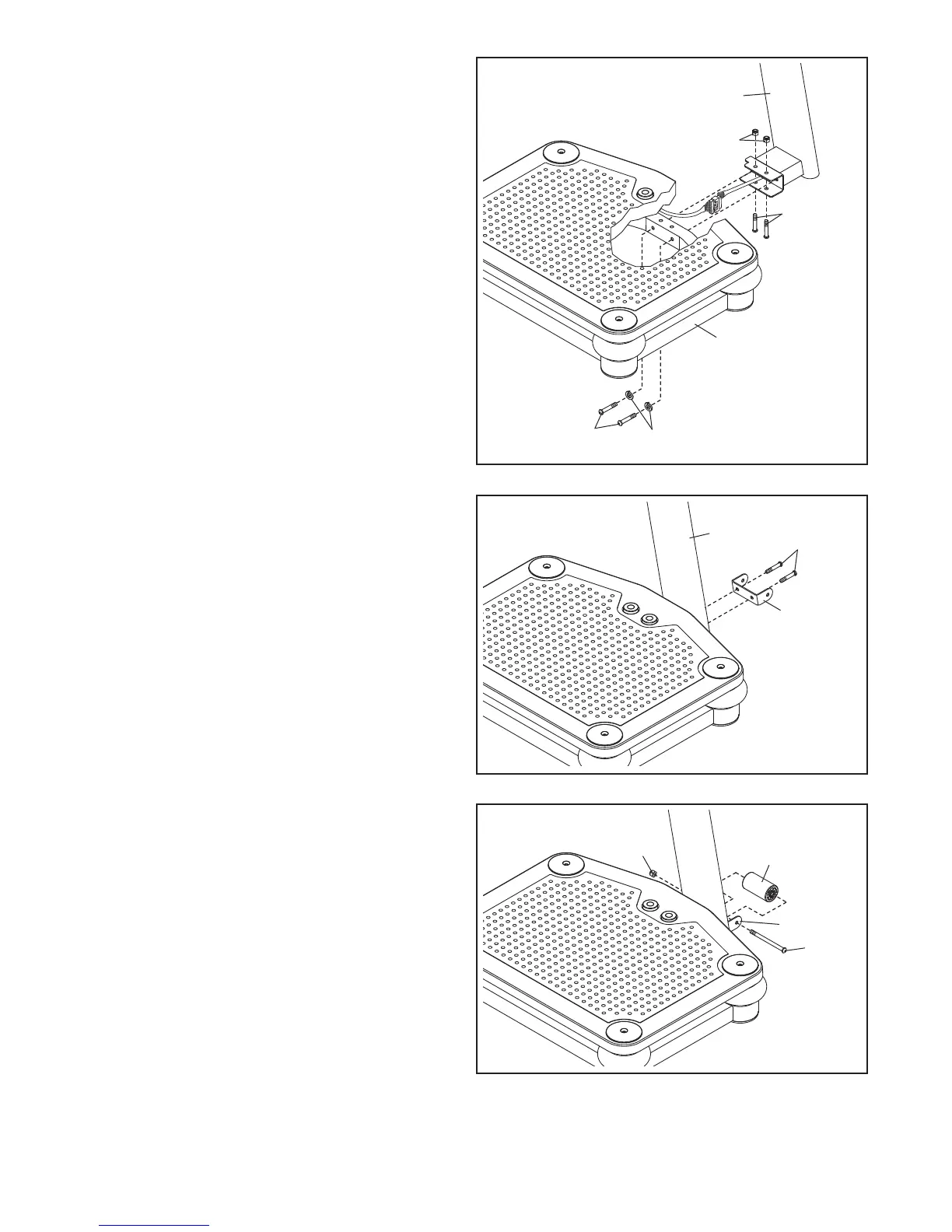

ith the help of a second person, carefully tip
the Base (5) onto its side.
Attach the Lower Upright (1) to the Base (5)
with two M10 x 55mm Patch Screws (20), two
M10 Split Washers (38), two M10 x 68mm Bolts
(55), and two M10 Locknuts (32).
2
3. Tip: Orient the Wheel Bracket (35) so that
the arrow sticker is pointing upward.
Attach the Wheel Bracket (35) to the Lower
Upright (1) with two M10 x 20mm Patch Screws
(28).
3
1
5
1
28
35
20
38
4. Attach the Wheel (30) to the Wheel Bracket (35)
with an M10 x 114mm Bolt (33) and an M10
Locknut (32). Do not overtighten the Locknut;
the Wheel must rotate freely.
Note: If the Wheel (30) rattles when the
vibration platform is in use, tighten the M10
Locknut (32) until the rattling stops.
4
30
33
35
32
32
5
5
