Issued 4/98
4
237505b

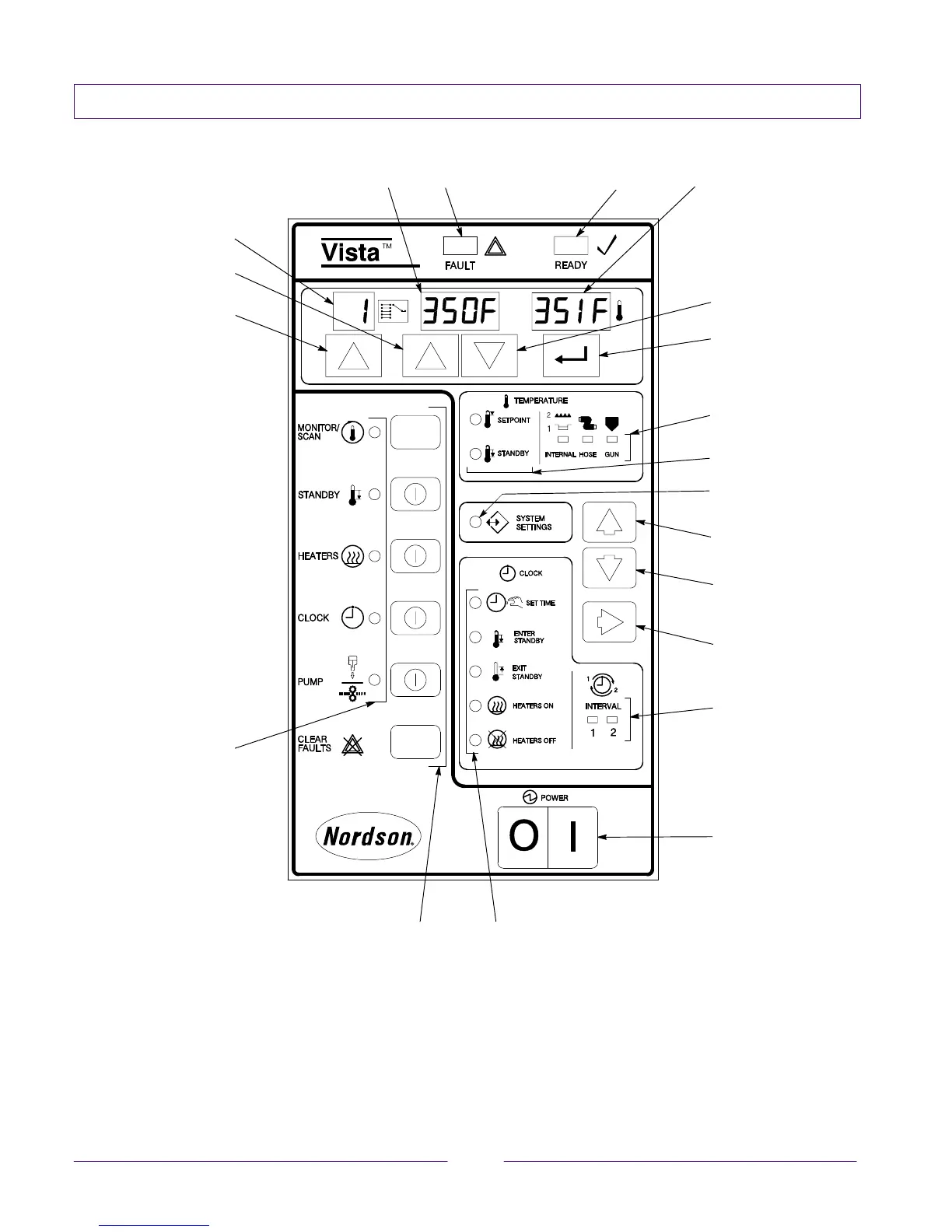

Vista Control Panel
16
17
18
19
20
1
2
3
4
5
6
7
8
14
13
11
10 9
15
12
1. Zone indicator lights
2. STANDBY or SETPOINT temperature light
3. SYSTEM SETTINGS light
4. Up key for system settings
5. Down key for system settings
6. Move right key
7. Clock INTERVAL lights
8. POWER switch
9. Clock feature lights
10. Control keys
11. Control lights
12. Up key for selector display
13. Up key for multipurpose display
14. Selector display
15. Multipurpose display
16. FAULT light
17. READY light
18. Actual temperature display
19. Down key for multipurpose
display
20. Enter key
