Installation
A1-35
E 2000 Nordson Corporation
All rights reserved
41-3000V
Issued 5/00
A3EN-04-[3V-A-AAXP]-12
2. Remove this three-phase voltage plug from connector X3 and replace
it with the appropriate voltage plug supplied in the installation kit. A
voltage plug is shown in Figure A 1-25. The part number of the plug
you must install is listed in Table A 1-9 and on the label of the
electrical enclosure lid.
Table A 1-9 Voltage Plug Part Numbers
Type of Service
Part Number of
Single-Phase Plug to Install
200--240 VAC single phase 227 567
230 VAC (with neutral) single phase 232 617
NOTE: If you are supplying 230 VAC (with neutral) single-phase
service, the voltage plug consists of two connectors jumpered
together. The large plug connects to connector X3 on the power
board and the small plug connects to connector X4, which is located
next to connector X3.

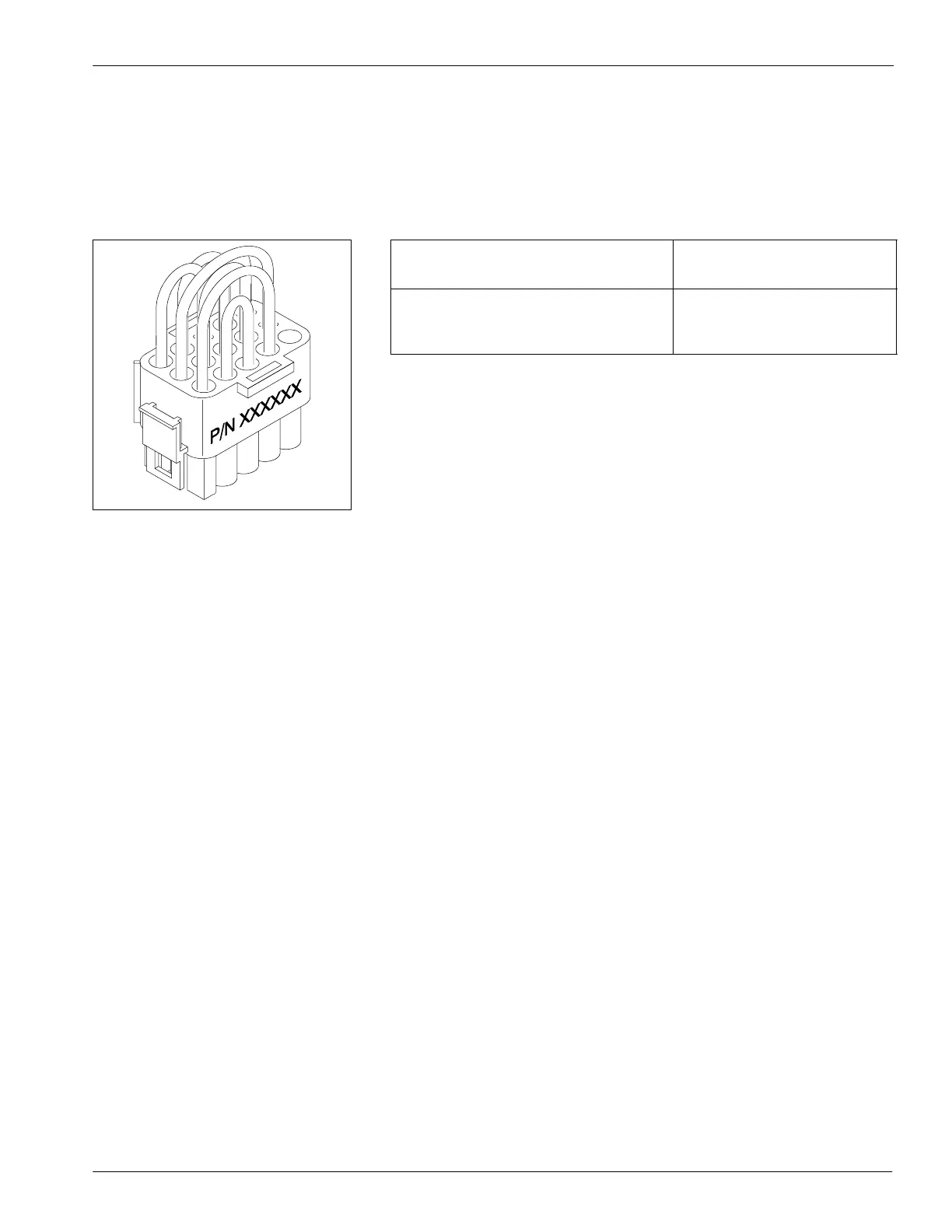

Fig. A 1 -25 Typical Voltage Plug
