3. Determine whether your unit is equipped with a contactor board,
which is located on a large bracket at the rear of the electrical
enclosure, as shown in Figure A 1-26.
4130550
2
1

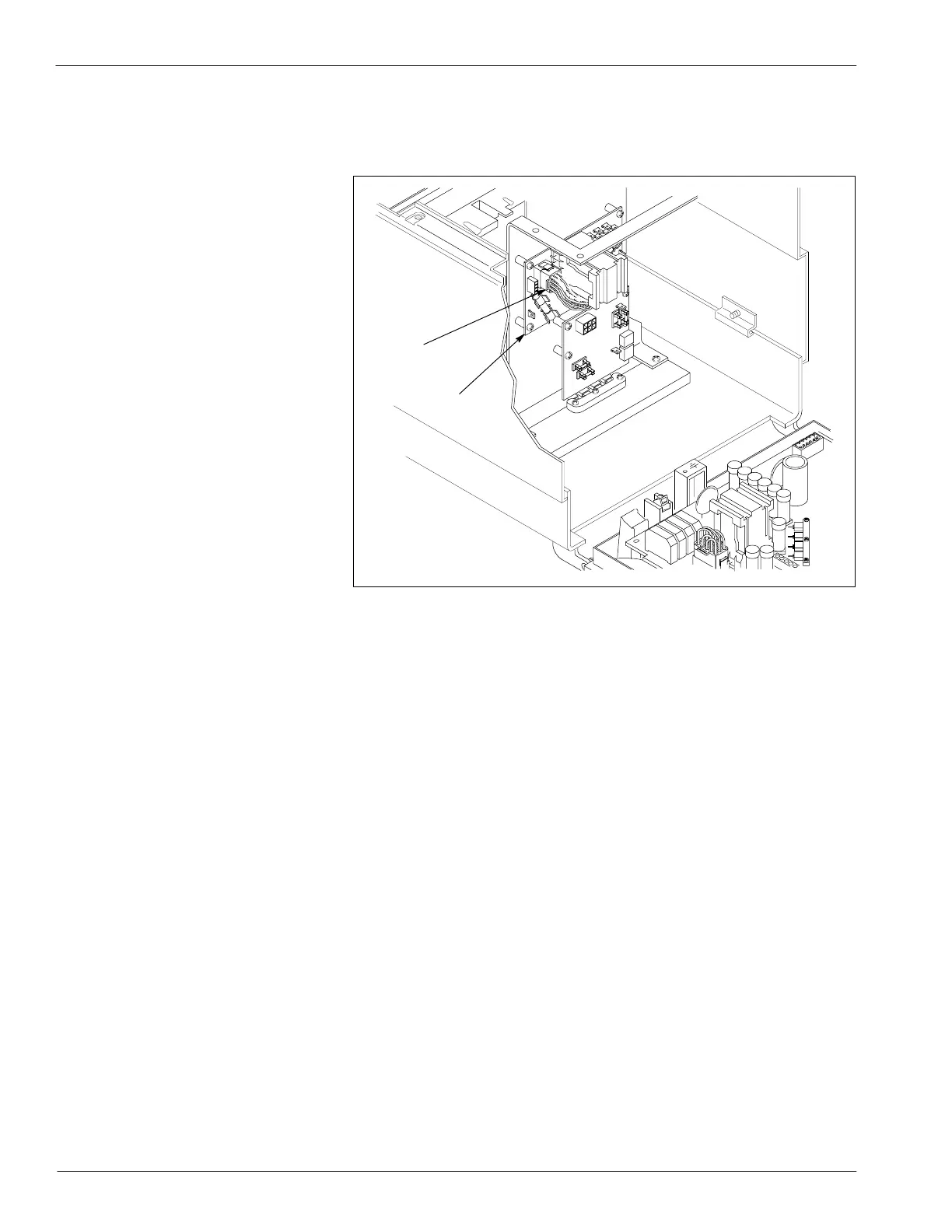

Fig. A 1 -26 Location of Contactor Board
1. Contactor board 2. Wiring harness X1C/X2C
4. If your unit has a contactor board, go to step 5. If it does not, go to
the next procedure, Closing the Electrical Enclosure.
5. Find wiring harness X1C/X2C on the contactor board and remove it.
It is identified in Figure A 1-26.
