Description - Mini Cyclone
The Mini Cyclone is used as an accumulator for virgin and reclaimed
powder. Both are fed to the Mini Cyclone in order to mix and blend prior to
sieving. By default, it has usable 2 inlets with a possibility to add a further 8
connections if required.
1
3
4
2
6
5

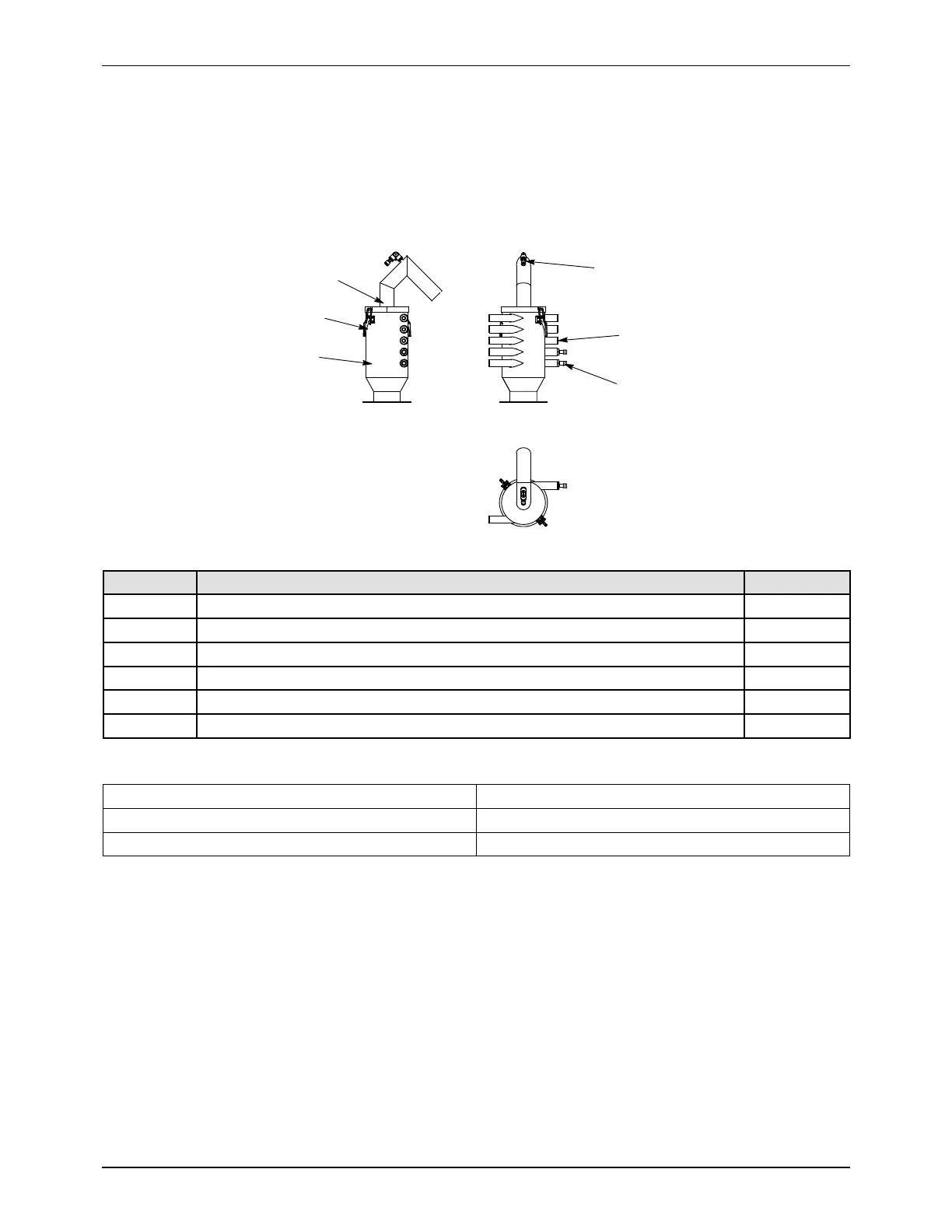

Figure 10 Mini Cyclone assembly
Item Description Notes
1 Mini Cyclone Body
2 Over centre clamp- GH- 40323- SS
3 Mini cyclone lid
4 Push in fitting 8 mm
5 Blind Plug 1/2”
6 Hose Tail 1/2” 13mm
Dimensions
Height (including top vent)
532 mm
Length (over inlet tubes) 250 mm
Depth ( excluding top vent) 160 mm
