Nordyne JT5BD Series User Manual

12

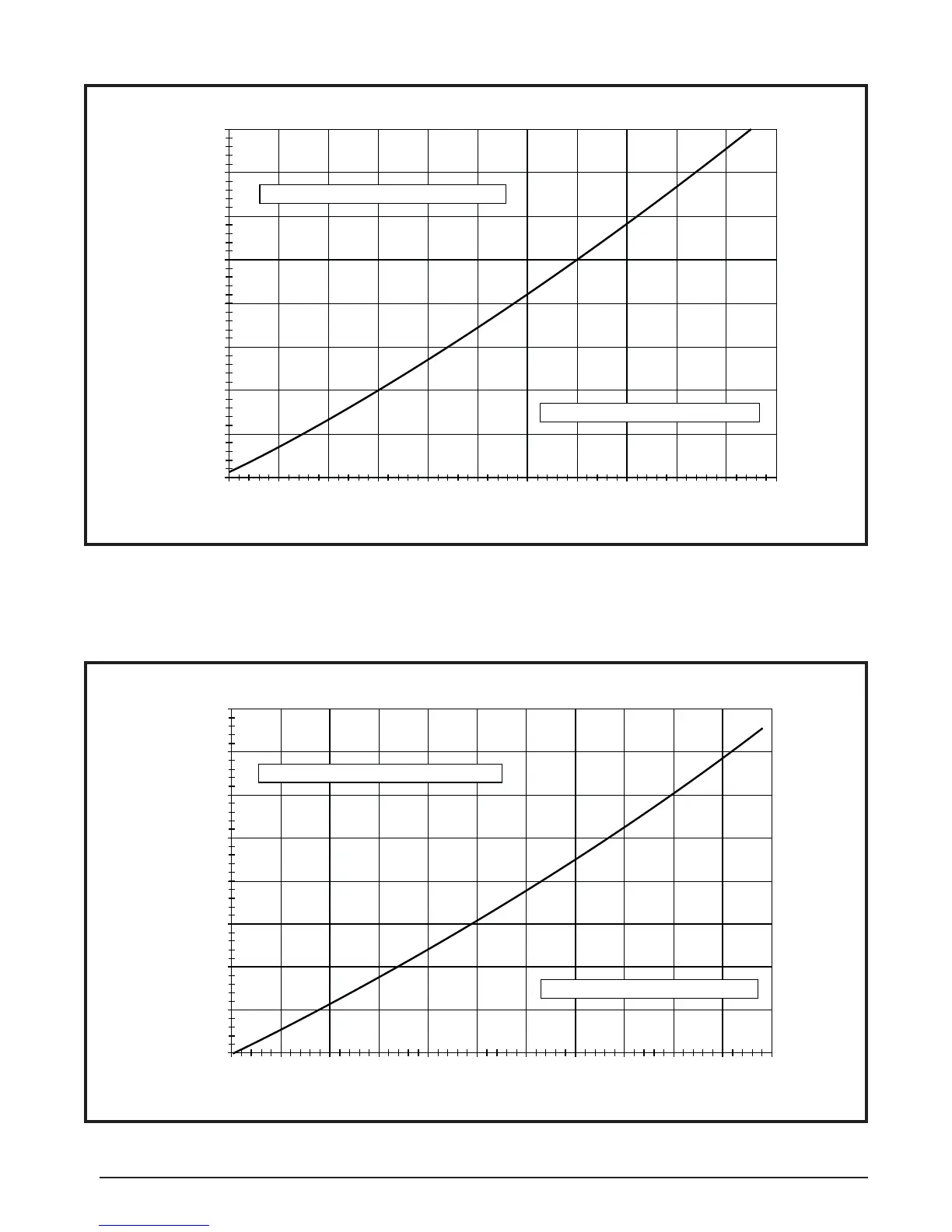

Figure 7. Charging Chart for 2 Ton Units
JT5BD-024KA Charging Chart
150
175
200
225
250
275
300
325
350
75 80 85 90 95 100 105 110 115 120 125 130
Liquid Temperature (F)
Liquid Pressure (psig)
Add refrigerant when below curve
Remove refrigerant when above curve
Figure 8. Charging Chart for 2.5 Ton Units
JT5BD-030KA Charging Chart
150
175
200
225
250
275
300
325
350
75 80 85 90 95 100 105 110 115 120 125 130
Liquid Temperature (F)
Liquid Pressure (psig)
Add refrigerant when below curve
Remove refrigerant when above curve
