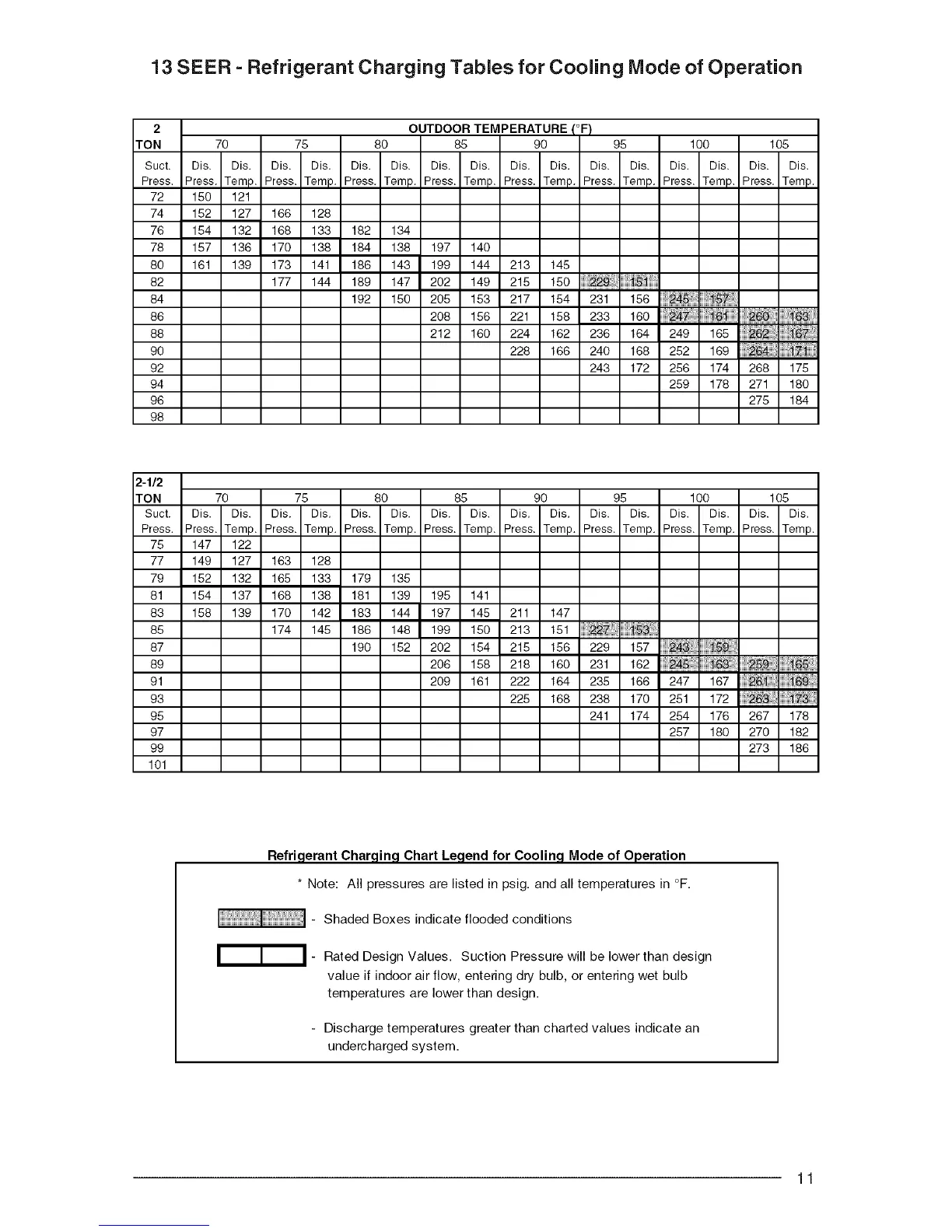

13 SEER - Refrigerant Charging Tables for Cooling Mode of Operation
2 OUTDOOR TEMPERATURE (°F)
TON 70 75 80 85 90 95 100 105
Suct. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis.
Press. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp.
72 150 121
74 152 127 166 128
76 154 132 168 133 182 134
78 157 136 170 138 184 138 197 140
80 161 139 173 141 186 143 199 144 213 145
82 177 144 189 147 202 149 215 150 _22_ 1_5!
84 192 150 205 153 217 154 231 156 _ , _:57
86 208 156 221 158 233 160
88 212 160 224 162 236 164 249 165 62 . _;67
90 228 166 240 168 252 169
92 243 172 256 174 268 175
94 259 178 271 180
96 275 184
98
2-1/2
TON 70 75 80 85 90 95 100 105
Suct. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis. Dis.
Press. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp. Press. Temp.
75 147 122
77 149 127 163 128
79 152 132 165 133 179 135
81 154 137 168 138 181 139 195 141
83 158 139 170 142 183 144 197 145 211 147
85 174 145 186 148 199 150 213 151 227 _3
87 190 152 202 154 215 156 229 157 24 , :1_5_
89 206 158 218 160 231 162
91 209 161 222 164 235 166 247 167 !2_ . _i69
93 225 168 238 170 251 172 26 . _J3
95 241 174 254 176 267 178
97 257 180 270 182
99 273 186
101
Refrigerant Charging Chart Legend for Cooling Mode of Operation
* Note: All pressures are listed in psig. and all temperatures in °F.
- Shaded Boxes indicate flooded conditions
- Rated Design Values. Suction Pressure will be lower than design
value if indoor air flow, entering dry bulb, or entering wet bulb
temperatures are lower than design.
- Discharge temperatures greater than charted values indicate an
undercharged system.
11
