3 4Adjustmentofpalonnier/toplinkassembly
A palonnier/top link adjustment kit is tted to reduce the potential stresses on the machine/tractor
combination when travelling at higher speeds between worksites.

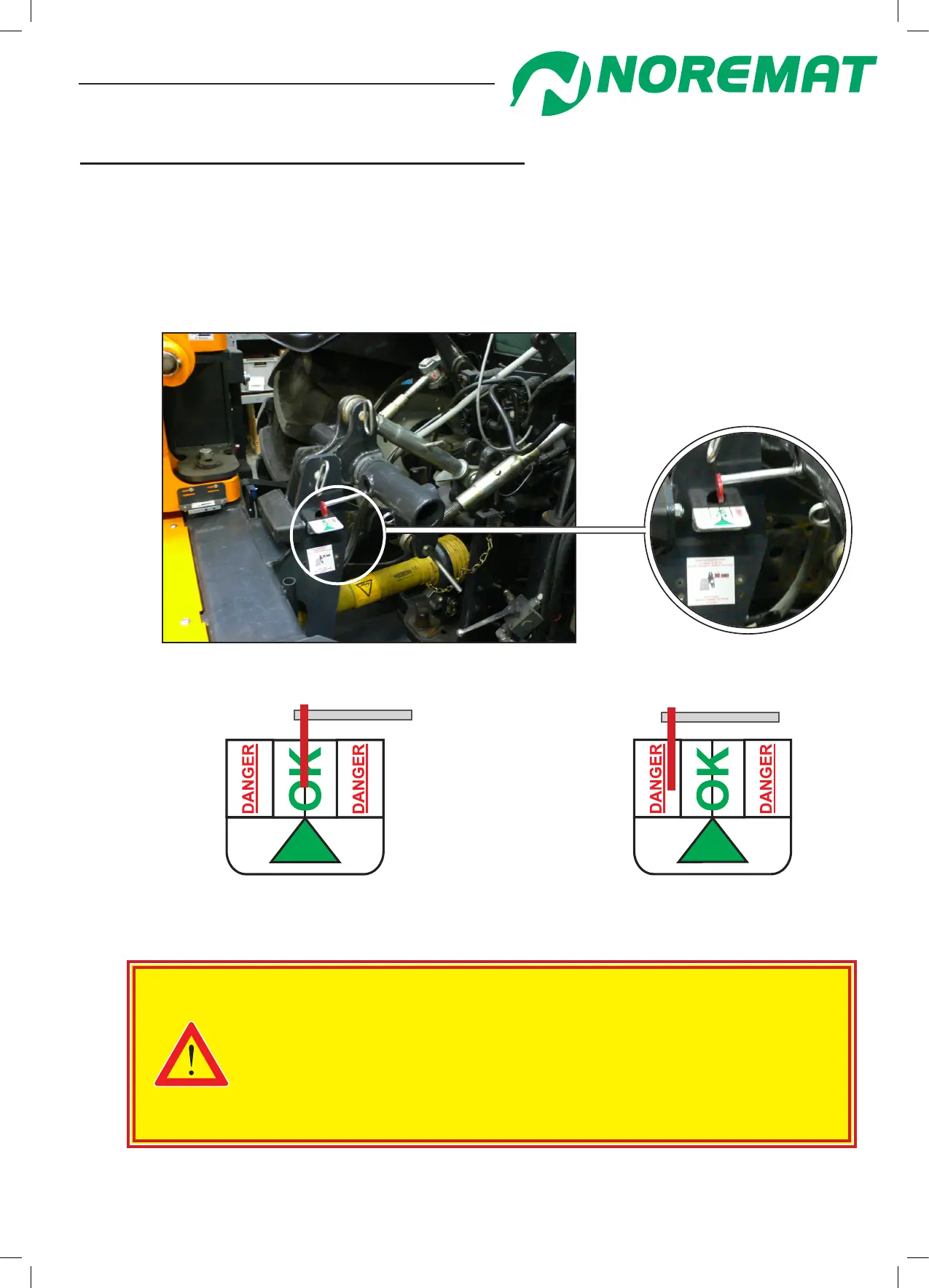

With the tractor lift arms fully raised (engine running), the indicator (red disc)
should lie within the ‘OK’ section of the indicator plate and never in the red ‘Danger’ sections.
gure 1.24
Technical characteristics
Correct Adjustment of Palonnier Incorrect Adjustment of Palonnier
If the red disc is in either <DANGER> section:
Do not use the machine: check the following:
- the position of the tractor lift arms.
- the position of the palonnier adjustment links.
IN CASE OF UNCERTAINTY OR OF CHANGING MACHINE/TRACTOR,
CONTACT YOUR NOREMAT TECHNICIAN.
