Noritz NR71-OD - General Parts; Main Unit Component Identification

8
NR71-SV, NR66-SV
Indoor/Outdoor Wall Mounted, Power Vented Model
* Theaboveillustrationshowsanexampleofinstallation.
The exact installation conguration may be slightly different.

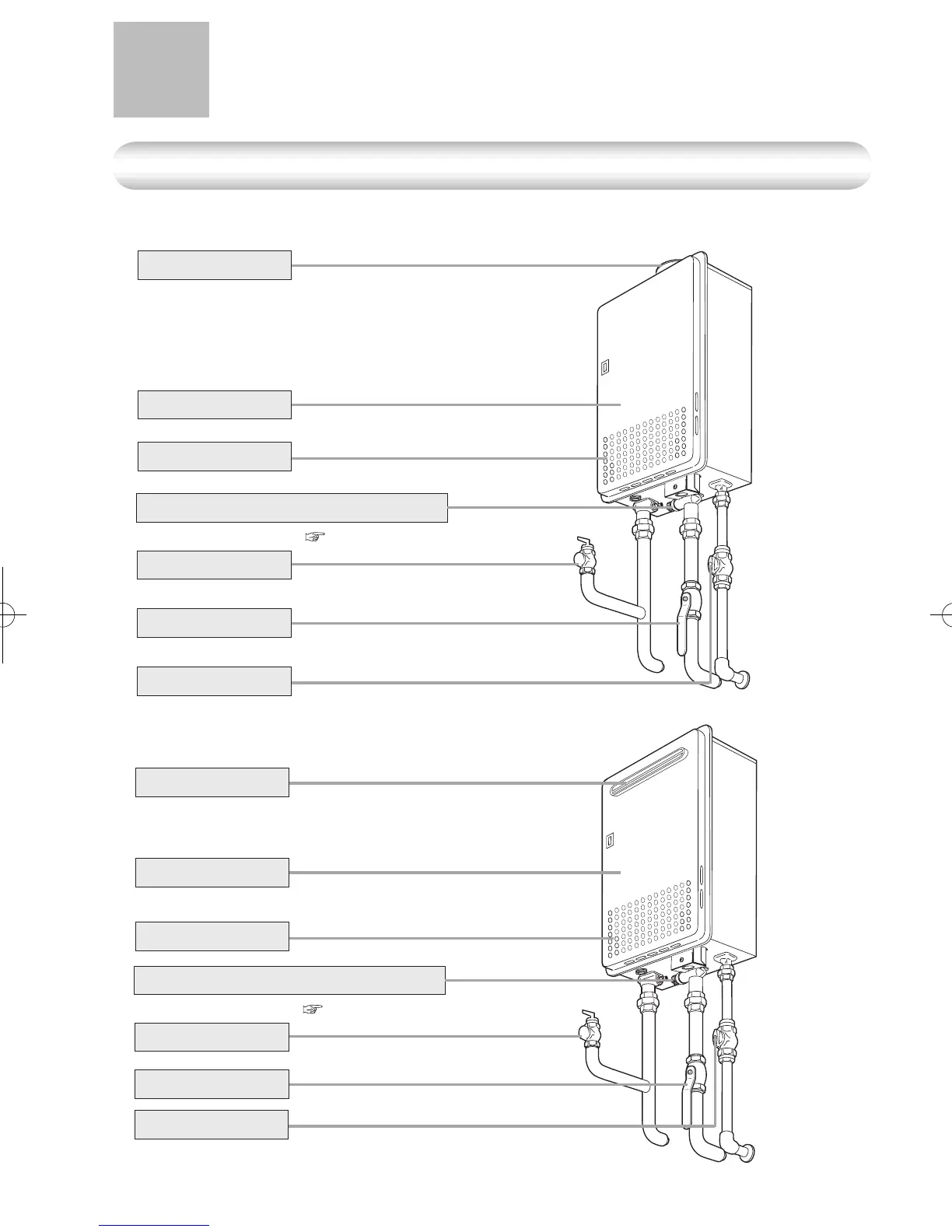

Main Unit
Flue Collar
FrontCover
Air Inlet
WaterSupplyValve
GasSupplyValve
WaterDrainValve(withWaterFilter)
(Inside Water Inlet) ( p.21)
PressureReliefValve
General Parts
NR71-OD, NR66-OD, NR50-OD
Outdoor Wall Mounted, Power Vented Model
ExhaustVent
FrontCover
Air Inlet
WaterSupplyValve
GasSupplyValve
WaterDrainValve(withWaterFilter)
(Inside Water Inlet) ( p.21)
PressureReliefValve
(Ex. NR71-SV)
(Ex. NR71-OD)
