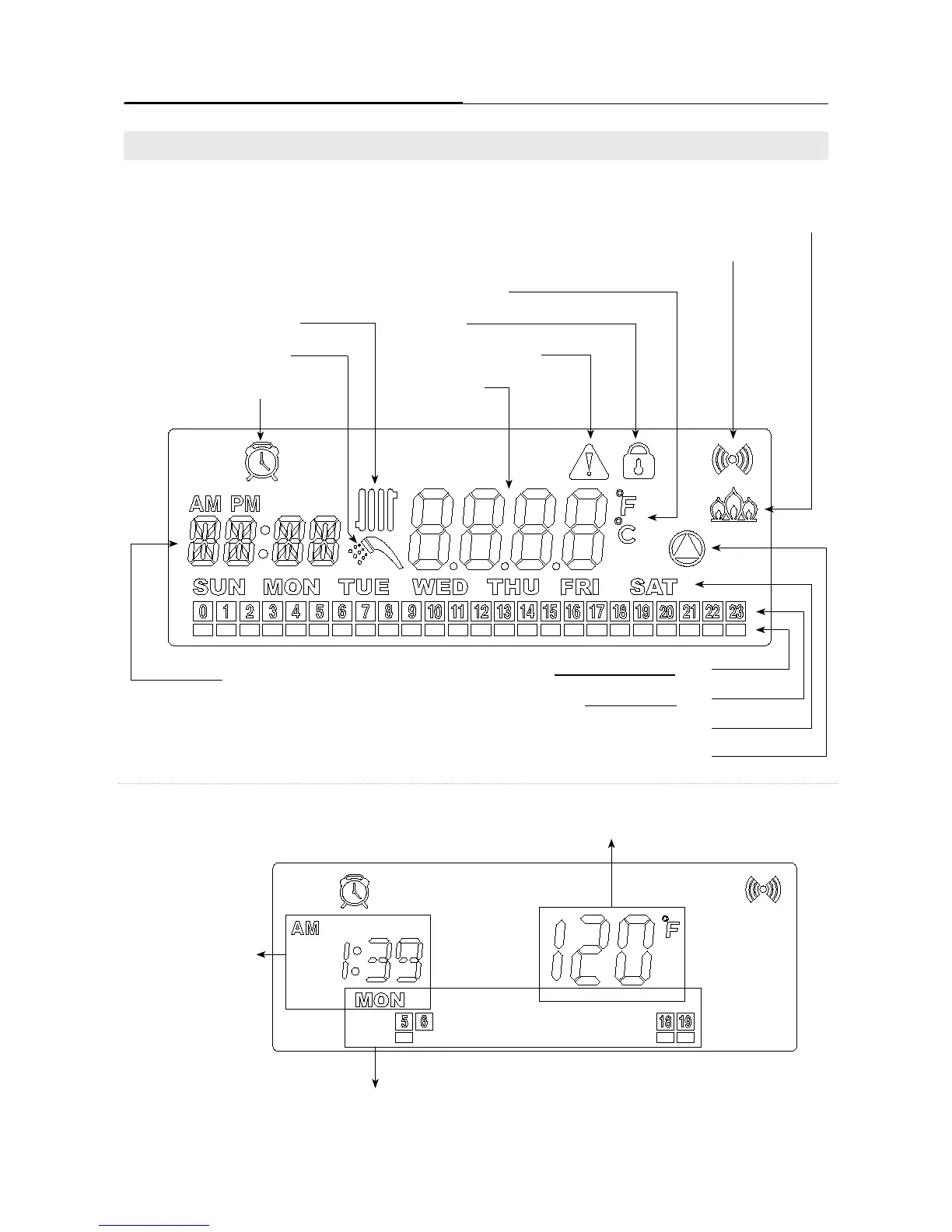

Control Panel LCD Interface
Chapter3.–UnitOperation
HotWaterOperatingIcon
RecirculationTimerIcon
ClockDisplay
TimerSetting(Displayedinunitsof30minutes)
TimerSetting(Displayedinunitsof1hour)
CurrentandScheduledDay
CURRENTTIME:AM1:39
CURRENTDAY:MONDAY
TIMERSETTING:MONDAY5:00~6:00,18:00~19:30
DESIREDHOTWATERTEMPERATURE:120
°F
PumpOperatingIcon
[Example]
ExternalRecirculationIcon
StatusDisplay
HighTemperatureIcon
TemperatureUnit
LockMode
CommunicationStatus
CombustionIcon
Control Panel LCD Interface
LCD has a backlight that will illuminate:
• When a user action is detected (a button is pressed)
• Turns off when no action within approximately 20 seconds.
