Alterations which serve the technological progress as well as errors excepted! ORIGINAL MANUAL NORSUP
WWW.NORSUP.EU Alterations which serve the technological progress as well as errors excepted!
3. INSTALLATION AND CONNECTION
3.1 INSTALLATION ILLUSTRATION
Installation items
The factory only provides the main unit and the water
unit; the other items in the illustration are necessary
spare parts for the water system, that provided by
users or the installer.
The schematic diagram is for reference only. Please
check the water inlet/outlet label on the heat pump
while plumbing installation.
The controller is mounted on the wall.

3.INSTALLATION AND CONNECTION
3.1 Installation illustration
supply
Installation items:
The factory only provides the main unit and the water unit; the other items in the illustration are
necessary spare parts for the water system ,that provided by users or the installer.
Attention:
Please follow these steps when using for the first time
1.Open valve and charge water.
2.Make sure that the pump and the water-in pipe have been filled with water.
3.Close the valve and start the unit.
ATTN: It is necessary that the water-in pipe is higher than the pool surface.
The schematic diagram is for reference only. Please check the water inlet/outlet label on the
heat pump while plumbing installation.
The schematic diagram is for reference only. Please check the water inlet/outlet label on the
heat pump while plumbing installation.
The controller is mounted on the wall
Chlorinator cell Water outlet
Valve
Water
Water inlet
Sand filter
Water pump
Pool
(or other type filter)
ATTENTION
Please follow these steps when using
for the first time
1. Open valve and charge water.
2. Make sure that the pump and the water-in
pipe have been filled with water.
3. Close the valve and start the unit.
Attention
It is necessary that the water-in pipe is higher
than the pool surface.
�
2.SPECIFICATION

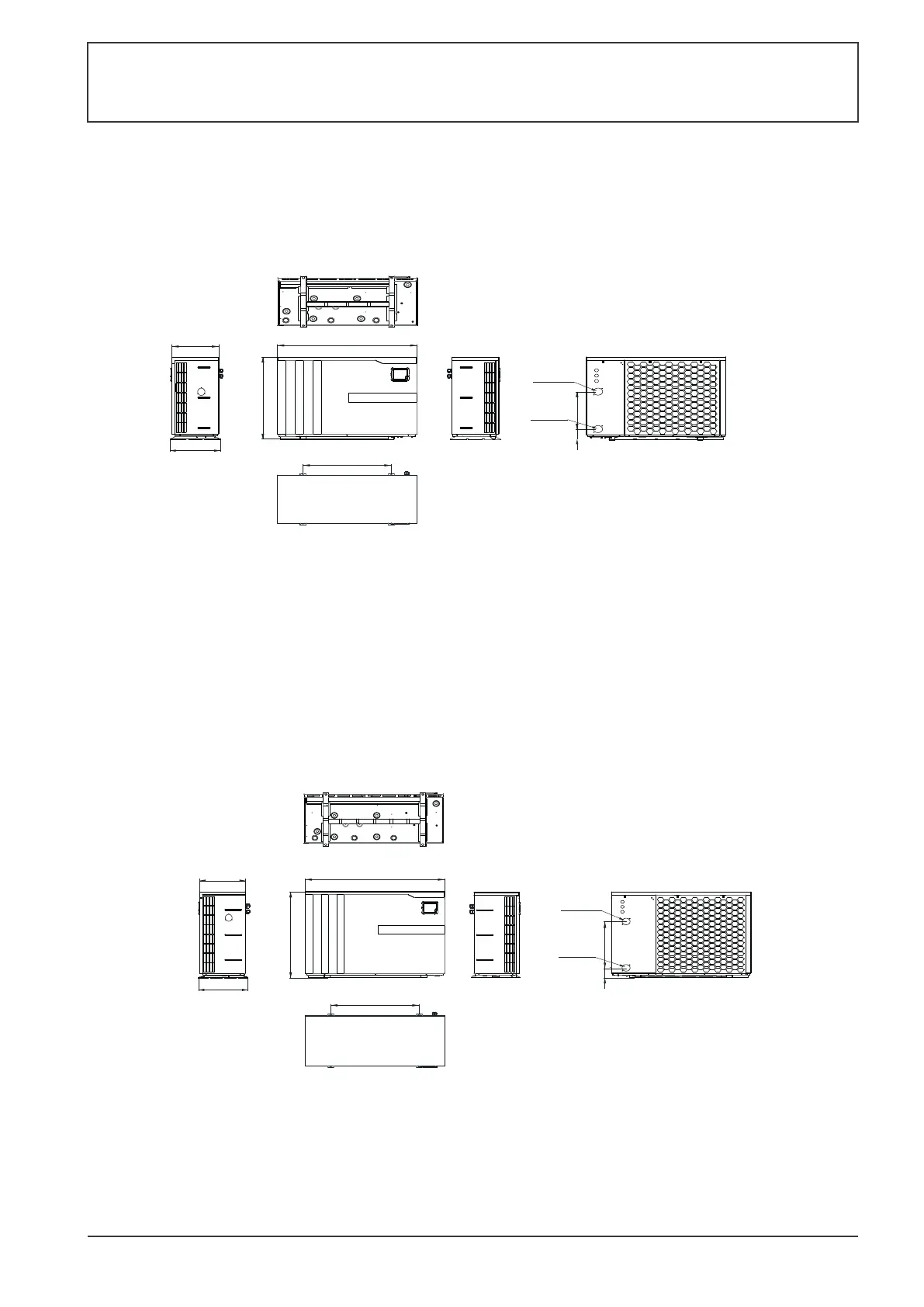

2.2 The dimensions for Swimming Pool Heat Pump Unit
2.2 THE DIMENSIONS FOR SWIMMING POOL HEAT PUMP UNIT
2.2 The dimensions for Swimming Pool Heat Pump Unit
UNIT: SP17
unit：mm
UNIT: P13X/32
unit：mm
water outlet
wa
φ50
φ50
ter inlet
645
1020
776
450
480
35
102
0
UNIT: SP20/SP28/SP28T/SP35T
unit：mm
φ50
φ50
water outlet
water inlet
800
1151
860
460
500
46 596
