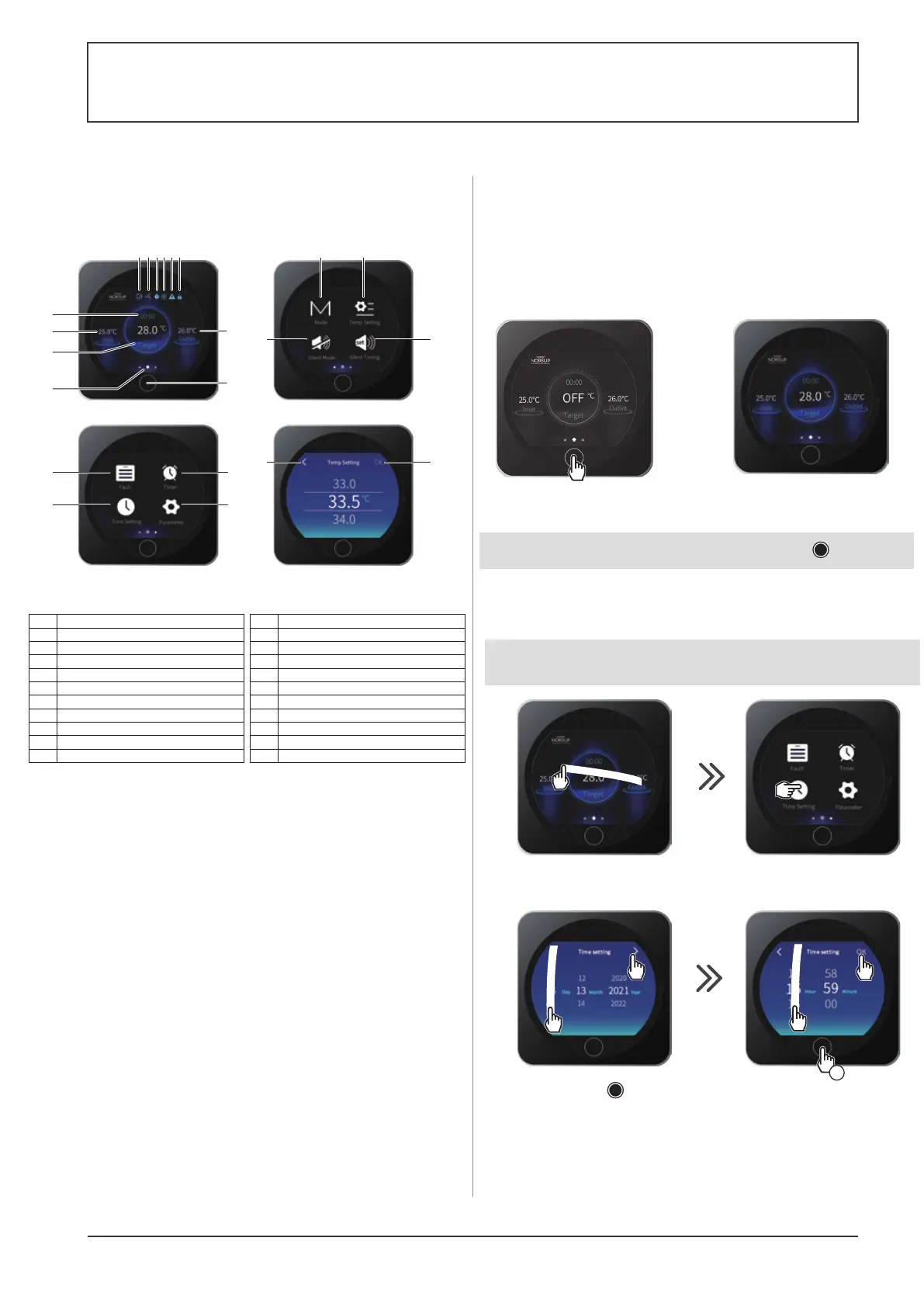

4.1 General presentation
The heat pump is equipped with a digital control panel with a touch screen,
electronically connected and pre-set at the factory in heating mode.
7
2 34
11
8
9
17
12
18
13
15
5 14
16
61
10
19
2122
20
Compressor’s ON indicator
Fan
Timer
Current mode
Alarm
Lock screen
Water output temperature
On/Off/Back
Main screen
Setpoint temperature
Legend
12
13
System time
14
15
16
17
Operating mode selection
18
Adjust setpoint
19
Setting silence mode timer
20
Activate silent mode
21
Set On/Off timers
Access advanced settings
Access list of faults
Set data and time
Confirm
Back (changes not confirmed)
Water input temperature 22
1
2
3
4
5
6
7
8
9
10
11
To switch from OFF to ON mode and vice versa, press the button for 0.5s.
OFF mode
When the heat pump is idle (in
standby mode), OFF is displayed as
shown on the screen.
The black screen indicates that the
heat pump is idle; settings can be
adjusted in this mode.
ON mode
When the heat pump is running or
priming (setpoint reached), the screen
turns blue.
6
5
4.2 Timer function settings
The date and time can be set either in ON or in OFF mode.
7
1x
2
4
3
•
Press 1 times on to return to the main screen.
1
4.3 Setting the On/Off timers
Setting this function is necessary if you would like to run the heat pump for a
shorter period than what is defined by the filtration clock. Therefore, you can
program a deferred start and an anticipated stop or simply stop a certain
timeframe from running (at night, for example).
It is possible to set one Start Timer and one Stop Timer.
The setting step is "hour to hour".
2
3
5
4
1
Blue highlighting = Activated
Grey = Deactivated
9
6
8
7
•
Press 2 times on to return to the main screen.
1
3
4
1x
2
•
Press 1 times on to return to the main screen.
4.5 Mode selection
2
4
5
1x
3
1
•
Press 1 times on to return to the main screen.
