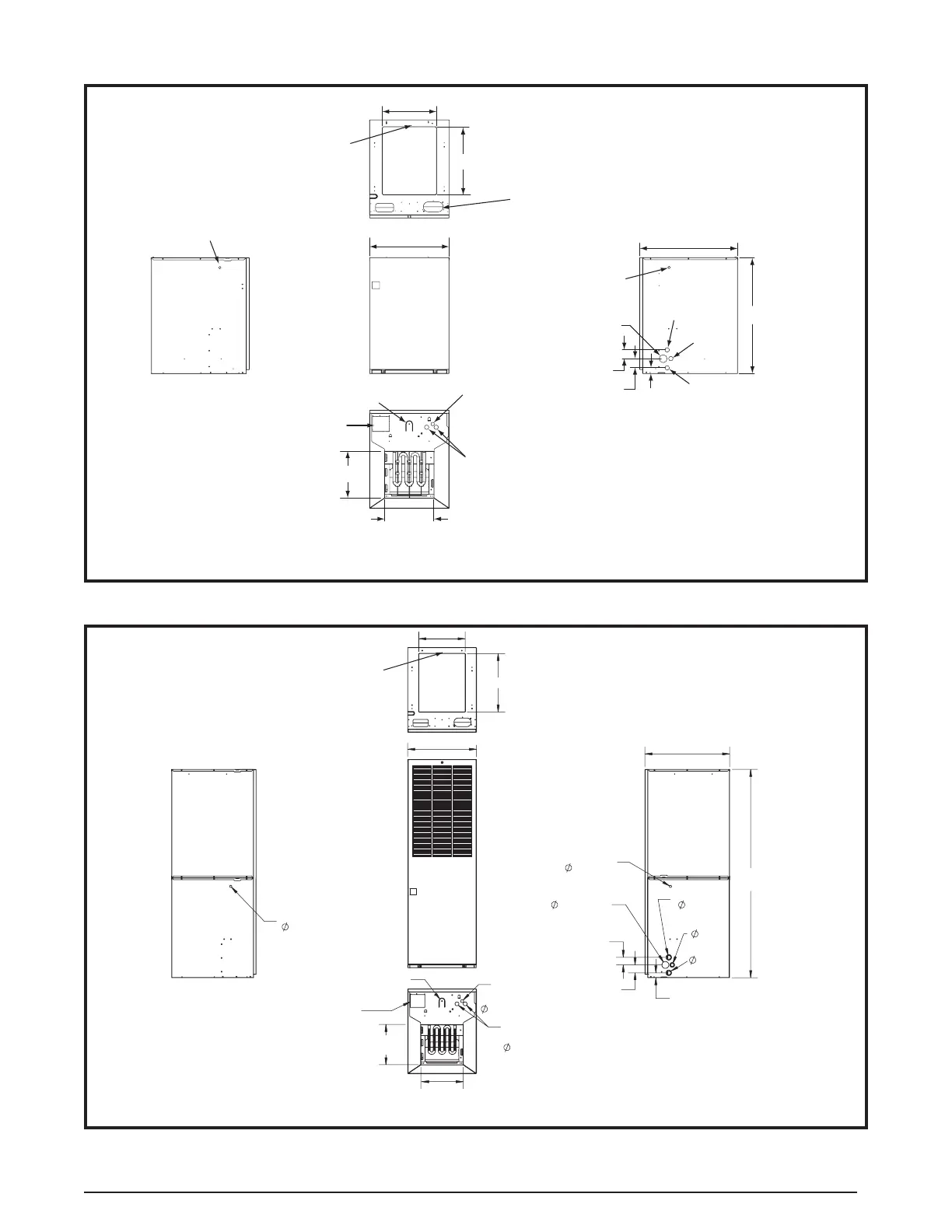

Figure 17. E7EM Physical Dimensions
20” (50.76)
29” (73.60)
24 1/2” (62.18)
1 3/8”
(3.49)
Ø 1 1/8” (2.86)
2 5/16”
(5.87)
2 1/4”
(5.71)
Ø 2” (5.08)
13 1/2” (34.26)
17” (43.15)
11 3/4” (34.26)
12 5/16”
(31.25)
T-Stat
(Ø 5/8” (1.59))
Electric
Ø 1 1/8” (2.86)
Ø 7/8”
(2.22)
T-Stat
(Ø 5/8” (1.59))
A.C. & H.P. Knockout
(4 1/4” (10.79) X 3 3/4” (9.52))
FRONT
VIEW
TOP
VIEW
LEFT
SIDE
BOTTOM
VIEW
RIGHT
SIDE
Refrigerant Line
Knockout
(1 1/2” (3.81) X 5” (12.69))
VentilAire Bracket
Attachment Location
Optional Electric
Ø 1” (2.54)
Optional Electric
Ø 5/8” (1.59)
Tie- Down Tab
Figure 18. E7EU & E7ED Physical Dimensions
FRONT
VIEW
TOP
VIEW
LEFT
SIDE
BOTTOM
VIEW
RIGHT
SIDE
20" (50.76 cm)
13 1/2"
(34.26 cm)
17" (43.15 cm)
24 5/8"
(62.50 cm)
60 5/8"
(153.87 cm)
1 7/16" (3.65 cm)
2 1/4" (5.71 cm)
2 5/16"
(5.87 cm)
7/8"
(2.22 cm)
2" (5.08 cm)
T-STAT
5/8" (1.59 cm)
ELECTRIC
1 1/8"
(2.86 cm)
1 1/8"
(2.86 cm)
RIGHT SIDE
T-STAT
5/8" (1.59)
LEFT SIDE
11 3/4"
(29.82 cm)
12 5/16" (31.25 cm)
OPTIONAL
ELECTRIC
1 " (2.54 cm)
TIE-DOWN TAB
A.C & H.P. KNOCKOUT
(4 1/4" (10.79) X
3 3/4"
(9.52) )
OPTIONAL
ELECTRIC
7/8" (2.22 cm)
VentilAire Bracket
Attachment Location
(E7ED)
