Network Bullet Camera·Quick Start Guide
17
17
3. Tighten the lock screw 2.
Rotation Adjustment
Steps:
1. Loosen the lock screw 3.
2. Rotate the rotation position to adjust the azimuth angle of the
image. The adjusting range is from 0 degrees to 360 degrees.
3. Tighten the lock screw 3.
3
2
1
Lock Screw 1
0° to 360°
0° to 100°
0° to 360°
Lock Screw 2
Lock Screw 3
Panning
Tilting
Rotation
1
2
3

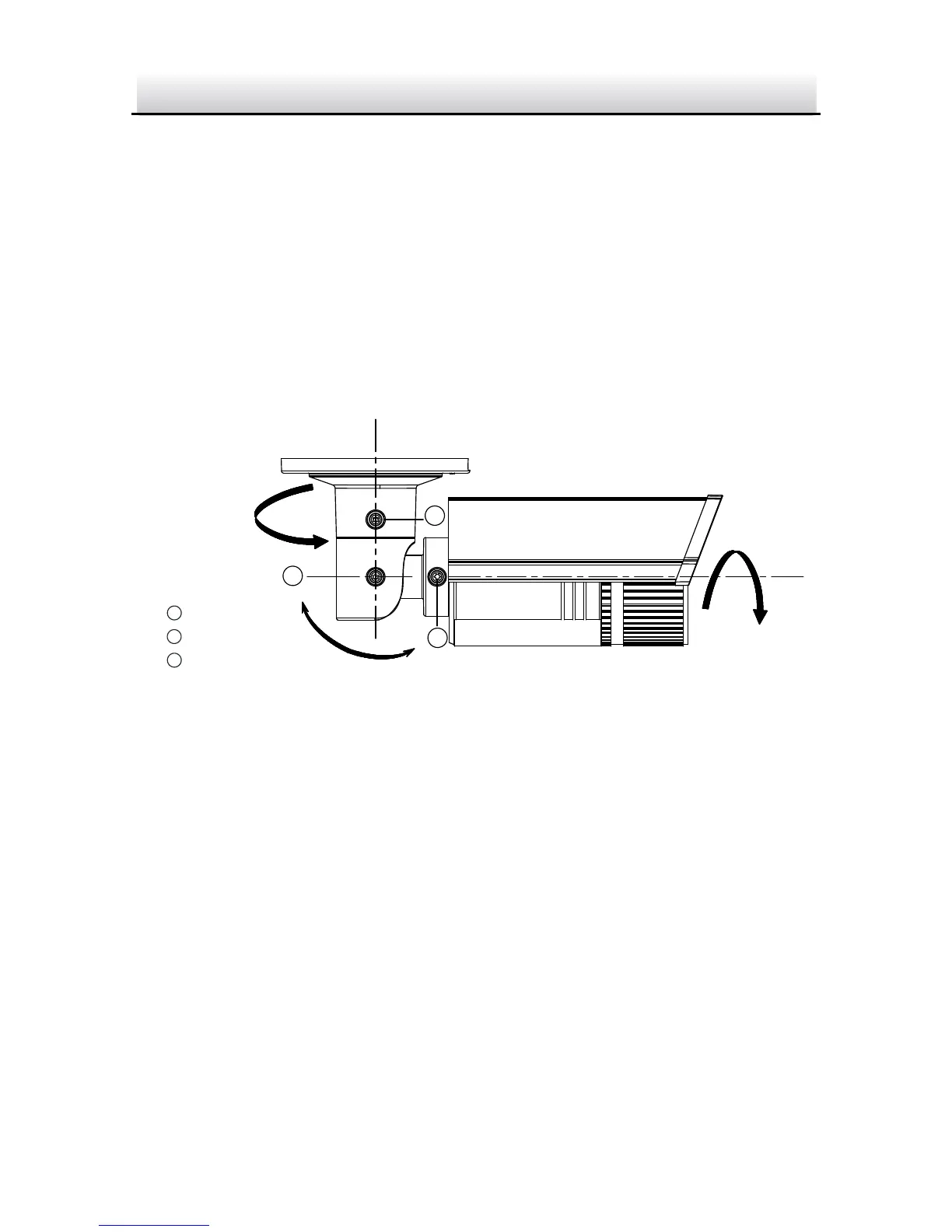

Figure 2-7 View Angle Adjustment
7. Adjust zoom and focus. Refer to Section 2.4 for more detailed
information.
8. (Optional) Install the water-proof jacket for network interface.
Refer to Section 2.5 for detailed installation procedures.
