The 657 can show two windows at once.
Adding a window to the display
Press , select Add window and select a
window to add. The 657 automatically rearranges
the display to show the new window.
Changing window size
1 Press
and select Split ratio.
2 Press or to change the height of the
windows.
Note: Some windows are fixed in size.
3 Press .
Exchanging two windows on the display
1 Press
twice to change the active
window.
2 Press , select Replace and select the
second window.
The 657 exchanges the two windows.
Replacing a window on the display
1 Press
twice to change the active
window.
2 Press , select Replace and select a
new window that is not currently visible.
Note:
When some windows are small then not all the
data is shown.
The active window
If there is more than one window displayed, the
active window is indicated by a red border. Press
twice to change the active window.

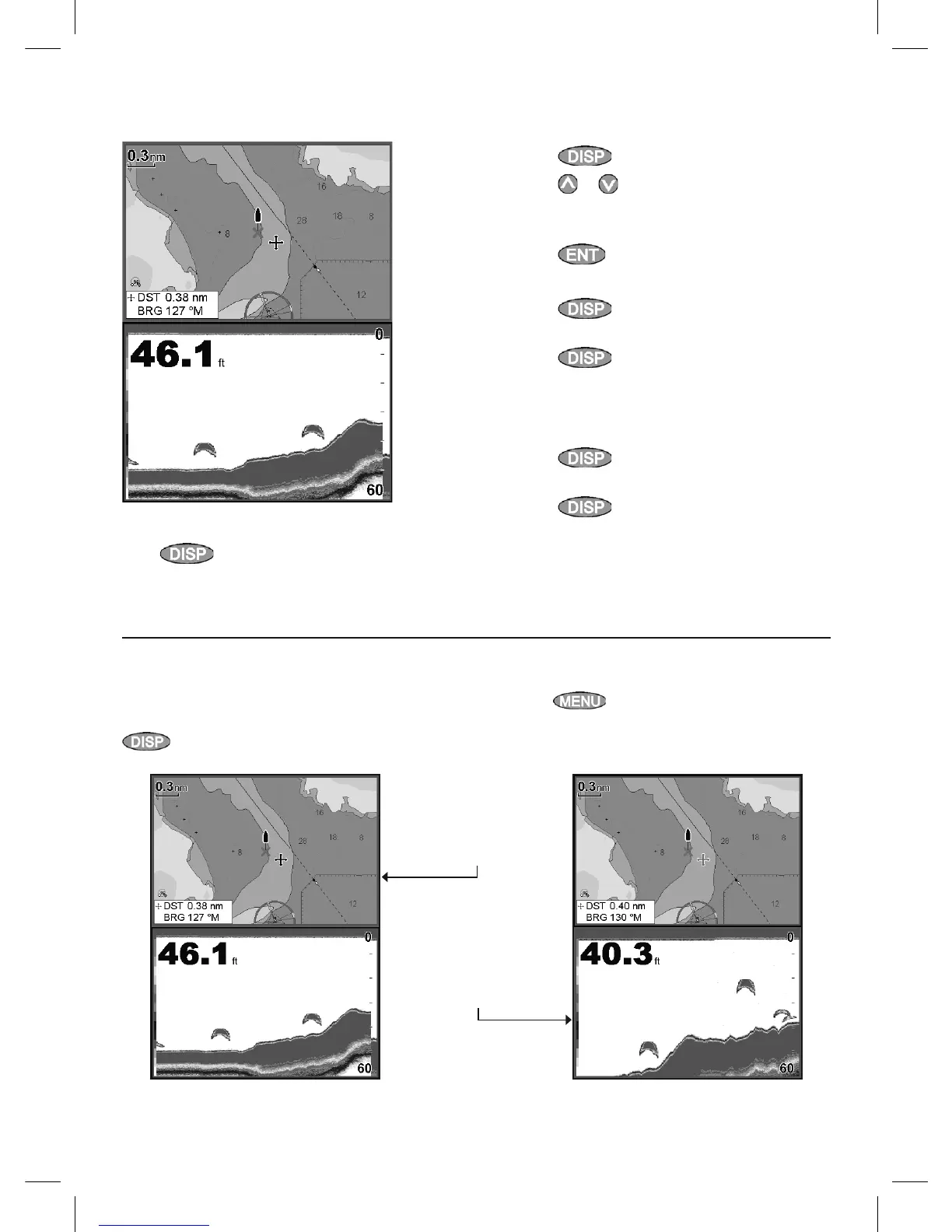

2-7-1 Multi window displays
Sonar is active
Red border
Pressing will display the options menu for
the active window.
Chart is active
Red border
