21Northstar Explorer 657 Installation and Operation Manual

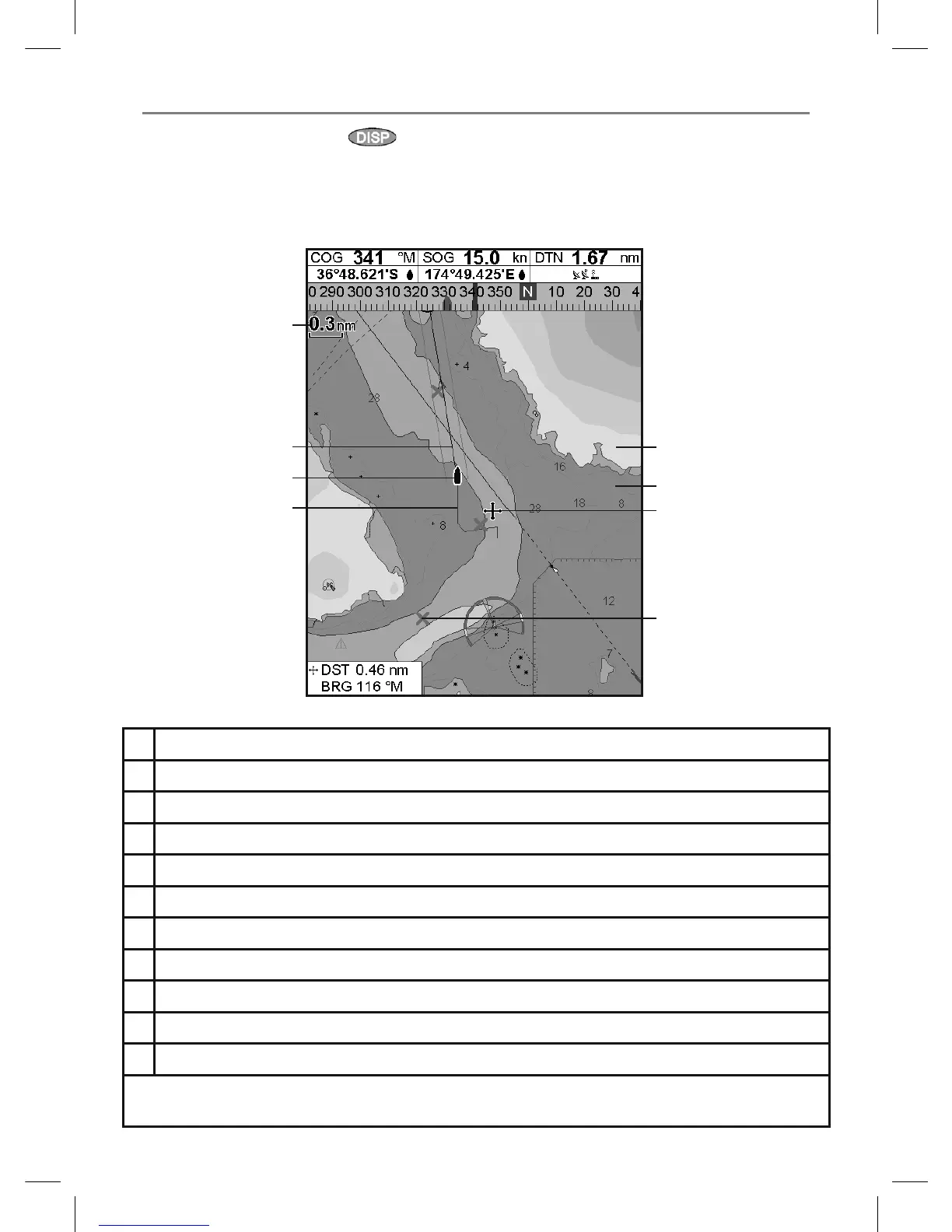

A typical chart window shows:
3-2 Chart window
A
B
K
C
D
E
F
G
I
J
H
A Data header. To turn the data off or on or to change what data is displayed, see section 2-7-3
B Compass (see section 2-7-4)
C Chart scale (see section 3-2-3)
D Boat position (see section 3-2-1)
E Boat track (see section 3-5)
F Boat course and CDI lines (see Appendix C, CDI).
G Distance and bearing of cursor from boat
HLand
ISea
J The cursor (see section 3-2-1)
K A typical waypoint (see section 5)
Note: To change the types of information displayed on the chart, see section 17-2. To change to a
perspective view of the chart, see section 3-2-6.
To go to the Chart window, press
then
select
Chart.
