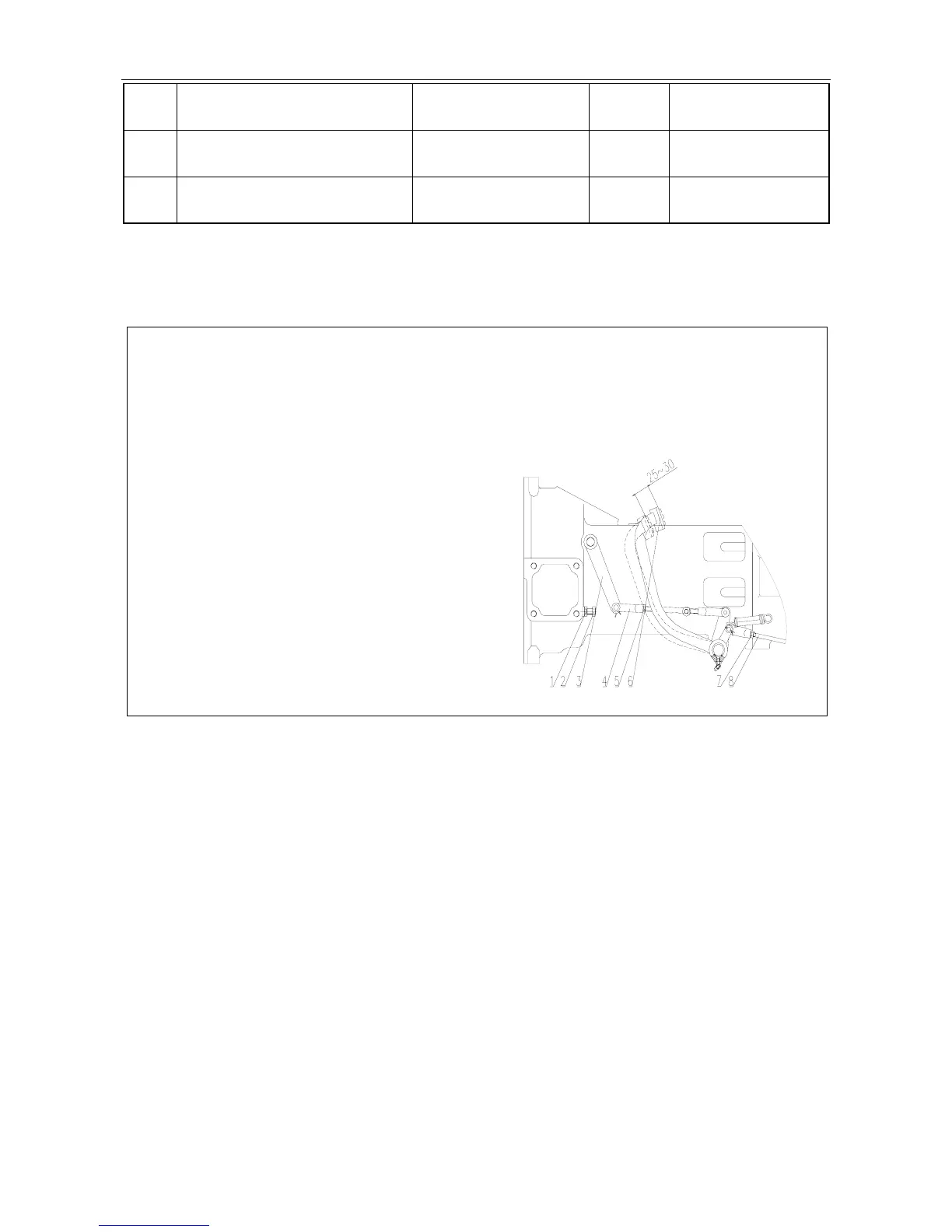

Figure 4-2 Schematic drawing of
the operating system of the clutch
No. Maintenance Part Operation Content Number
of Points
Maintenance Period
31 Front drive axle central drive Replace the lubricating
oil
1
Per 1600 hours
32 Front drive axle final drive Replace the lubricating
oil
1
Per 1600 hours
4.2 Clutch Pedal Adjustment
4.2.1 Clutch Adjustment
The adjustment method of the clutch pedal working stroke is as flollows:
Loosen the nut (1) (as shown in Frgure 4.2, unmarked dimension unit: mm), turn the stop screw (2) to
make the working stoke below the clutch rocker arm (3) 23-26mm and then lock the nut (1).
1. Lock nut 2. Stop screw
3. Release rocker arm
4. Pull rod front fork
5. Screw nut 6. Clutch pedal
7. Locknut 8. Interlock pull rod
