Maintenance Instruction
51
4.4 Differential Lock Adjustment
Adjustment of differential lock is performed through adjustment of the bolts (1 and 2). During the
adjustment, the clearance between the right coupling (3) and left coupling (4) is about 2mm. Loosen the nut (2)
and rotate the bolt (1) in, and the clearance increases. Rotate the bolt (1) out, and the clearance is reduced. After
adjustment, fasten the nut (2).
F

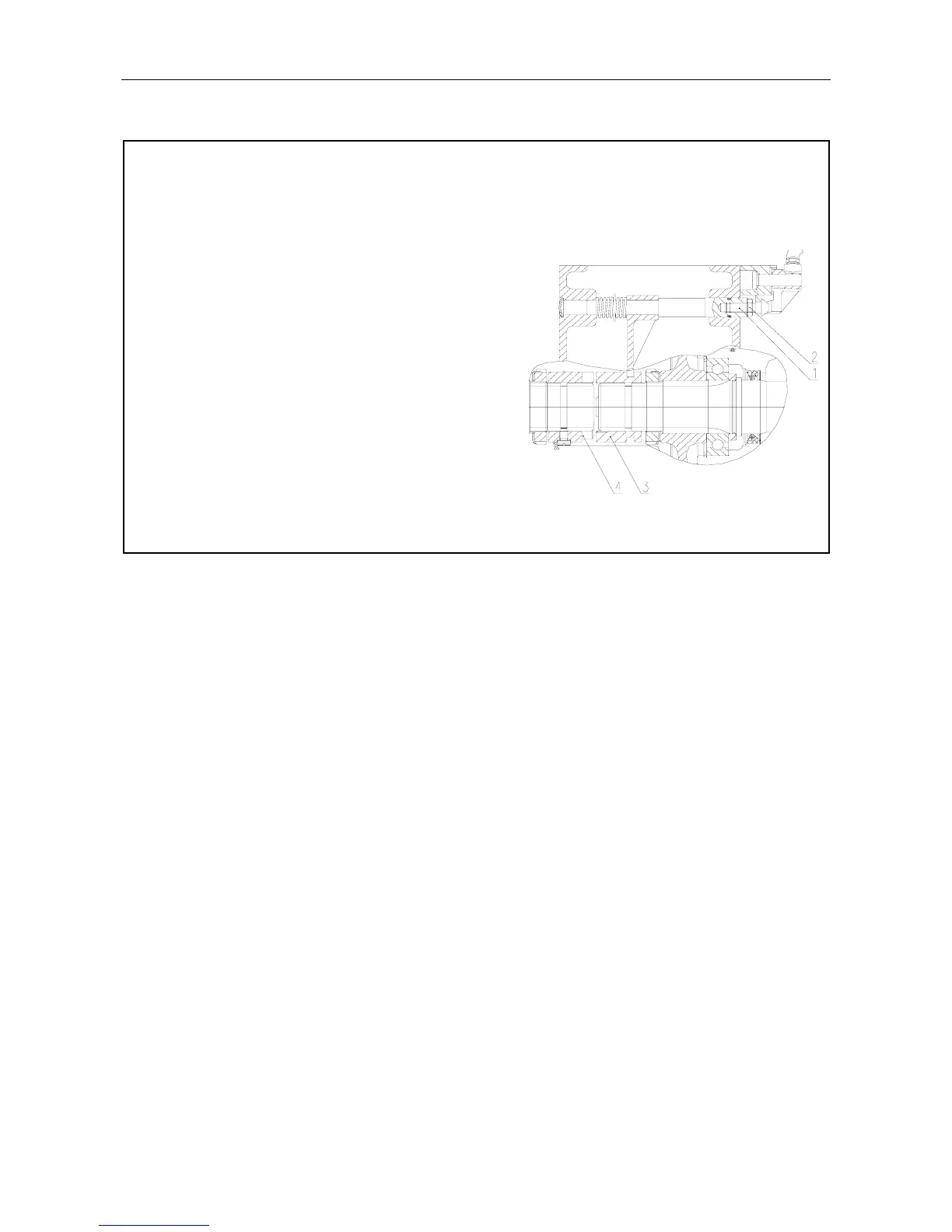

Figure 4-7 Differential Lock Adjustment
1. Adjustment bolt 2. Lock nut 3. Right coupling 4. Left coupling
