Instruction on maintenance
59

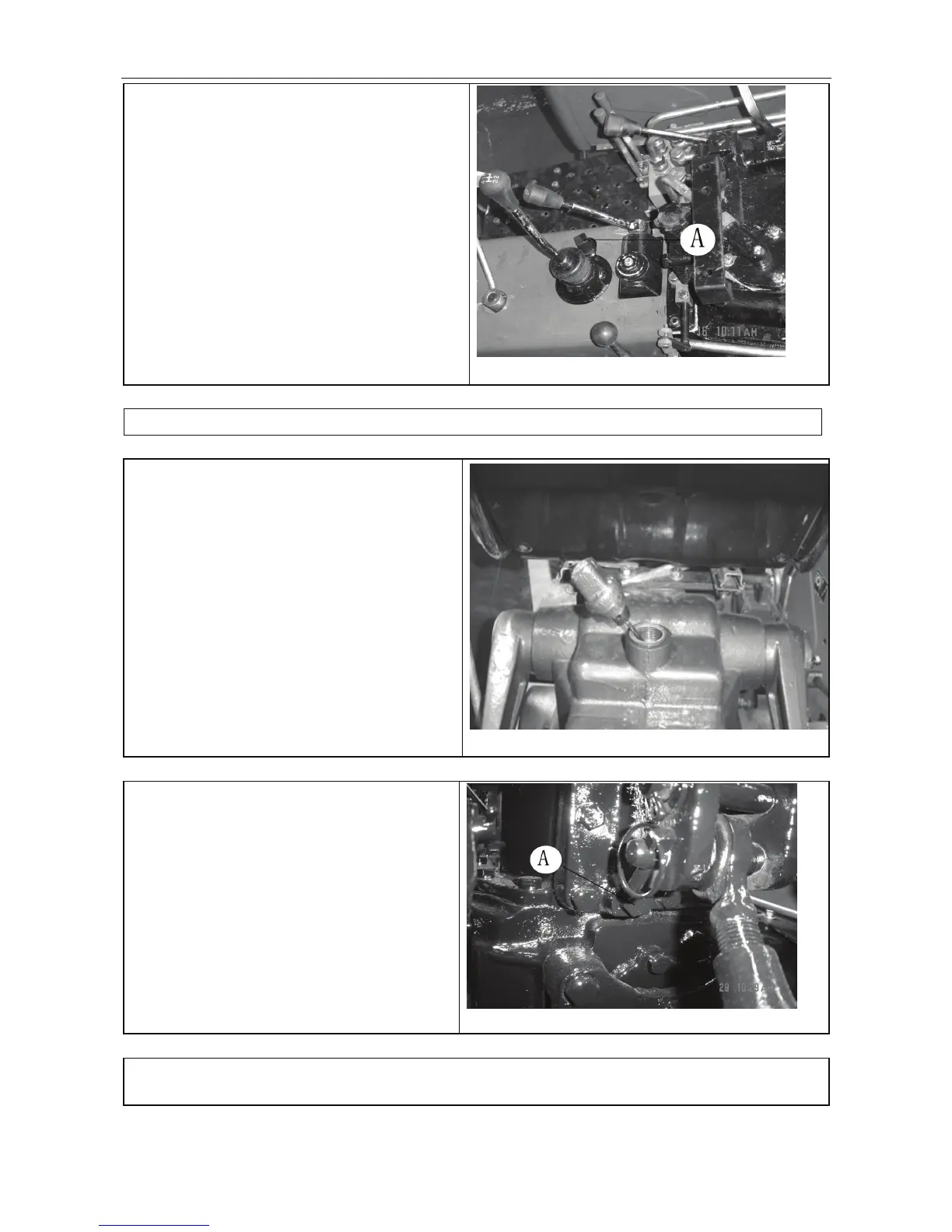

4.16 Transmission Mechanism Maintenance
Pull out the oil dipstick on the right of the main
gear lever (as show in in the figure), wipe it clean
and then insert the oil dipstick. If the oil level is
lower than the lower scale mark, refill the
transmission oil to a level between the upper scale
mark and the lower scale mark of the dipstick
(measure the level 5 minutes after adding the oil).
When replacing the transmission oil, remove the
drain plug at the bottom of the transmission case,
discharge all of the dirty oil and then tighten the
drain plug and refill with new transmission oil.
Figure 4-28 Transmission Mechanism Maintenance
Note: When checking the oil level, stop the tractor on level ground and switch off the engine.
4.17 Lifter Assembly Maintenance
• Unscrew the fill plug at the back upper part of
the lifter shell (as shown in the figure). If the oil
level is lower than the upper scale mark of the
dipstick refill.
Figure 4-29 Lifter Oil Dipstick
NOTE: Stop the tractor on level ground, descend the lift arm to the lowest position, switch off the engine and
then check the oil level.
• When replacing the trans-hydraulic oil,
unscrew the drain plug (A) on the back lower
part of the lifter, drain the dirty oil, tighten the
plug and refill with new trans-hydraulic oil.
Figure 4-30 Lubrication Oil Oil Plug
