Notifier AUTOPULSE IQ-318 - Releasing Applications Details; Programming; Wiring; Connecting a Releasing Device to the Control Panel

42 IQ-318/E/C Installation Manual — P/N 52864:J3 9/29/15
Applications Releasing Applications
4.7.2 Programming
The control panel supports up to ten releasing software zones. You can map these zones to activate
Control Panel releasing outputs and FCM-1 modules. Program the FCM-1 module for the
appropriate type code according to the chart below:
For more information, refer to the IQ-318/E
Programming Manual.
4.7.3 Wiring
References to wiring diagrams for releasing applications:
4.7.4 Connecting a Releasing Device to the Control Panel
Use TB6 (NAC#4), TB7 (NAC#3), TB8 (NAC#2), or TB9 (NAC#1) on the control panel for
NAC⁄Releasing Circuits. The releasing circuit must be supervised and use listed, compatible
releasing devices; see Figure 4.8–Figure 4.10 (page 43).
Type Code: RELEASE CKT
• For use in UL applications.
• Do not use REL device at the solenoid.
• Cannot use power-limited wiring.
• Supervised for open circuit only.
• Supervised for power loss with power-
supervision relay.
Type Code: REL CKT ULC
• For use in UL or ULC applications.
• Requires REL device at solenoid.
• Power-limited wiring.
• Supervised for open circuit and shorts.
• Supervised for power loss with power-
supervision relay.
To connect Refer to
A releasing device to the control panel. Section 4.7.4 “Connecting a Releasing Device to the Control Panel”.
A releasing device to the FCM-1 Module. Section 4.7.5 “Connecting a Releasing Device to the FCM-1 Module”.
An NBG-12LRA Agent Release-Abort Station. Section 4.7.7 “Connecting an NBG-12LRA Agent Release-Abort Station”.
!
WARNING:
Do not enable the BACKUP option switch for any of the four Notification Appliance Circuits (NACs) if
they are used for releasing functions!
CPU-320-RELCONN1.wmf
REL-2.2K (Use with Type Code
Rel Ckt ULC, or see Circuit
Requirement 4.)
Compatible UL-listed
24 VDC releasing device
B+ NAC/Releasing output (source)
B– NAC/Releasing output (source)
A+ Class A (return for NAC only)
A– Class A (return for NAC only)
Note: See text below for circuit requirements.

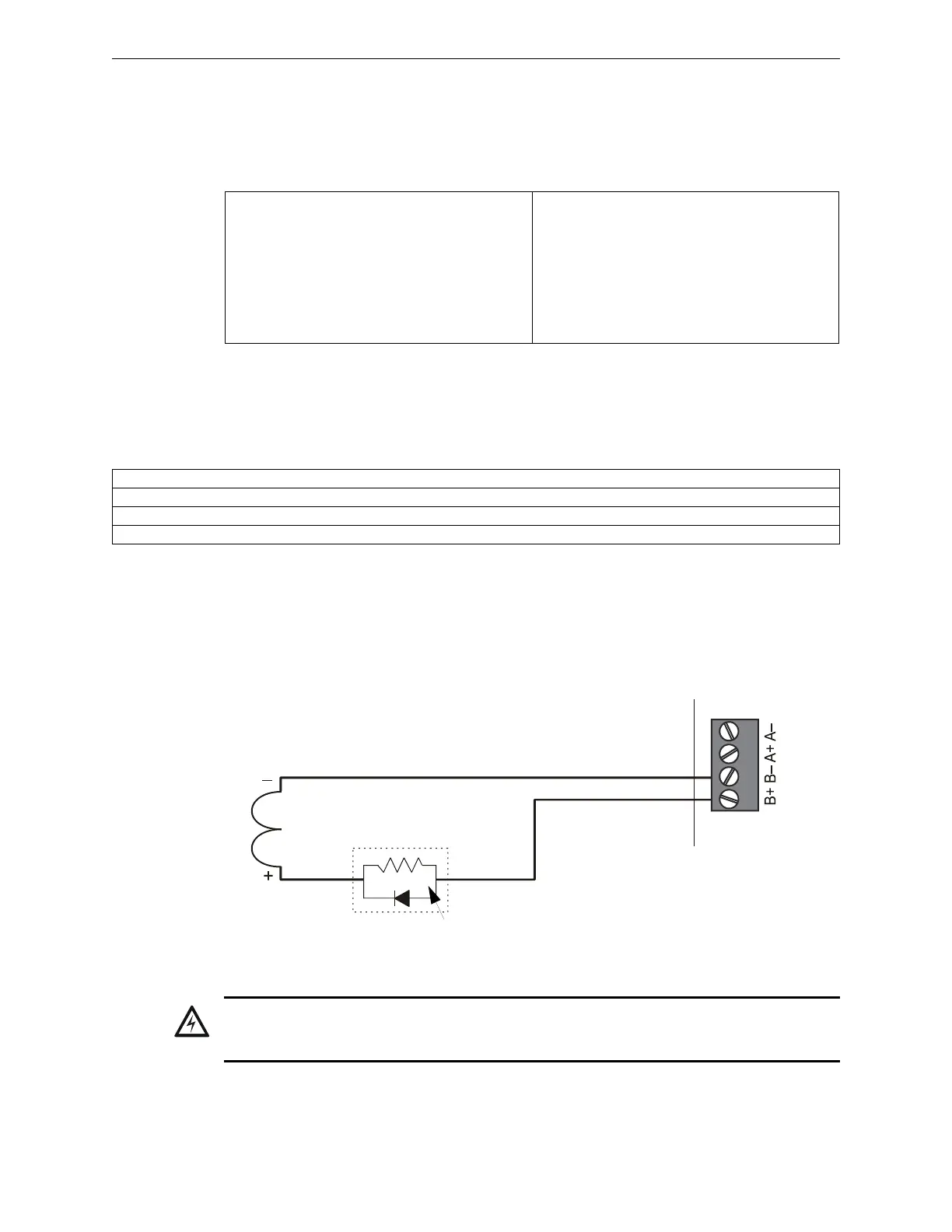

Figure 4.7 Typical Style 4 Connection of a Releasing Device to Control Panel
Control
Panel
