Notifier NBG-12LX User Manual

P/N 50997 REV.
REFER TO DOCUMENT
NUMBER 51015 RE V.
L OOP
ADDRESS



!
P/N 50997 REV.
REFER TO DOCUMENT
NUMBER 51015 REV.
LOOP
ADDRE SS



!
"
'
+
*
)
POST
DOOR KEYS INTO
BACKPLATE AT THIS POINT
POST
POST
HOLE
HOLE
Operation
Push in and pull down the handle where indicated to activate the station. The NBG-12LX manual fire alarm pull
station includes one SPST (Single Pole, Single Throw) N/O (normally-open) switch and the addressable module
located inside the station. Pushing in and pulling down the dual action handle causes the N/O alarm switch to close.
The word ACTIVATED is displayed on the top of the handle when the pull station handle is pushed in and pulled
down. The activated handle can not be reset without employing the key-lock reset. To reset the NBG-12LX pull
station: 1) Insert the key and turn counterclockwise, 2) Open the door until the handle moves back into the
NORMAL position, 3) Close the door and lock it. Closing the door automatically resets the switch to the
NORMAL position.
ACTIVATED
NBG-12LX PULL
STATION
CAUTION!
Install the Notifier NBG-12LX manual pull
station in accordance with these instructions,
applicable NFPA standards, national and
local Fire and Electrical codes and the re-
quirements of the AHJ (Authority Having
Jurisdiction). Regular testing of the devices
should be conducted in accordance with the
appropriate NFPA standards. Failure to fol-
low these directions may result in failure of
the device to report an alarm condition.
Notifier is not responsible for devices that
have been improperly installed, tested or
maintained.
For ADA compliance, if the clear floor
space only allows forward approach to an
object, the maximum forward reach height
allowed is 48 in. (1,220 mm). If the clear
floor space allows parallel approach by a
person in a wheelchair, the maximum side
reach height allowed is 54 in. (1,370 mm).
Document 51093 Revision A2 ECN 01-293 09/14/01
Note - Opening the pull station
door will not activate or deac-
tivate the alarm switch.
DOOR ATTACHMENT
DOOR MATED TO BACKPLATE
STRIP GAUGE
 !"
7 5 2 ) 6 """''
With the door and
backplate aligned and
keyed together, slide
the holes down onto
the posts.
Closing the door slightly
locks the door and
backplate together.
1) If semi-flush mounting, proceed to step 4.
2) Mount the backbox before wiring to the pull station.
3) Before mounting the station, pull all necessary wiring through the backbox and
optional trim ring.
4) Remove the correct amount of wire insulation. The pull station backplate is
molded with a strip gauge to measure the amount of insulation to be removed.

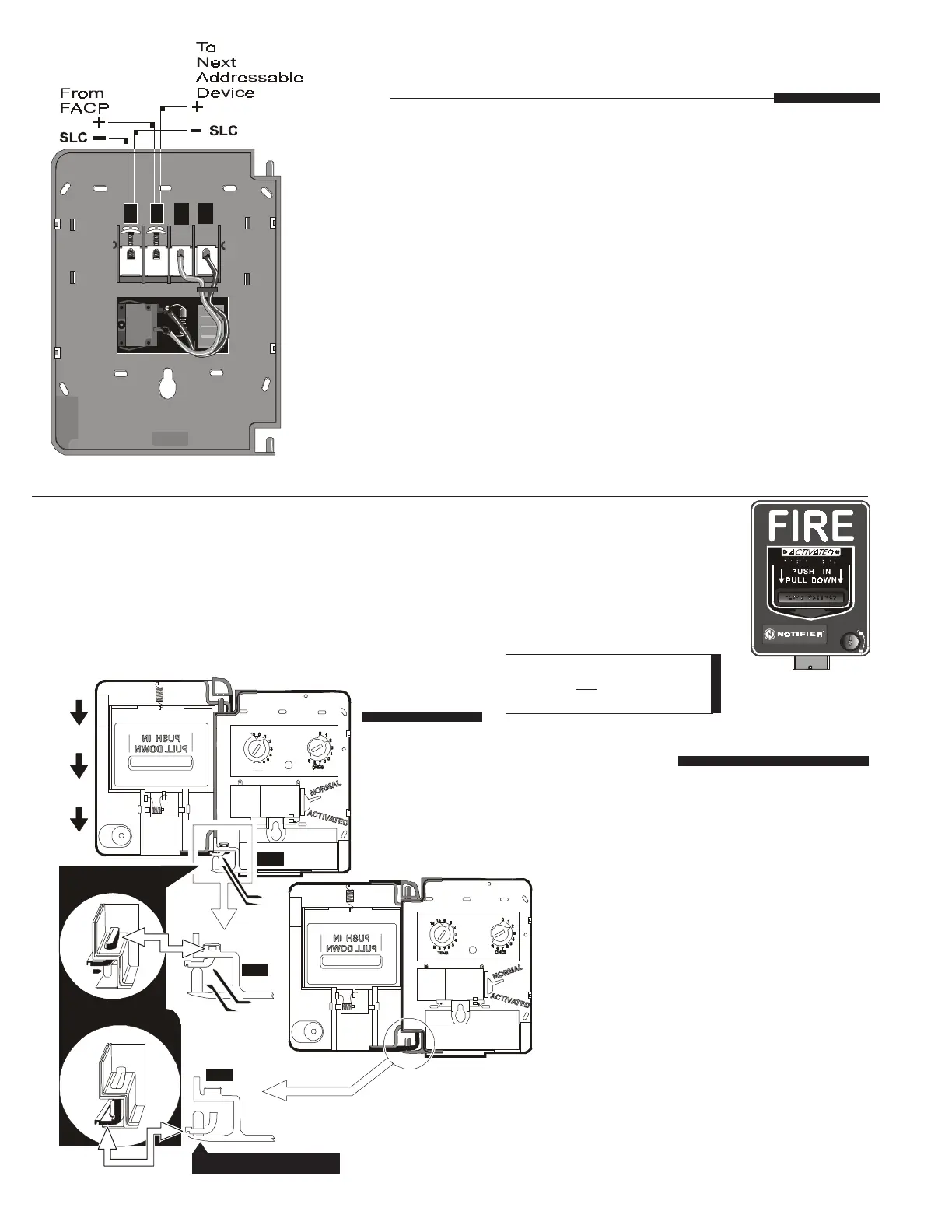

5) Connect the wiring from the addressable fire alarm control panels Signaling
Line Circuit (SLC) to Terminals 1(-) and 2(+) on the NBG-12LX addressable
pull station. SLC polarity is critical for this connection.
6) Connect the wiring going to the next device on the SLC to Terminals 1 and 2,
again being certain to observe polarity.
7) If using a single-gang or SB-10 box for mounting, open the pull station door;
align the mounting holes of the pull station backplate to the backbox and screw
into place. Tighten both top and bottom screws.
8) Set the address as described in Setting the NBG-12LX Address and write the
address in the space provided on the label.
9) Close and lock the pull station door.
Wiring
12LXWiring.cdr
12LXDoorMount.cdr
NBG12-Active.wmf
www.PDF-Zoo.com
firealarmresources.com

Notifier NBG-12LX Specifications

General

Material	Polycarbonate (PC)
Product color	Red
Connectivity technology	Wired
Input voltage	24 V
Power source type	DC
Operating temperature (T-T)	0 - 49 °C
Operating relative humidity (H-H)	10 - 93 %

Weight and Dimensions

Package weight	272.15 g
