II. Product Overview

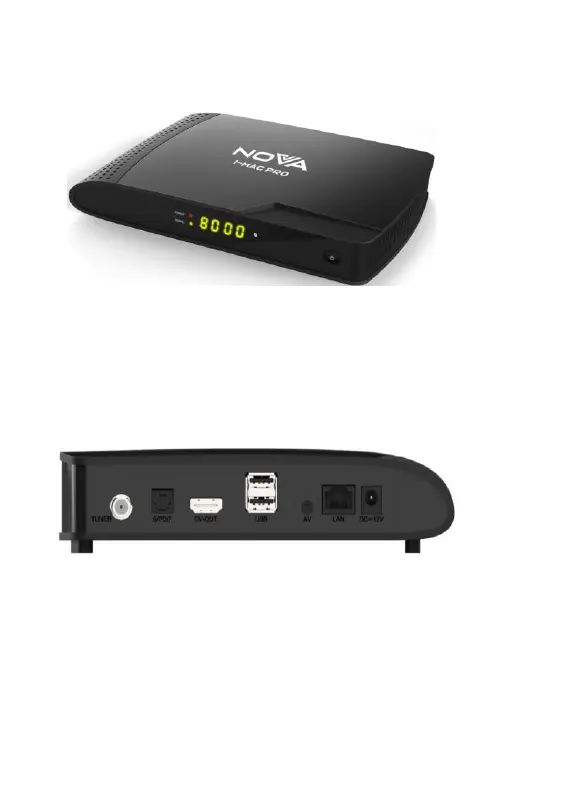

2.1 Front Panel
1.POWER: Switch between operation and standby modes.
2. POWER LED: Power Indicator.
3. SIGNAL LED: Signal Indicator.
4. DISPLAY:
It displays channel number. In standby mode it displays local
time.
2.2 Rear Panel
1. LNB IN: Connect the satellite antenna cable.
2. SPDIF: Digital Audio output (SPDIF).
3. DV-OUT: Connect to the TV using an HDMI cable.
4. USB2.0: Connect USB disk.
5. AV: Connect to the TV using an RCA cable.
6. LAN: Connect to the Ethernet using a Network cable.
7. DC-12V: Connect to the power.
